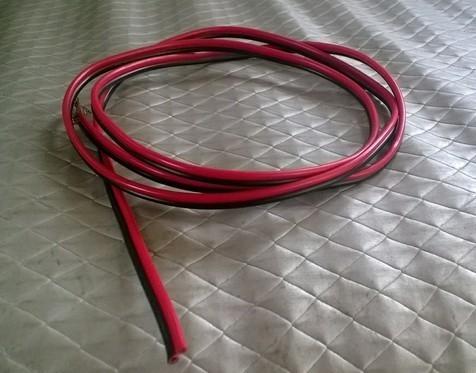

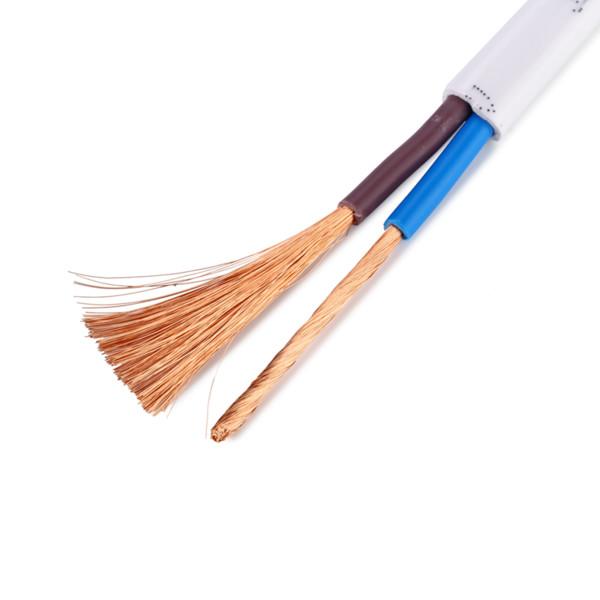

2 Core Flat Electrical Cable, ECHU Electrical Wire
2 Core Flat Electrical Cable, ECHU Electrical Wire
2 Core Flat Electrical Cable, ECHU Electrical Wire
2 Core Flat Electrical Cable, ECHU Electrical Wire
2 Core Flat Electrical Cable, ECHU Electrical Wire
2 Core Flat Electrical Cable, ECHU Electrical Wire
Specifications
Place of Origin :
Shanghai China
Brand Name :
ECHU
Certification :
CCC
Model Number :

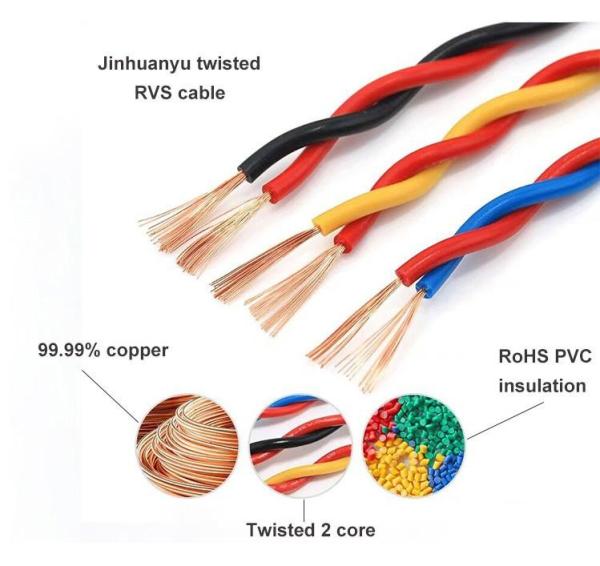

RVVB, BVVB, RVS
MOQ :
300M/1000M
Price :
USD0.215-USD3.258/M
Packaging Details :
100M/Roll or according to customer requirement
Delivery Time :
7 days after receiving payment
Payment Terms :
Western Union, T/T
Supply Ability :
100000km/week
RVB :
2*2.5
Insulation :
PVC
Jacket :
PVC
Voltage :
300/500V
Description

UL Approval, CCC Approval, CE Approval

Type: UL1015, UL1007, RV, BV, BVR, H05V-K/U/R, H07V-K/U/R
Description:
Related temperature: 105 degree
Rated voltage: 300V
Reference standard:
UL subject 758 & UL1581/CSA C22.2 No. 210.05
Tinned or bare, stranded or solid copper conductor
Insulation: PVC
Uniform insulation thickness to ensure easy stripping and cutting
Passed UL VW-1 flame test

Application:
For internal wiring of electronic and electrical equipment
Can be substituted by UL3386

Type Specification AWG Bare Copper Tinned copper Insulation Thickness mm Appromix Weight KG/KM Insluation O.D. mm cross section (mm2)
Conductor No. Conductor Dia Conductor No. Conductor Dia Down 　 Up
UL1015 26 7 0.16 7 0.16 0.76 7.1 2.0 ～ 2.2 0.14
UL1015 24 11 0.16 11 0.16 0.76 8.3 2.1 ～ 2.3 0.22
UL1015 22 17 0.16 17 0.16 0.76 10.0 2.3 ～ 2.5 0.34
UL1015 20 26 0.16 26 0.16 0.76 12.4 2.5 ～ 2.7 0.52
UL1015 18 41 0.16 41 0.16 0.76 16.2 2.7 ～ 2.9 0.82
UL1015 17 51 0.16 51 0.16 0.76 19.0 2.8 ～ 3.0 1.03
UL1015 16 26 0.254 27 0.25 0.76 22.6 3.0 ～ 3.2 1.32
UL1015 15 33 0.254 34 0.25 0.76 25.9 3.2 ～ 3.4 1.67
UL1015 14 41 0.254 43 0.25 0.76 31.5 3.4 ～ 3.6 2.0775
UL1015 13 52 0.254 54 0.25 0.76 36.5 3.6 ～ 3.8 2.63
UL1015 12 65 0.254 67 0.25 0.76 45.5 3.9 ～ 4.1 3.29
UL1015 11 82 0.254 85 0.25 0.76 52.6 4.3 ～ 4.5 4.16
UL1015 10 104 0.254 107 0.25 0.76 67.1 4.8 ～ 5.0 5.27
UL1015 9 94 0.30 94 0.30 0.76 89.0 5.3 ～ 5.5 6.64
UL1015 8 118 0.30 118 0.30 1.15 107.5 6.5 ～ 6.7 8.34
UL1015 7 147 0.30 147 0.30 1.15 140.3 7.0 ～ 7.2 10.39
UL1015 6 189 0.30 189 0.30 1.52 172.6 8.4 ～ 8.6 13.36
UL1015 5 238 0.30 238 0.30 1.52 207.6 9.1 ～ 9.3 16.82
UL1015 4 299 0.30 299 0.30 1.52 267.9 9.8 ～ 10.0 21.14
UL1015 3 378 0.30 378 0.30 1.52 325.6 10.7 ～ 11.1 26.72
UL1015 2 475 0.30 475 0.30 1.52 382.5 11.7 ～ 12.1 33.58
UL1015 1 600 0.30 600 0.30 2.03 495.9 13.8 ～ 14.2 42.41
UL1015 1/0 251 0.52 272 0.50 2.03 615.3 14.5 ～ 14.9 53.31
UL1015 2/0 317 0.52 343 0.50 2.03 750.0 15.8 ～ 16.4 67.32
UL1015 3/0 400 0.52 433 0.50 2.03 923.0 17.2 ～ 17.8 84.95
UL1015 4/0 505 0.52 546 0.50 2.03 1134.3 18.9 ～ 19.5 107.25
UL1015 250 598 0.52 647 0.50 2.41 1366.5 20.9 ～ 21.9 127.00
UL1015 300 716 0.52 774 0.50 2.41 1609.3 22.5 ～ 23.5 152.06
UL1015 350 833 0.52 901 0.50 2.41 1852.7 23.9 ～ 24.9 176.91
UL1015 400 955 0.52 1033 0.50 2.41 2104.3 25.3 ～ 26.3 202.82
UL1015 450 1073 0.52 1161 0.50 2.41 2344.7 26.5 ～ 27.5 227.88
UL1015 500 1191 0.52 1288 0.50 2.41 2584.8 27.7 ～ 28.7 252.94
UL1015 550 1313 0.52 1420 0.50 2.79 2898.6 29.6 ～ 30.6 278.84
