Specifications
Place of Origin :
Shanghai, China
Brand Name :
ECHU
Model Number :
EKM800 00
Certification :
CE
Price :
Negotiate
Packaging Details :
wooden reel
Delivery Time :
7-10 days after receiving advance payment
Payment Terms :
TT, Western Union
MOQ :
300M
Supply Ability :
100000km/week
Description

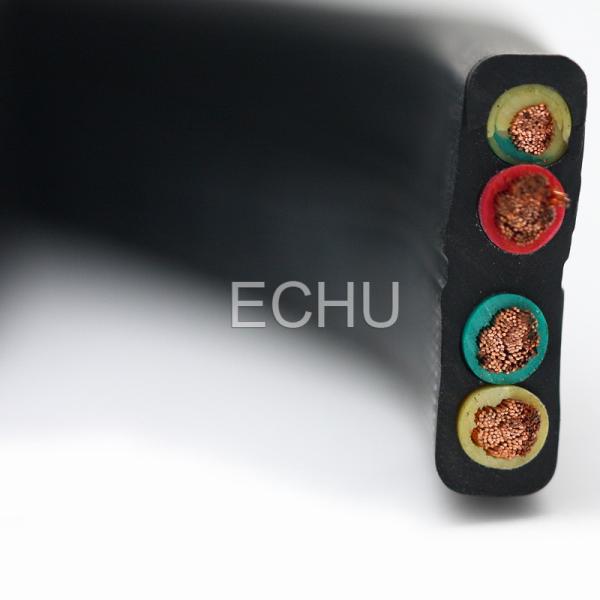

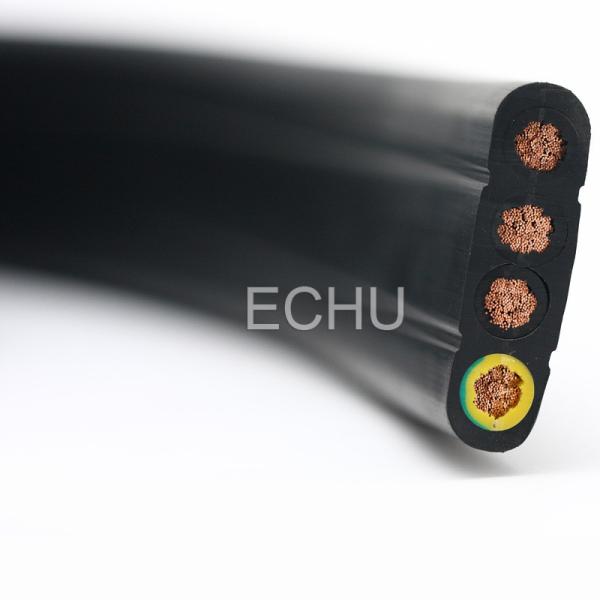

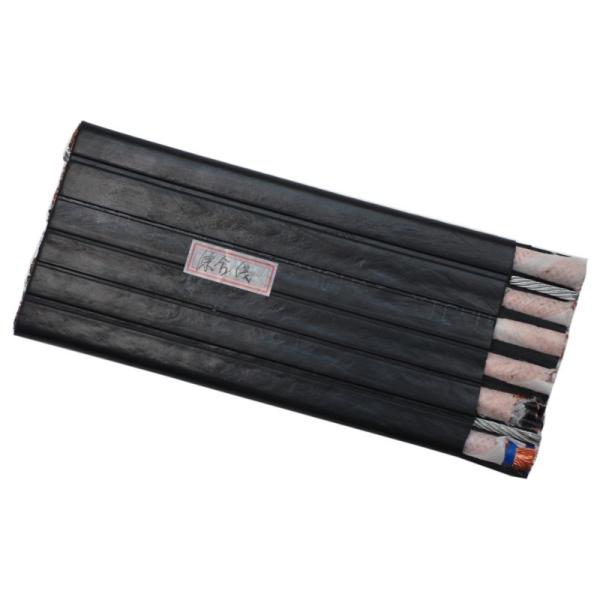

Flat cable, flexible PVC elevator cable
Conductor: Bare copper, VDE 0295 class 5
Insulation: Special PVC
Sheath: Special PVC
Flexible, wear -resistant, cold-resistant
Range of application:
As control and signal cable for elevator as well as moving machine parts, its bending radius is smaller compared with round cables due to the closely packed shielded cores or bundles. It can be installed in dry and damp rooms.
Properties:
The outer sheath is extensively resistant to oil and cooling liquid.
Standards: GB5023.6, IEC60227-6, EN 50214
Structure:
Conductor: Fine strands of bare copper wire,
Acc. To VDE0295 CLASS5
Insulation: Special PVC
Colour: Yellow, white, orangeg with black number with white digital coding
Bearing: Steel rope
Outer sheath: Flexible PVC, cold resistance, flame resistance
Colour: Grey(RAL7001)
Technical data:
Rated voltage: 300/500V
Test voltage: 2500V
Minimum bending radius: 0.3m<;;L<;;0.6M
Burning vertically test: GB/T18380.1-2001
IEC60332-1.1 993 test passed
Used under the nomal conditions. The temperature of conductor is lower than 70° C
Temperature range: -15° C to +70° C
TVVB (Parallel) free suspension length must not exceed 35 meters, and the lift speed 1.6m/s.
TVVB(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s.

Type Cores Cross Section Width (mm) Thickness(mm) Weight (kg/km) Cable Shape
TVVB 2 0.75 8.0±1.0 4.2±0.5 68 Parallel
TVVB 3 0.75 10.4±1.0 4.2±0.5 90 Parallel
TVVB 4 0.75 13.7±1.0 4.2±0.5 118 Parallel
TVVB 5 0.75 17.1±1.0 4.2±0.5 145 Parallel
TVVB 6 0.75 19.4±1.0 4.2±0.5 167 Parallel
TVVB 7 0.75 21.8±1.5 4.2±0.5 188 Parallel
TVVB 8 0.75 24.1±1.5 4.2±0.5 210 Parallel
TVVB 9 0.75 26.5±1.5 4.2±0.5 231 Parallel
TVVB 10 0.75 28.8±1.5 4.2±0.5 253 Parallel
TVVB 11 0.75 31.2±2.0 4.2±0.5 274 Parallel
TVVB 12 0.75 33.5±2.0 4.2±0.5 277 Parallel
TVVB 13 0.75 35.9±2.0 4.2±0.5 298 Parallel
TVVB 14 0.75 39.2±2.0 4.2±0.5 323 Parallel
TVVB 15 0.75 41.6±2.0 4.2±0.5 344 Parallel
TVVB 16 0.75 43.9±2.0 4.2±0.5 364 Parallel
TVVB 17 0.75 46.3±2.0 4.2±0.5 384 Parallel
TVVB 18 0.75 49.6±2.0 4.2±0.5 410 Parallel
TVVB 19 0.75 52.0±2.0 4.2±0.5 430 Parallel
TVVB 20 0.75 54.3±2.0 4.2±0.5 450 Parallel
TVVB 21 0.75 56.7±2.0 4.2±0.5 470 Parallel
TVVB 22 0.75 59.0±2.0 4.2±0.5 491 Parallel
TVVB 23 0.75 61.4±2.5 4.2±0.5 511 Parallel
TVVB 24 0.75 64.7±2.5 4.2±0.5 537 Parallel
TVVB 24 0.75 31.3±2.0 8.4±0.5 470 Bunch Core
TVVB 30 0.75 39.9±2.0 7.8±0.5 582 Bunch Core
TVVB 36 0.75 43.5±2.0 8.4±0.5 691 Bunch Core
TVVB 40 0.75 50.7±2.0 7.8±0.5 748 Bunch Core
TVVB 42 0.75 49.5±2.0 8.4±0.5 791 Bunch Core
TVVB 48 0.75 55.5±2.0 8.4±0.5 891 Bunch Core
TVVB 54 0.75 61.5±2.5 8.4±0.5 990 Bunch Core
TVVB 60 0.75 67.5±2.5 8.4±0.5 1090 Bunch Core
TVVB 66 0.75 73.5±2.5 8.4±0.5 1190 Bunch Core
