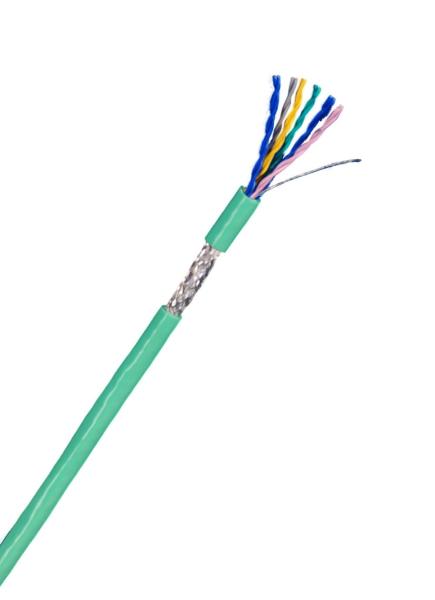

LIYCY(B) TP Shield Data Cable, ECHU Electrical Cable
LIYCY(B) TP Shield Data Cable, ECHU Electrical Cable
LIYCY(B) TP Shield Data Cable, ECHU Electrical Cable
LIYCY(B) TP Shield Data Cable, ECHU Electrical Cable
LIYCY(B) TP Shield Data Cable, ECHU Electrical Cable
LIYCY(B) TP Shield Data Cable, ECHU Electrical Cable
LIYCY(B) TP Shield Data Cable, ECHU Electrical Cable
LIYCY(B) TP Shield Data Cable, ECHU Electrical Cable
Specifications
Place of Origin :
Shanghai, China
Brand Name :
ECHU
Certification :
CE
MOQ :
300M
Price :
negotiatie
Packaging Details :
wooden reel/wooden box
Delivery Time :
7-10 days after receiving advance payment
Payment Terms :
T/T, Western Union
Supply Ability :
100000km/week
Description

LIYCY(B) TP PVC Data Cable

Product structure:

Conductor: Bare stranded copper, according to DIN VDE0812

Insulation : PVC, Y12, according to DIN VDE0207, Part 4

Color Code: According to DIN VDE47100 color marking cores

Cores structure: laying

Jacket Material: PVC, YM1 according to DIN VDE 0207 Part 5

Jacket Color: Grey (RAL7032), or other colors optional

Technical data:

Working voltage: <0.25 sqmm 350V

>0.25 sqmm 500V

Testing voltage: <0.25 sqmm 800V

>0.25 sqmm 1200V

Minimum bending radius:

Fix installation: 5XD

Movable installation: 10XD

Working temperature

Fix installation: -30C to +70C

Movable installation: -5C to +70C

Fire resistance: Meet with IE60332-1-2+EN60332-1-2

Oil resistance: engine oil, gear oil, lubricant oil etc.

Characteristic and Compliance:

Flexibility, small outside diameter, small bending radius

Typical applications:

For electronic, connected to the control panel and the equipment, low voltage switchboard equipment and communication technology
