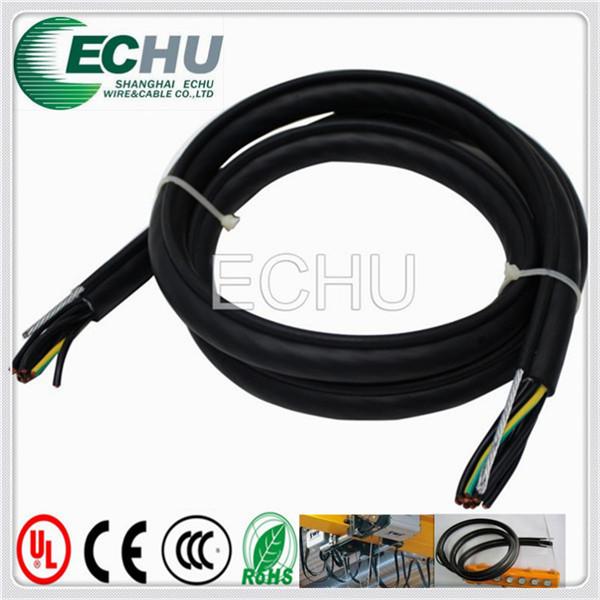

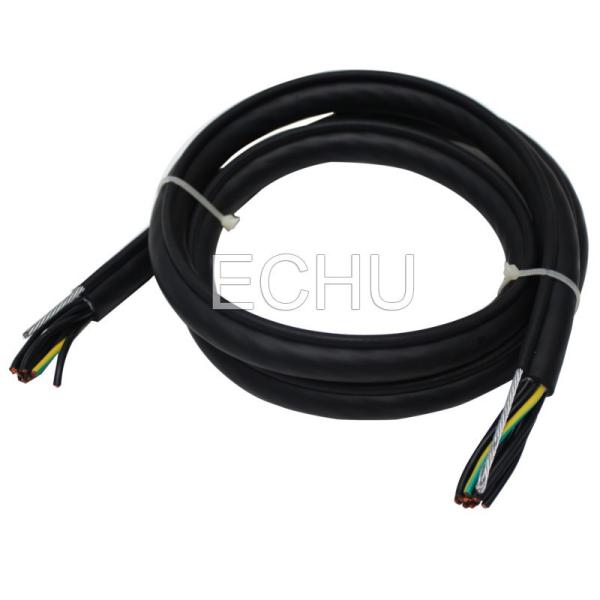

1S LIFT CABLE, PENDANT TRAVELING CABLE, CRANE HANDLING CABLE
1S LIFT CABLE, PENDANT TRAVELING CABLE, CRANE HANDLING CABLE
1S LIFT CABLE, PENDANT TRAVELING CABLE, CRANE HANDLING CABLE
1S LIFT CABLE, PENDANT TRAVELING CABLE, CRANE HANDLING CABLE
1S LIFT CABLE, PENDANT TRAVELING CABLE, CRANE HANDLING CABLE
1S LIFT CABLE, PENDANT TRAVELING CABLE, CRANE HANDLING CABLE
1S LIFT CABLE, PENDANT TRAVELING CABLE, CRANE HANDLING CABLE
1S LIFT CABLE, PENDANT TRAVELING CABLE, CRANE HANDLING CABLE
Specifications
Place of Origin :
Shanghai, China
Brand Name :
ECHU or OEM
Certification :
ISO, CCC
Model Number :
EKM79000
MOQ :
300m
Price :
USD0.205-18.358/M
Packaging Details :
Wooden reel
Delivery Time :
7 days after receiving deposit
Payment Terms :
T/T, Western Union
Supply Ability :
10000km/week
Description

1S LIFT CABLE,

Applications:

It is the control cable being used for cranes and other appliances in dry or wet environment (indoor). For its special flexibility, it also can be used for non-continous installation or fixation, but can not work as elevator cables. Just insulated cable rope among cores functions as tensile resistance, There is non-woven fabric to release impact between cores and sheath.

Properties:

In the condition of ultra-height, we recommend to use cable with 2 steelswhose broken pulling force reaches 104.KN and the height 150m.

For the adoption of modified PVC sheath, the product has an excellent properties and safety service.

Structure:

Conductor: Fine strands of oxygen-free copper wire.

acc. to VDE0295, class5

Color: varous colour cores with number acc. to JISC3306

black with white number and green/yellow acc. to IEC227

Inner liner: non-woven fabric wrapping to release impact

Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.

Outer sheath: special PVC, bkack (RAL9005)

Technical Data:

Rated voltage: ≤1.5mm 300/500v >1.5mm: 450/750v

Test voltage: ≤1.5mm 300/500v >1.5mm: 3000v

Temperature range: -15°c to +70°c

Bending radius: 20 x outer diameter

Type Cores Specification Steel No. Steel Dia mm Weight KG/KM O.D. MM
RVV(2G) 2C 1.5 2 1.3 188 17.4
RVV(2G) 3C 1.5 2 1.3 206 17.9
RVV(2G) 4C 1.5 2 1.3 237 18.8
RVV(2G) 5C 1.5 2 1.3 273 19.8
RVV(2G) 6C 1.5 2 1.3 312 20.9
RVV(2G) 7C 1.5 2 2.5 400 26.3
RVV(2G) 8C 1.5 2 2.5 448 27.7
RVV(2G) 9C 1.5 2 2.5 497 28.7
RVV(2G) 10C 1.5 2 2.5 531 28.7
RVV(2G) 11C 1.5 2 2.5 569 29.3
RVV(2G) 12C 1.5 2 2.5 576 29.3
RVV(2G) 13C 1.5 2 2.5 627 30.2
RVV(2G) 14C 1.5 2 2.5 633 30.2
RVV(2G) 15C 1.5 2 2.5 690 31.2
RVV(2G) 16C 1.5 2 2.5 696 31.2
RVV(2G) 17C 1.5 2 2.5 757 32.2
RVV(2G) 18C 1.5 2 2.5 763 32.2
RVV(2G) 19C 1.5 2 2.5 782 32.2
RVV(2G) 20C 1.5 2 2.5 810 32.7
RVV(2G) 21C 1.5 2 2.5 851 33.2
RVV(2G) 22C 1.5 2 2.5 965 34.6
