Specifications
Place of Origin :
Shanghai, China
Brand Name :
ECHU or OEM
Certification :
CCC, CE
MOQ :
300M
Price :
Depends on qualtity
Packaging Details :
wooden drum, Splint Reel
Delivery Time :
7 days after receiving advance payment
Payment Terms :
T/T, Western Union
Model Number :
TVVBG-TV
Supply Ability :
100000km/week
TVVB2G :
2Cx0.75sqmm+TV
Type :
TVVB2G
Voltage :
300/500V
Description

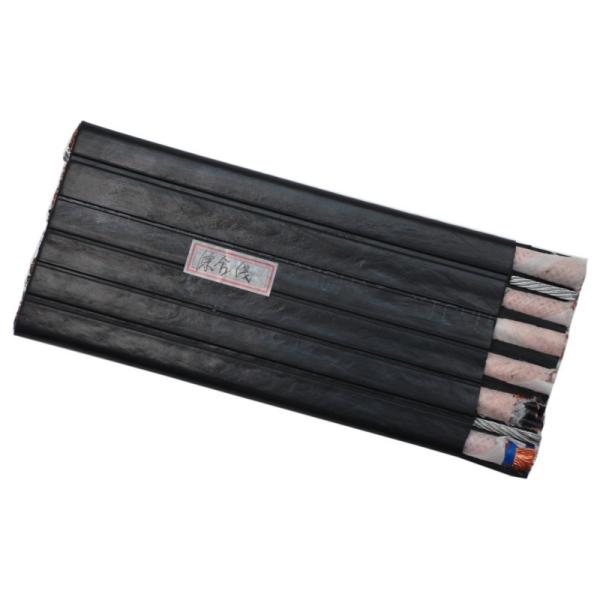

Flat Elevator Cable with Communication Cable

Flat Travel Cable with Video Cable CCTV Cable for Elevator

PRODUCT STANDARD
GB5023.6-1997
PRODUCTION APPLICATION
Elevator suspension flat travel cable for internal and panoramic elevators.
RATED VOLTAGE
This product is fit for the rated 300/500V and below.
WORK TEMPERATURE:
Used under the normal conditions, the conductor' s temperature is at 70. The cable is available at -15 to 40 environment.
OTHER ATTENTIONS
Without steelFree suspension length not exceed 80 meters, and the lift speed must not exceed 4m/s.
With steelFree suspension length exceed 80 meters, and the lift speed must not exceed 10m/s.

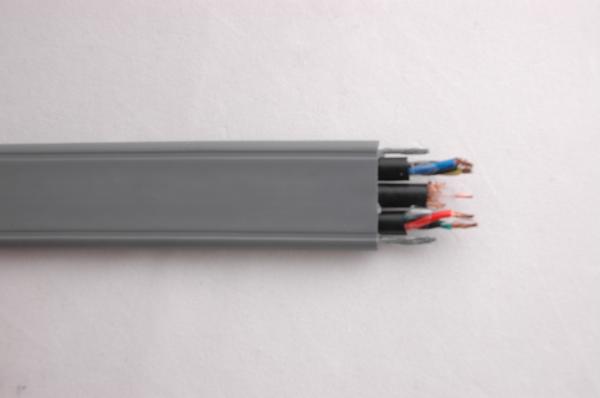

Flat traveling cable with 75ohm cable

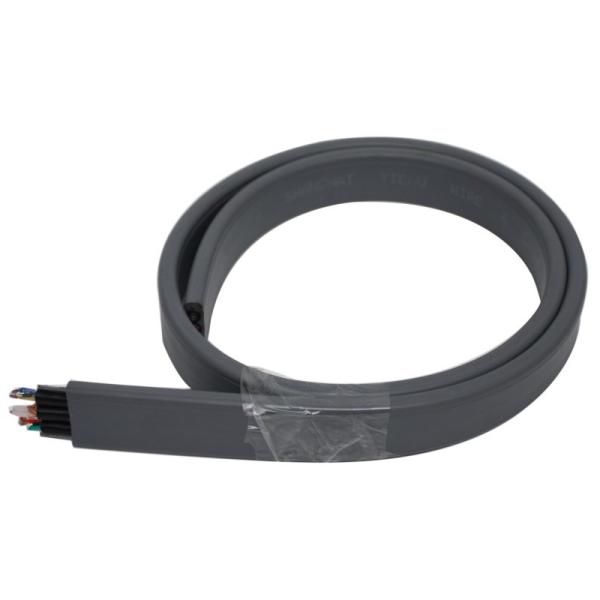

Flat traveling cable with video cable

Flat Elevator Cable with TV Cable ECHU Traveling Cable, Flat Elevator Cable with Cat6

Type Specification Outside Diameter(mm)
TVVB2G 75-5+2X1.0 22.9±1.0×9.3±0.5
TVVB2G 75-5+2X0.75 22.9±1.0×9.3±0.5
TVVB1G 75-3+2X0.75 17.0±1.0×6.5±0.5
TVVB2G SYV75-5-2 13.3±1.0×7.1±0.5
SYV2G 75-5-2 8.1±0.5×3.7±0.2


We also can design according to your requirement
