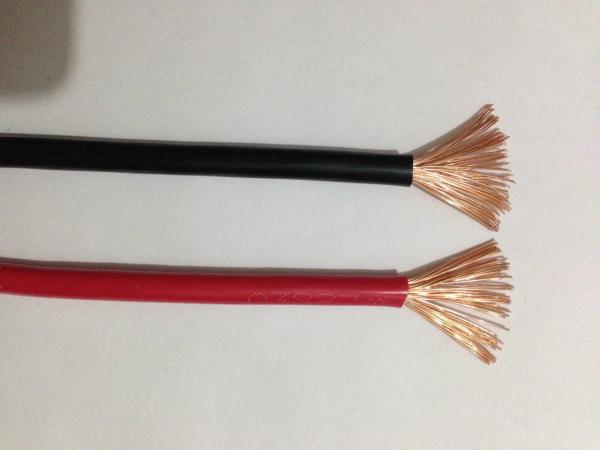

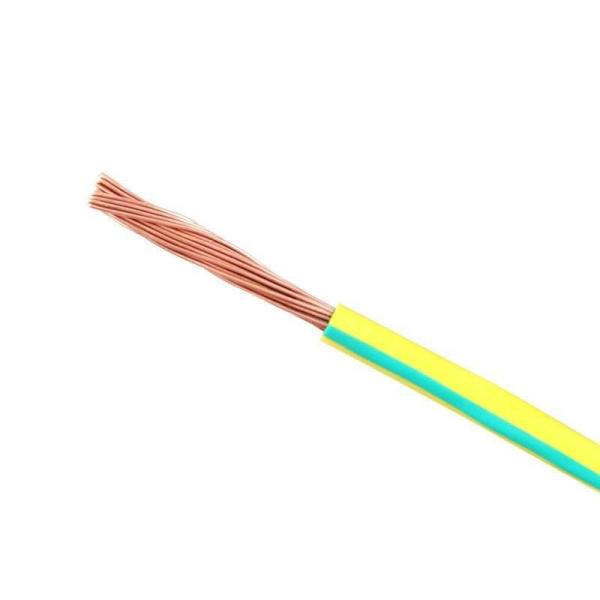

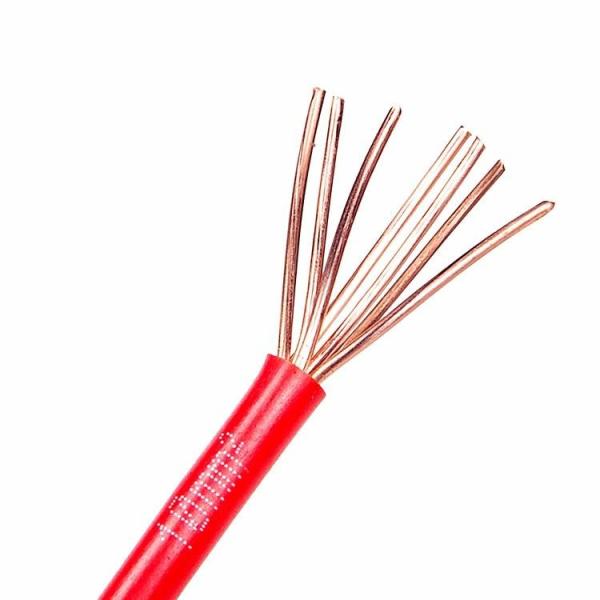

ROHS PVC Electrical Earth Cable UL1007 300V with UL certificate E312831
ROHS PVC Electrical Earth Cable UL1007 300V with UL certificate E312831
ROHS PVC Electrical Earth Cable UL1007 300V with UL certificate E312831
ROHS PVC Electrical Earth Cable UL1007 300V with UL certificate E312831
ROHS PVC Electrical Earth Cable UL1007 300V with UL certificate E312831
ROHS PVC Electrical Earth Cable UL1007 300V with UL certificate E312831
ROHS PVC Electrical Earth Cable UL1007 300V with UL certificate E312831
ROHS PVC Electrical Earth Cable UL1007 300V with UL certificate E312831
Specifications
Brand Name :
ECHU
Model Number :
EKF50202
Certification :
UL
Place of Origin :
Shanghai China
MOQ :
305M
Price :
USD0.886-USD1.452/M
Payment Terms :
Western Union, T/T
Supply Ability :
100000km/week
Delivery Time :
7 days after receiving payment
Packaging Details :
305m/Roll
Color :
Red, yellow, black, green....
Insulation :
PVC
Conductor :
Stranded Copper
Voltage :
300V
Temperature :
80℃
Type :
UL1007
Description

UL1007 Electrical Wire, UL certificate: E312831


For internal wiring of electronic and electrical equipment
Can be substituted by UL3386

Type SizeAWG Conductor Weight KG/KM Inslulation Thickness mm OD mm
Down limited Up Limtied
UL1007 bare copper wire 26 7 0.16 3.55 0.40 1.28 ～ 1.48
UL1007 bare copper wire 24 11 0.16 4.58 0.40 1.41 ～ 1.61
UL1007 bare copper wire 22 17 0.16 6.03 0.40 1.56 ～ 1.76
UL1007 bare copper wire 20 26 0.16 8.09 0.40 1.74 ～ 1.94
UL1007 bare copper wire 18 41 0.16 11.38 0.40 1.98 ～ 2.18
UL1007 bare copper wire 16 26 0.254 17.18 0.40 2.36 ～ 2.56
Type SizeAWG Conductor Weight KG/KM Inslulation Thickness mm OD mm
Down limited Up Limtied
UL1007 tinned copper wire 26 7 0.16 3.55 0.4 1.28 ～ 1.48
UL1007 tinned copper wire 24 11 0.16 4.58 0.4 1.41 ～ 1.61
UL1007 tinned copper wire 22 17 0.16 6.03 0.4 1.56 ～ 1.76
UL1007 tinned copper wire 20 26 0.16 8.09 0.4 1.74 ～ 1.94
UL1007 tinned copper wire 18 41 0.16 11.38 0.4 1.98 ～ 2.18
UL1007 tinned copper wire 16 27 0.25 17.18 0.4 2.36 ～ 2.56
