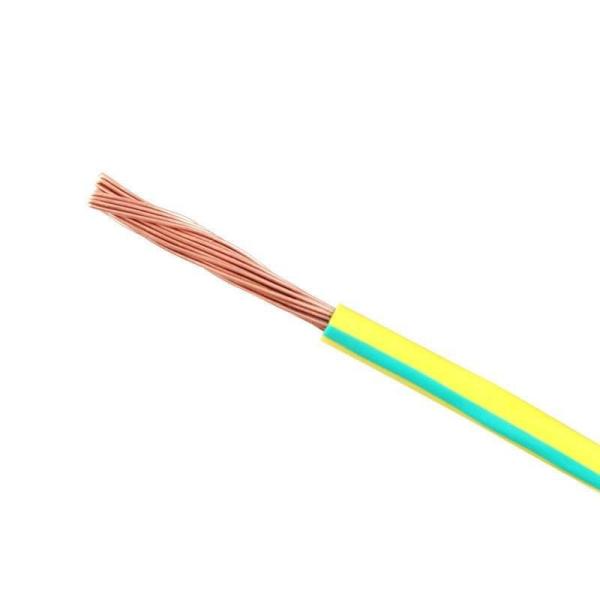

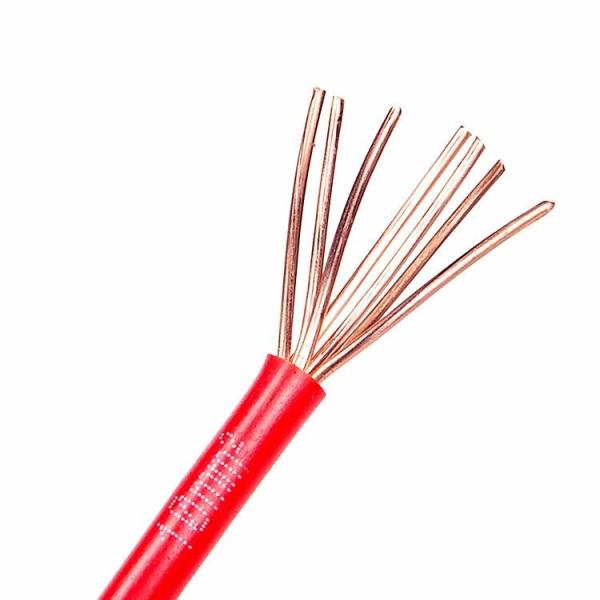

ECHU Cable UL1015 Electrical Cables 18AWG 105C 600V stranded copper Cable E312831
ECHU Cable UL1015 Electrical Cables 18AWG 105C 600V stranded copper Cable E312831
ECHU Cable UL1015 Electrical Cables 18AWG 105C 600V stranded copper Cable E312831
ECHU Cable UL1015 Electrical Cables 18AWG 105C 600V stranded copper Cable E312831
ECHU Cable UL1015 Electrical Cables 18AWG 105C 600V stranded copper Cable E312831
ECHU Cable UL1015 Electrical Cables 18AWG 105C 600V stranded copper Cable E312831
ECHU Cable UL1015 Electrical Cables 18AWG 105C 600V stranded copper Cable E312831
ECHU Cable UL1015 Electrical Cables 18AWG 105C 600V stranded copper Cable E312831
ECHU Cable UL1015 Electrical Cables 18AWG 105C 600V stranded copper Cable E312831
ECHU Cable UL1015 Electrical Cables 18AWG 105C 600V stranded copper Cable E312831
Specifications
Brand Name :
ECHU
Model Number :
EKF50202
Certification :
UL
Place of Origin :
Shanghai China
MOQ :
305M
Price :
USD0.105-USD0.506/M
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100000km/week
Delivery Time :
7 days after receiving payment
Packaging Details :
100M/Roll or according to customer requirement

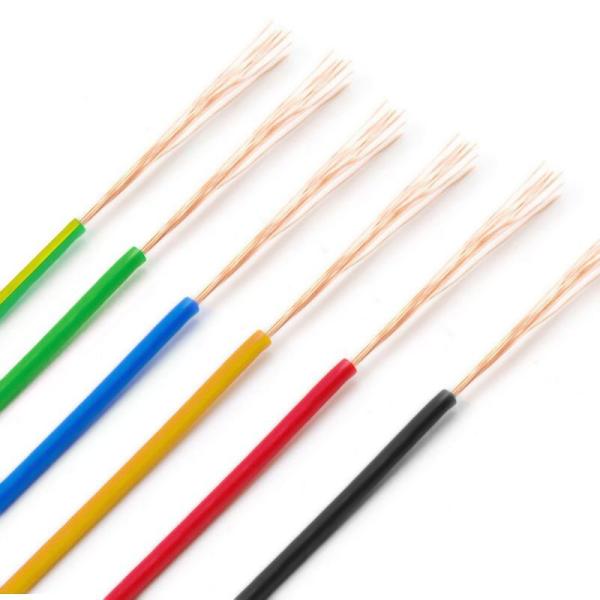

Color :
yellow, green, yellow/green, black, white.....
Type :
UL1015
Insulation :
PVC
Conductor :
Stranded Copper
Certficate :
UL
UL No. :
E312831
Brand :
ECHU
Description

UL Approval
Description:
Related temperature: 105 degree
Rated voltage: 300V
Reference standard:
UL subject 758 & UL1581/CSA C22.2 No. 210.05

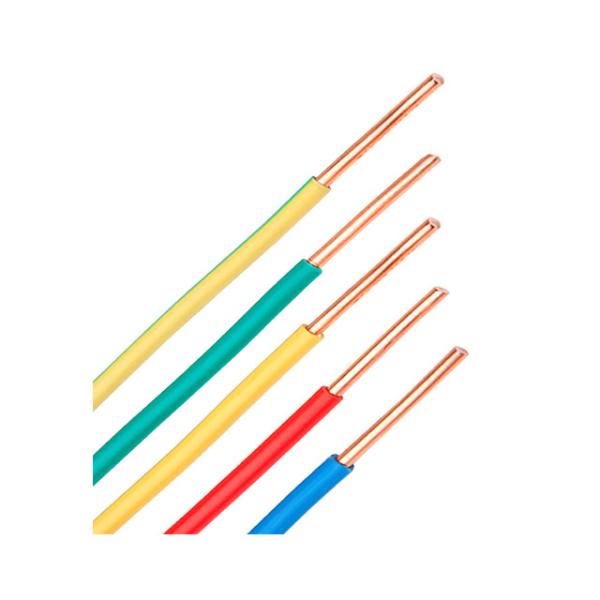

Tinned or bare, stranded or solid copper conductor
Insulation: PVC
Uniform insulation thickness to ensure easy stripping and cutting
Passed UL VW-1 flame test

Application:
For internal wiring of electronic and electrical equipment
Can be substituted by UL3386

Type Specification AWG Bare Copper Tinned copper Insulation Thickness mm Appromix Weight KG/KM Insluation O.D. mm cross section (mm2)
Conductor No. Conductor Dia Conductor No. Conductor Dia Down 　 Up
UL1015 26 7 0.16 7 0.16 0.76 7.1 2.0 ～ 2.2 0.14
UL1015 24 11 0.16 11 0.16 0.76 8.3 2.1 ～ 2.3 0.22
UL1015 22 17 0.16 17 0.16 0.76 10.0 2.3 ～ 2.5 0.34
UL1015 20 26 0.16 26 0.16 0.76 12.4 2.5 ～ 2.7 0.52
UL1015 18 41 0.16 41 0.16 0.76 16.2 2.7 ～ 2.9 0.82
UL1015 17 51 0.16 51 0.16 0.76 19.0 2.8 ～ 3.0 1.03
UL1015 16 26 0.254 27 0.25 0.76 22.6 3.0 ～ 3.2 1.32
UL1015 15 33 0.254 34 0.25 0.76 25.9 3.2 ～ 3.4 1.67
UL1015 14 41 0.254 43 0.25 0.76 31.5 3.4 ～ 3.6 2.0775
UL1015 13 52 0.254 54 0.25 0.76 36.5 3.6 ～ 3.8 2.63
UL1015 12 65 0.254 67 0.25 0.76 45.5 3.9 ～ 4.1 3.29
UL1015 11 82 0.254 85 0.25 0.76 52.6 4.3 ～ 4.5 4.16
UL1015 10 104 0.254 107 0.25 0.76 67.1 4.8 ～ 5.0 5.27
UL1015 9 94 0.30 94 0.30 0.76 89.0 5.3 ～ 5.5 6.64
UL1015 8 118 0.30 118 0.30 1.15 107.5 6.5 ～ 6.7 8.34
UL1015 7 147 0.30 147 0.30 1.15 140.3 7.0 ～ 7.2 10.39
UL1015 6 189 0.30 189 0.30 1.52 172.6 8.4 ～ 8.6 13.36
UL1015 5 238 0.30 238 0.30 1.52 207.6 9.1 ～ 9.3 16.82
UL1015 4 299 0.30 299 0.30 1.52 267.9 9.8 ～ 10.0 21.14
UL1015 3 378 0.30 378 0.30 1.52 325.6 10.7 ～ 11.1 26.72
UL1015 2 475 0.30 475 0.30 1.52 382.5 11.7 ～ 12.1 33.58
UL1015 1 600 0.30 600 0.30 2.03 495.9 13.8 ～ 14.2 42.41
UL1015 1/0 251 0.52 272 0.50 2.03 615.3 14.5 ～ 14.9 53.31
UL1015 2/0 317 0.52 343 0.50 2.03 750.0 15.8 ～ 16.4 67.32
UL1015 3/0 400 0.52 433 0.50 2.03 923.0 17.2 ～ 17.8 84.95
UL1015 4/0 505 0.52 546 0.50 2.03 1134.3 18.9 ～ 19.5 107.25
UL1015 250 598 0.52 647 0.50 2.41 1366.5 20.9 ～ 21.9 127.00
UL1015 300 716 0.52 774 0.50 2.41 1609.3 22.5 ～ 23.5 152.06
UL1015 350 833 0.52 901 0.50 2.41 1852.7 23.9 ～ 24.9 176.91
UL1015 400 955 0.52 1033 0.50 2.41 2104.3 25.3 ～ 26.3 202.82
UL1015 450 1073 0.52 1161 0.50 2.41 2344.7 26.5 ～ 27.5 227.88
UL1015 500 1191 0.52 1288 0.50 2.41 2584.8 27.7 ～ 28.7 252.94
UL1015 550 1313 0.52 1420 0.50 2.79 2898.6 29.6 ～ 30.6 278.84
