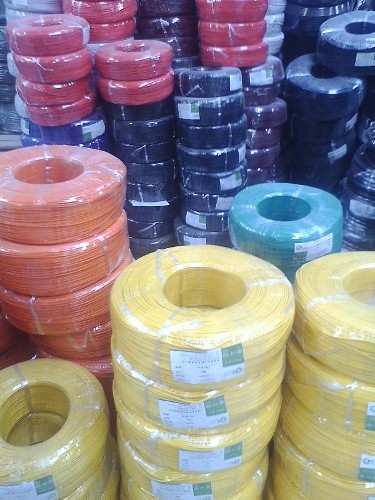

UL1007 20AWG electrical wire electrical cable ECHU Cable E312831
UL1007 20AWG electrical wire electrical cable ECHU Cable E312831
UL1007 20AWG electrical wire electrical cable ECHU Cable E312831
UL1007 20AWG electrical wire electrical cable ECHU Cable E312831
UL1007 20AWG electrical wire electrical cable ECHU Cable E312831
UL1007 20AWG electrical wire electrical cable ECHU Cable E312831
Specifications
Brand Name :
ECHU
Model Number :
UL1007
Certification :
UL
Place of Origin :
CHINA
MOQ :
305m/Roll
Price :
USD0.035-USD0.217/M
Payment Terms :
T/T, Western Union
Supply Ability :
100000km/week
Delivery Time :
7 days
Packaging Details :
wooden boxes
Insulation :
PVC
Conductor :
Stranded Copper
Type :
UL1007
Voltage :
300V
Temperature :
105℃
Description

UL Approval: E312831, ECHU Cable
Description:
Related temperature: 80 degree
Rated voltage: 300V
Reference standard:
UL subject 758 & UL1581/CSA C22.2 No. 210.05
Tinned or bare, stranded or solid copper conductor
Insulation: PVC
Uniform insulation thickness to ensure easy stripping and cutting
Passed UL VW-1 flame test
Application:
For internal wiring of electronic and electrical equipment
Can be substituted by UL10982 & UL3385

Type SizeAWG Conductor Weight KG/KM Inslulation Thickness mm OD mm
Down limited Up Limtied
UL1007 bare copper wire 26 7 0.16 3.55 0.40 1.28 ～ 1.48
UL1007 bare copper wire 24 11 0.16 4.58 0.40 1.41 ～ 1.61
UL1007 bare copper wire 22 17 0.16 6.03 0.40 1.56 ～ 1.76
UL1007 bare copper wire 20 26 0.16 8.09 0.40 1.74 ～ 1.94
UL1007 bare copper wire 18 41 0.16 11.38 0.40 1.98 ～ 2.18
UL1007 bare copper wire 16 26 0.254 17.18 0.40 2.36 ～ 2.56
Type SizeAWG Conductor Weight KG/KM Inslulation Thickness mm OD mm
Down limited Up Limtied
UL1007 tinned copper wire 26 7 0.16 3.55 0.4 1.28 ～ 1.48
UL1007 tinned copper wire 24 11 0.16 4.58 0.4 1.41 ～ 1.61
UL1007 tinned copper wire 22 17 0.16 6.03 0.4 1.56 ～ 1.76
UL1007 tinned copper wire 20 26 0.16 8.09 0.4 1.74 ～ 1.94
UL1007 tinned copper wire 18 41 0.16 11.38 0.4 1.98 ～ 2.18
UL1007 tinned copper wire 16 27 0.25 17.18 0.4 2.36 ～ 2.56



UL1007 20AWG electrical wire electrical cable ECHU Cable E312831
