E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color
E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color
E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color
E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color
E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color
E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color
E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color
E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color
E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color
E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color
Specifications
Brand Name :
ECHU
Model Number :
UL1283
Certification :
UL
Place of Origin :
Shanghai China
MOQ :
305M
Price :
USD0.916-USD1.66/M
Payment Terms :
T/T, Western Union
Supply Ability :
100000km/week
Delivery Time :
7 days after receiving payment

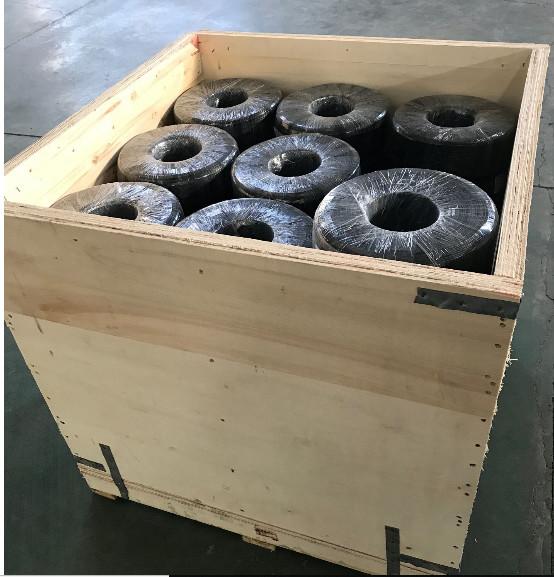

Packaging Details :
100M/Roll or according to customer requirement
Color :
yellow, green, yellow/green, black, white.....
Insulation :
PVC
Voltage :
600V
Description

E312831 UL Certified ROHS PVC Double Insulation 6AWG 600V UL1283 105℃ Electrical Wire in Black color

Production description:

UL CERT.:E312831Single Conductor Single Core Flexible Wire UL1283 PVC Insulated 8 AWG,7AWG,6AWG,5AWG,4AWG,3AWG,2AWG

Construction
Conductor :bare copper or tinned copper conductor
Insulation: PVC
Standards
International: UL758 , UL1581
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:105℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil
Voltage withstand test:AC 2.5kV/1min

E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color

E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color

E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color

E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color

E312831 ECHU Cable UL1283 Electrical Cables 3AWG 105℃ 600V with Yellow/Green Color

TYPE Spec. AWG Bare Copper Tinned Copper Insulation Thickness mm Weight KG/KM
Conductor No. Conductor Dia. Conductor No. Conductor Dia.
UL1283 8 118 0.3 118 0.30 1.52 119.5
UL1283 7 147 0.3 147 0.30 1.52 141.8
UL1283 6 189 0.3 189 0.30 1.52 173.4
UL1283 5 238 0.3 238 0.30 1.52 209.7
UL1283 4 299 0.3 299 0.30 1.52 254.3
UL1283 3 378 0.3 378 0.30 1.52 311.2
UL1283 2 475 0.3 475 0.30 1.52 380.2
