Fuel Filter Manufacturing Equipment , CAV Paper Coiling Machine For Glue Injection
Fuel Filter Manufacturing Equipment , CAV Paper Coiling Machine For Glue Injection
Specifications
Brand Name :
PLM
Model Number :
PLPQ-120
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD 11400/SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 SETS PER 30 DAYS
Delivery Time :
20 DAYS AFTER DEPOSIT
Packaging Details :
EXPORT STANDARD WOOD CARTON
Product name :
Fuel Filter CAV Paper Coiling Machine Oil Filter Making Machine
Production capability :
80~180 pcs/h
Adjustable coil width :
70~120mm
Adjustable coil diameter :
Φ50~Φ130mm
Applicable industry :
Manufacturing Plant
Core components :
Engine
Warranty :
1 year
Video factory inspection :
Provided
Description

Fuel Filter CAV Paper Coiling Machine Oil Filter Making Machine

Fuel Filter CAV Paper Coiling Machine Oil Filter Making Machine General description

It is technically suitable for shaping the CAV coil paper of filter element.

Fuel Filter CAV Paper Coiling Machine Oil Filter Making Machine Features

1 Can freely adjust the rolling speed to appropriate tightness according to the size of coil diameter.
2 Through managing the three-stage counter and approach switch to obtain diversified coil diameter.
3 Melted quickly,the glue delivered quantity can be easily controlled by frequency converter,and the hose and nozzle control the temperature independently.
4 Throgh PLC program,injection cylinder controls the glue injected in the middle of,and left or right of the paper tube,so as to ensure no leakage in paper core.
5 Have the function of time heat the hot melt unit automatically,and so time is saved.
6 This machine can corrugate double layers of fuel filter paper.
7 All the electric elements use advanced products from abroad and have a long working time.

Fuel Filter CAV Paper Coiling Machine Oil Filter Making Machine Specification

Production capability

 80~180 pcs/h

Adjustable coil diameter

 Φ50~Φ130mm

Adjustable coil width

 70~120mm

The capacity of hot melt unit

 10kg

Working pressure

 0.6Mpa

Supply voltage

 220V/50HZ
M/C weight 700kg
Size of the main machine

2463×1219×2033mm(L×W×H)

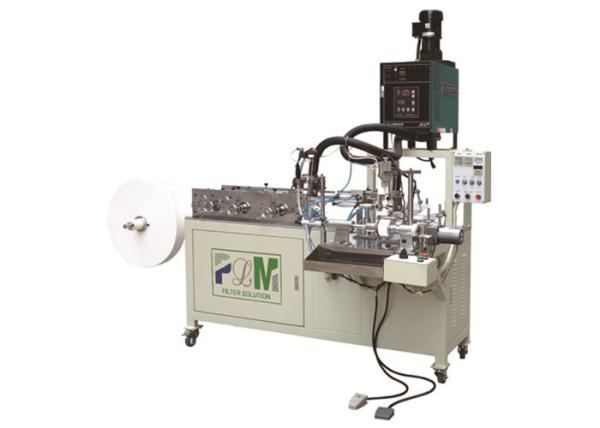

Fuel Filter CAV Paper Coiling Machine Oil Filter Making Machine Photo

Fuel Filter Manufacturing Equipment , CAV Paper Coiling Machine For Glue InjectionFuel Filter Manufacturing Equipment , CAV Paper Coiling Machine For Glue Injection
