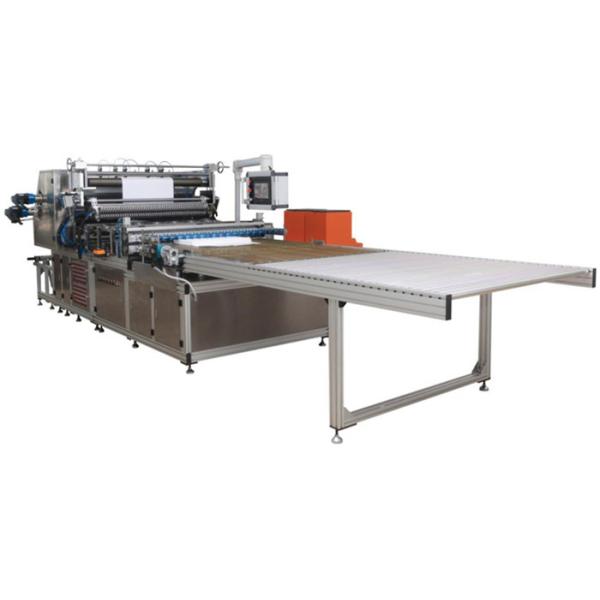

Auto Rotary Pleating Machine HEPA Filter Mini Paper Pleating Production Line
Auto Rotary Pleating Machine HEPA Filter Mini Paper Pleating Production Line
Auto Rotary Pleating Machine HEPA Filter Mini Paper Pleating Production Line
Auto Rotary Pleating Machine HEPA Filter Mini Paper Pleating Production Line
Specifications
Brand Name :
PLM
Model Number :
PLWG-1300
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD 20000/pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5 SETS PER 30 DAYS
Delivery Time :
20 DAYS AFTER DEPOSIT
Packaging Details :
EXPORT STANDARD WOOD CARTON
Product name :
Auto HEPA Filter Mini Paper Pleating Production Line Rotary Pleating Machine
Max.width :
1300mm
Adjustable pleating height :
15~100mm
production capability :
25m/min
distance between gluing lines :
25.4mm
number of gluing lines :
2*48lines
main power :
46kw
working air pressure :
0.6Mpa
Description

Auto HEPA Filter Mini Paper Pleating Production Line Rotary Pleating Machine

Auto HEPA Filter Mini Paper Pleating Production Line Rotary Pleating Machine General Description

This machine adopts the automatic control of mechanical and electrical integration, with high gluing efficiency and stable and reliable operation.

Auto HEPA Filter Mini Paper Pleating Production Line Rotary Pleating Machine Features

1 The operation panel adopts computer control interface. Clear, intuitive, easy to operate.
2 Pneumatic shaft is used for feeding, and tension control system is provided, which can automatically control the tension of incoming material.
3 The machine is equipped with slitting and trimming device.
4 The folding height of the machine can be adjusted arbitrarily without changing the roller. The servo control system can ensure the flatness of the origami accurately.
5 The continuous, intermittent, double-sided, single-sided, automatic and manual functions of gluing can be easily selected.

Auto HEPA Filter Mini Paper Pleating Production Line Rotary Pleating Machine Specification

Speed

4~10m/min

The number of gluing

 2×26Lines

Max.width

 700mm

Output of the machine

 16 KW

Air pressure

 0.6MPa

Power

 380V/50Hz

Outline dimension

6520×1140×1750mm(L×W×H)

Machine weight

 700kg
