Spin-On Oil Filter Can Sealing Machine Oil Filter Making Machine
Spin-On Oil Filter Can Sealing Machine Oil Filter Making Machine
Spin-On Oil Filter Can Sealing Machine Oil Filter Making Machine
Spin-On Oil Filter Can Sealing Machine Oil Filter Making Machine
Specifications
Brand Name :
PLM
Model Number :
PLFC-130G
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD 6600/SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 SETS PER 30 DAYS
Delivery Time :
20 DAYS AFTER DEPOSIT
Packaging Details :
EXPORT STANDARD WOOD CARTON
Product name :
Spin-On Oil Filter Can Sealing Machine Oil Filter Making Machine
Production capability :
12 cans/min
Sealing diameter :
Φ50~Φ120mm
Sealing parts assembly height :
50~300mm
Video factory inspection :
Provided
Warranty :
1 year
Out-of-warranty service :
Video technical support
Applicable industry :
Manufacturing Plant
Description

Spin-On Oil Filter Can Sealing Machine Oil Filter Making Machine

Spin-On Oil Filter Can Sealing Machine Oil Filter Making Machine Features

1 Electric and pneumatic controls are used by the seaming machine. The feed movements is carried out for the first roller and second roller by tow sets of cam mechanics.
2 Loading and unloading of the processing port will be done by the pneumatic parts that is controlled by the pre-determined program.
3 Adopts manual mode by pressing the button in favor of the operators' security.
4 The sealing wheel uses cr12mov of high as-quenched hardness and fine wear resistance to lengthen the service life.

Spin-On Oil Filter Can Sealing Machine Oil Filter Making Machine Applications

The machine is professional used to seal the shells of rotary type and fuel filter with sealing back plate.

Spin-On Oil Filter Can Sealing Machine Oil Filter Making Machine Specification

Production capability

 12 cans/min

Sealing diameter

 Φ50~Φ120mm

Sealing parts assembly height

 50~300mm

The thickness of the plate

 0.5~0.8mm

Motor power

 2.2kw

Working air pressure

 0.6MPa

Power supply

 380V/50Hz

M/C Weight

 600kg

M/C size

 860×640×1750mm (L×W×H)

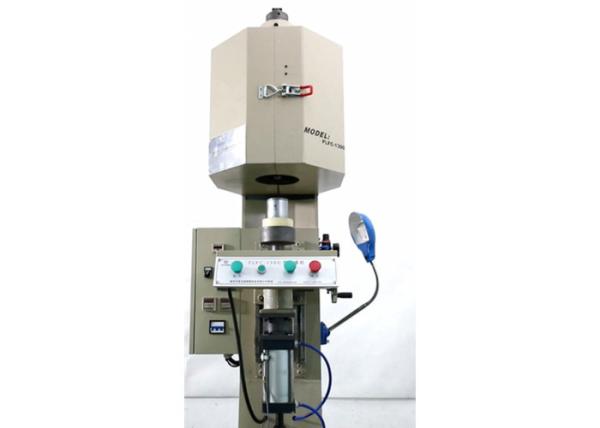

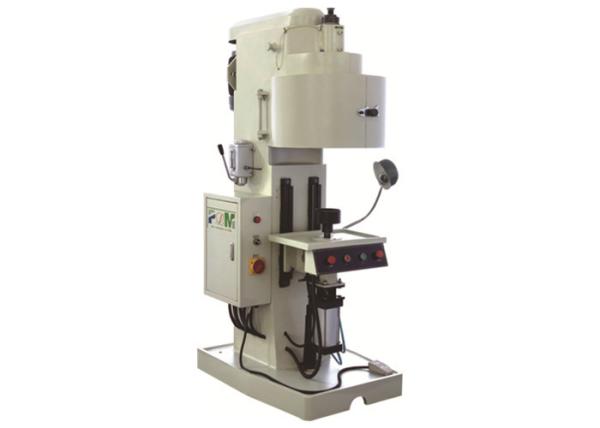

Spin-On Oil Filter Can Sealing Machine Oil Filter Making Machine Photo

Spin-On Oil Filter Can Sealing Machine Oil Filter Making MachineSpin-On Oil Filter Can Sealing Machine Oil Filter Making Machine
