5-15g/S Rotary Pleating Machine Panel Air Pu Filter Making Machine Fully Automatic
5-15g/S Rotary Pleating Machine Panel Air Pu Filter Making Machine Fully Automatic
5-15g/S Rotary Pleating Machine Panel Air Pu Filter Making Machine Fully Automatic
5-15g/S Rotary Pleating Machine Panel Air Pu Filter Making Machine Fully Automatic
5-15g/S Rotary Pleating Machine Panel Air Pu Filter Making Machine Fully Automatic
5-15g/S Rotary Pleating Machine Panel Air Pu Filter Making Machine Fully Automatic
Specifications
Brand Name :
PLM
Model Number :
PU-20F
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD23000-28000/SET
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
10 SETS PER MONTH
Delivery Time :
30DAYS
Packaging Details :
STANDARD EXPORT WOOD CARTON
Product name :
Fully Automatic 5-15g/s PU machine Air Filter Making Machine For PU penal Air Filter
APPLICATION :
PU injection air filter making machine
Production Capacity :
30sets/Month
Specification :
1500×2000×2100mm
PRODUCE METRIAL :
PU glue
BRAND :
PLM
production efficiency :
5-15g/s
key words :
Fully Automatic Air Filter Making
Description

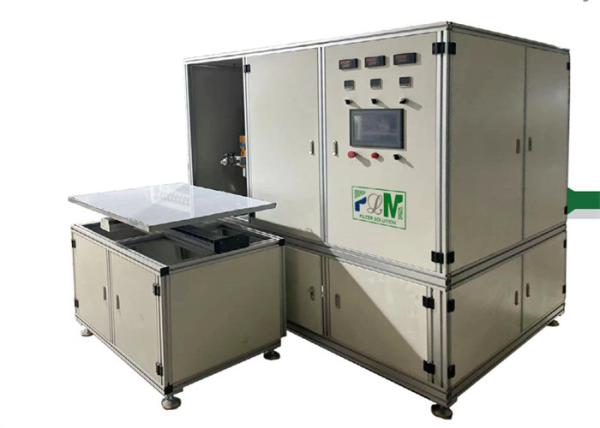

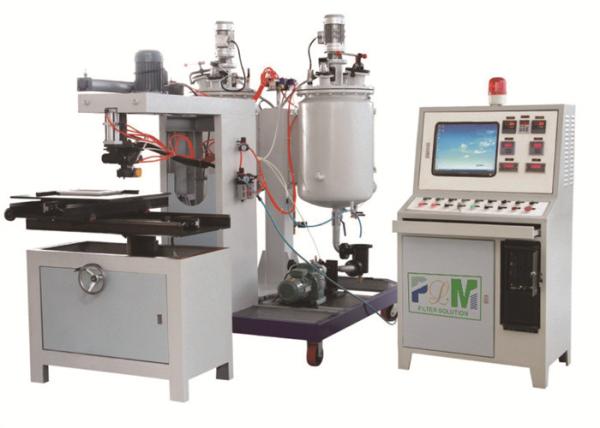

Fully Automatic 5-15g/s PU machine Air Filter Making Machine For PU penal Air Filter

Air Filter Making Machine Consists:

1 . Workbench : The module is placed on the autonomous all-purpose workbench, and then the round or square seals or seals with special shape are automatically poured.

2 . Control : Temperature, pressure and casting range are digital display, and automatic control. Operate the workbench according to the requirements of the computer screen display.

3 . Barrel : Three layer stainless steel smooth tank with stirring and automatic constant temperature function.

4 . Pump : Low speed, high precision flow control pump, equipped with accurate drive and display device.

5 . Nozzle : With automatic three switching function, including pouring, backflow and flushing, without any forward or lag. After pouring, the nozzle is pneumatically dislocated, and then the automatic flushing process is started by program control.


Air filter manufacturing machine Features:

1. Stable and accurate measurement control constant temperature.

2. Digital display instrument unit program - controlled electronic operation.

3. The nose design is novel, precise and fine steering reflux structure.

4. The machine is designed with X-Y axis square rotating table, which can not only cast square seals, but also cast round and special seals.

5. Original bucket structure, stepless regulation mixing.

Air filter manufacturing machine specifications:

Total production: 5 ~ 15g/s design mix ratio: A:B=100:25 ~ 35
Maximum size of secondary automatic pouring ladle: 400×300 (length × width)
Maximum size of circular automatic loading: φ350mm
Automatic shift range of gate after operation: 450mm
Driving speed: 2-10m/min
M/C weight: 1000kg
M/C size: 1500×2000×2100mm (length × width × height)
Power supply: 380V/50Hz
Total power: 8kW

Advantages of PLM for Air Filter Making Machine:
