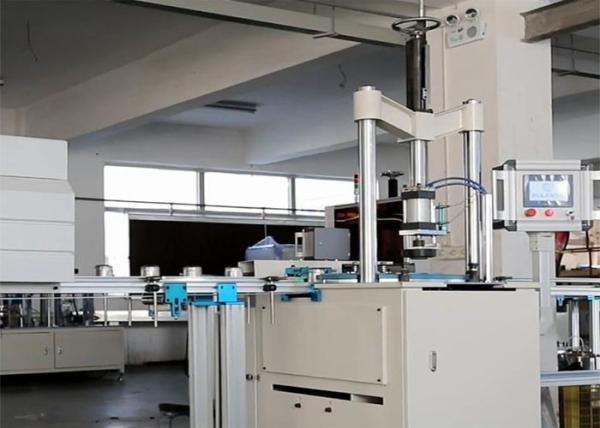

PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming
PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming
PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming
PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming
Specifications
Brand Name :
PLM
Model Number :
PLFJ-110
Place of Origin :
China
MOQ :
1 set
Price :
USD 18000/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5 sets / 30days
Delivery Time :
30 days after deposit
Packaging Details :
export standard wood carton
Product Name :
PLFJ-110 35–45 cans/min Full-Auto High Speed Turntable Seaming Production Line
Keywords :
35–45 cans/min Full-Auto High Speed Turntable Seaming Production Line
Production Capacity :
35–45 cans/min
Sealing Diameter :
56–110 mm
Filter Assemble Height :
50–270 mm
Available Steel Thickness :
0.5–0.8 mm
Turntable Deciles :
12
Motor Power :
5 kW
Working Air Pressure :
0.6 MPa
Power Supply :
380 V / 50 Hz
M/C Weight :
600 kg
M/C Size (L × W × H) :
700 × 985 × 2060 mm 5050 × 340 × 1415 mm 2050 × 250 × 925 mm 500 × 320 × 1085 mm
Description

PLFJ-110 35–45 cans/min Full-Auto High Speed Turntable Seaming Production Line

High Speed Turntable Seaming Machine Cosisits:

Fully Automatic Filter Seamer features:

Electric and pneumatic controls are used by the seaming machine. The feed movements are carried out for the first roller and second roller by two sets of cam mechanics.
Loading and unloading of the processing port will be done by the pneumatic parts that are controlled by the pre-determined program.
The sealing wheel uses cr12mov of high as- quenched hardness and fine wear resistance to lengthen the service life.
This turnable seaming machine adopts the high precise import divider to ensure the seaming quality.
This is high speed seaming machine, has the completely automatically circulation of the up-loading, seaming and down-loading.

Turntable Seaming Production Line specification

Product Name PLFJ-110 35–45 cans/min Full-Auto High Speed Turntable Seaming Production Line
Keywords 35–45 cans/min Full-Auto High Speed Turntable Seaming Production Line
Production Capacity 35–45 cans/min
Sealing Diameter 56–110 mm
Filter Assemble Height 50–270 mm
Available Steel Thickness 0.5–0.8 mm
Turntable Deciles 12
Motor Power 5 kW
Working Air Pressure 0.6 MPa

High Speed Turntable Seaming Machine Applications:

This turntable seaming machine is mainly used for seaming the shells of the spin-on oil& fuel filters.

PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming

PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming

PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming

Advantages of PLM for Air Filter Making Machine:

PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming
