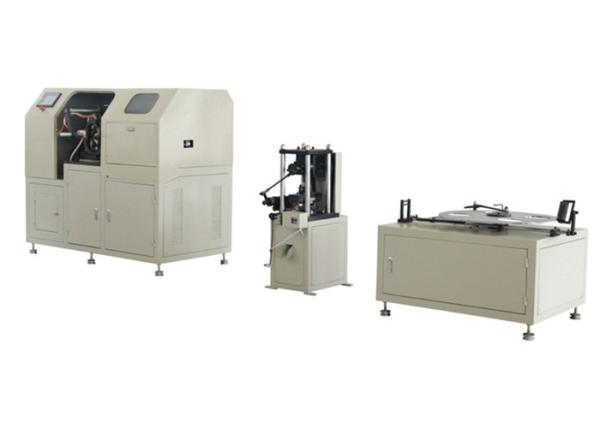

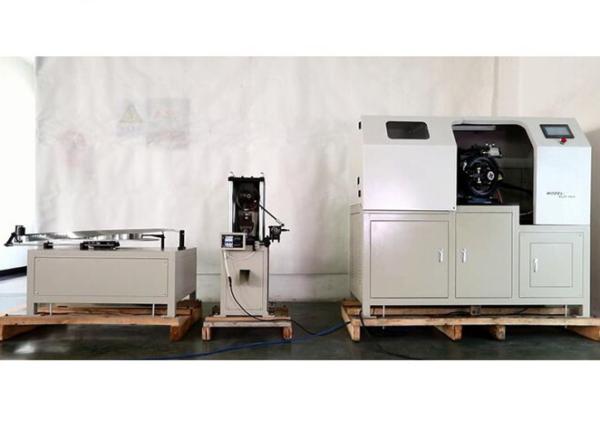

Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making
Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making
Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making
Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making
Specifications
Brand Name :
PLM
Model Number :
PLJY-75-II
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 10000 SET
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
7 Set Per mouth
Delivery Time :
8 work days
Packaging Details :
Export standard wookden box
Name :
center tube Spiral coiling machine
Certificate :
CE Certificate
Function :
center tube Spiral
Type :
Center Tube Making Machine
Material :
Stainless Steel
Structure :
Steel Structure
Product capability :
20-35pcs/min
M/C weight :
800kg
Description

Full-auto Spiral Center Tube Making Machine Steel Structure white PLJY-75-II Certificate CE Certificate Material Stainle

General Description


The machine is technically used in manufacturing the center tubes of the auto. Oil and fuel filters. Furthermore, the perforated/round hole spiral tube can be made as well.

Machine parameters

1. The machine can easily change the diameter of screw tube in a short time.
2. Cut the needed length according to what the customers' specifications.
3. Can adjust the clutch according to different thickness of the steel strip.
4. The computer control machine can save production costs and working procedures with its high efficiency, steady quality and economical materials.
5. Adopts hydraulic pressure drive, which has strong power and good stable.

Specification


1, Product capability:20-35pcs/min
2, Diameter of the center tube:Φ30~Φ75mm
3, Length of center tube to be processed:freely.
4, Steel plate thickness:0.25~0.32mm
5, Motor power:3kw
6, Power supply:380V/50Hz
7, Working air pressure:0.6MPa
8, M/C weight:800kg
9, Size of the main machine:1600×800×1240mm(L×W×H)
10, Size of the paper decoiler:1200×800×760mm(L×W×H)

Features


1, The machine can easily change the diameter of screw tube in a short time.
2, Cut the needed length according to what the customers' specifications.
3, Can adjust the clutch according to different thickness of the steel strip.
4, The computer control machine can save production costs and working procedures with its high efficiency, steady quality and economical materials.
5, Adopts hydraulic pressure drive, which has strong power and good stable.

Applications


The machine is technically used in manufacturing the center tubes of the auto. Oil and fuel filters. Furthermore, the perforated/round hole spiral tube can be made as well.
