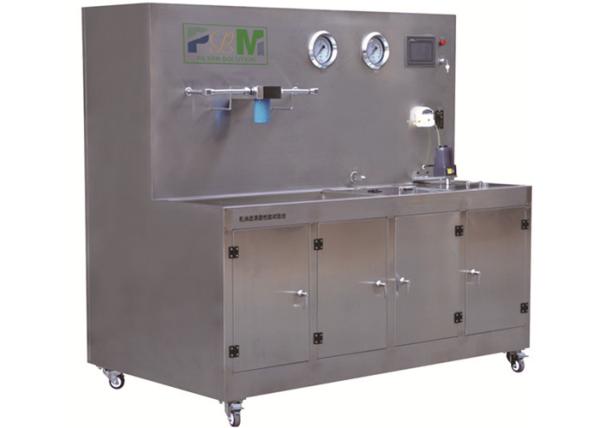

PLXN-50 Rotary Pleating Machine Oil Filter Performance Tester
PLXN-50 Rotary Pleating Machine Oil Filter Performance Tester
Specifications
Brand Name :
PLM
Model Number :
PLXN-50
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 8000 SET
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
7 Set Per mouth
Delivery Time :
8 work days
Packaging Details :
Export standard wookden box
Material :
Stainless Steel
Product name :
PLXN-50 Oil Filter Performance Tester
Certificate :
CE certification
colors :
silvery white
Type :
Performance Tester
Warranty :
1 year
motor power :
3.7kw
power supply :
380V/50HZ
Description

PLXN-50 Oil Filter Performance Tester Colors Silvery White Material Stainless Steel

PLXN-50 Oil Filter Performance Tester Introduction

1.Measure test flow through high-precise ellipse gear flow meter.

2.Use precise pressure gauge to measure the pressure when oil in and out.

3.The working table uses stainless steel, and the pipelines and couplers use rust preventing material.

4.To test filter’s blocking life, impurity substance is mixed evenly with impurity affix system.

5.Test criterions: JB/T6725-93, ISO4548

Application

It is used to test: differential pressure/flow properties, bypass element property, by valve response pressure, filter element blocking life, filter element high-pressure resistance loss, high-oil-temperature resistance.

Specifications

1.Test flow 5L/ min-50L/min
2.Flow precision 1grade
3.Temperature control normal temperature-100°
4. pressure precision 0.5grade
5.oil tank: stainless steel, capacity 50L
6.motor power 3.7kw
7.power supply 380V/50HZ
8.M/C weight 500kg
9.M/C size 2000*1100*1885mm /600*575*1620mm ( L*W*H)


PLM SOLUTIONS CONTRIBUTE TO YOUR SUCCESS


PLM is specialized in providing filter production solutions for our customers. Until now, our solutions covers car & heavy duty air filters, cabin filters, oil & fuel filters, primary/middle/high efficiency filters. Over 70 kinds of filter production machines and test machines satisfy customers with different requirements and budget. Complete line of filter materials save customers purchasing time and cost. All these help customers efficient production and high output. Our online and on-site supports eliminate customers' worries. We have gained the ISO, CE and CO certifications, which verify our machines and materials are accord with international and market requirements.
