Specifications
Brand Name :
PLM
Certification :
ISO9001
Place of Origin :
China
MOQ :
5000pcs
Payment Terms :
L/C, , D/A, D/P, T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
40-50 days
Packaging Details :
wooden case packing
Basic Weight :
105±5g/m²
Thickness mm @500Pa :
2.5±0.5
MD :
≥25N/50
CD :
≥50N/50mm
Ressure Drop :
≦40 Pa
Efficency :
30±10
Description

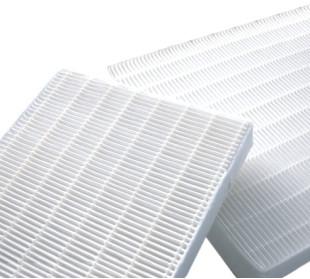

Polypropylene Mini Pleat Filter Media

Product Specification:

Polypropylene mini pleat filter media is compounded by ultrasonic melting and hot-melt fibre adhesive technology to bond different layers of material together,enhancing physical or chemical performance of filtration media.They can be widely used in pleatable filter.

Product Performance:

Flat appearance and high intensity

High stiffness,be easy to pleated

At the condition of reaching the same efficiency,the resistance of the material decrease by 20%

Own the advantage of great dust capacity and extending the life-span of filter

Type Basic W.g/m² Thickness.mm Resistance Pa Efficiency stiffness mg Applications CRAA(EN779)
LM-LZ-50 85 0.55 8 50 180 F5ventilaition filter
LM-LZ-60 90 0.58 20 70 190 F6ventilaition filter
LM-LZ-80 90 0.60 25 90 220 F7ventilaition filter
LM-LZ-90 100 0.55 35 95 300 F8ventilaition filter
LM-LZ-95 100 0.55 45 97 400 F8-Y9ventilaition filter
LM-LZ-98 110 0.55 110 99 450 F9-Y10ventilaition filter
LM-LZ-995 120 0.65 120 99.5 550 F10-Y11通风过滤器ventilaition filter(EN1822 H10-H11)
测试方式Test Method:TSI 8130 Nacl,0.3μm@32L/min,100cm2
