LM-JDM-45G Elextrostatic Needle-punched Filter Media
LM-JDM-45G Elextrostatic Needle-punched Filter Media
LM-JDM-45G Elextrostatic Needle-punched Filter Media
LM-JDM-45G Elextrostatic Needle-punched Filter Media
Specifications
Brand Name :
PLM
Model Number :
PLTN-100
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1set
Price :
$20000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
45days
Packaging Details :
wooden case packing
Product Name :
LM-JDM-45G
Basic W.g/m² :
45
Thickness.mm :
1.0
Resistance Pa :
1.2
Efficiency :
50
Description

Elextrostatic Needle-punched Filter Media

Product Specification:

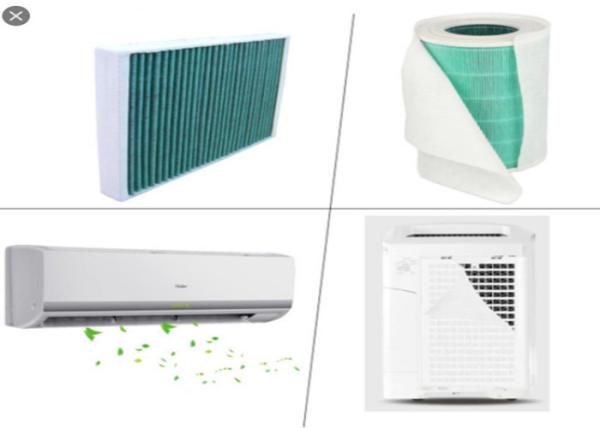

The static needle punched filter media with high effciency by using a modified polypropylene fiber via corona charged electret after needle punched processing,from air into the fiber,in order to achieve the high filtration efficiency,with a superior product performance,had advantages on cost-effective integrated,static needle punched material has not only the common characteristics,enhance the filtration effciency,with less resistance,a greater amount of dusts,but also the advantages of longer existed.The product can be widely used in the domestic automotive air conditioning,house air conditioning,middle-high

Effcient air purifier,high efficient respiratory,and can composite with melt-blown material,non-woven material,active carbon particles,some supporting material together get a gradient filter material,and multipe effect filter material.

Product Performance:

High efficiency by electrostatic adsorption

Material with three dimensional structure,with fully,high porosity,low filtration resistance

The needle punched process with fully material,three dimensional pinhole,high porosity is conducive to dust,great dust capacity

Material with high porosity is conducive to store active carbon particles,combined multiple effect filter material

Tyoe Basic Weight g/m² Thickness mm Ressure Drop Pa Efficency %
LM-JDM-45G 45 1.0 1.2 50
LM-JDM-60G 60 1.1 2 65
LM-JDM-80G 80 1.2 3.5 80
LM-JDM-110G 110 1.6 4.6 90
LM-JDM-180G 180 2.0 6.5 98
测试方式Test Method:TSI 8130 Nacl,0.3um@32L/min,100cm²
