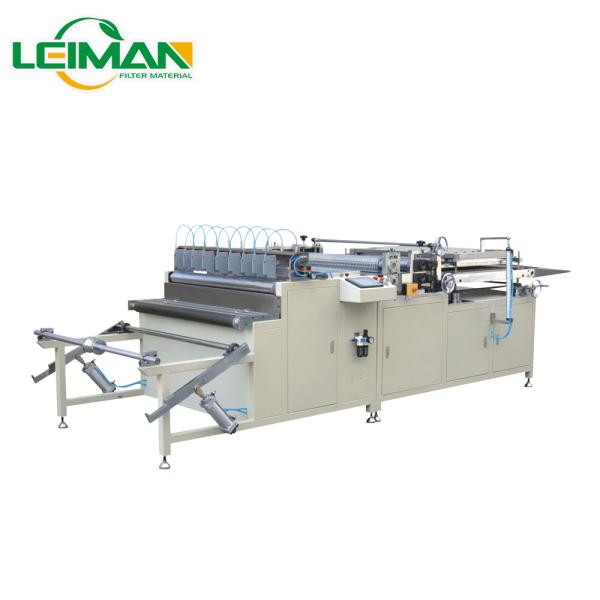

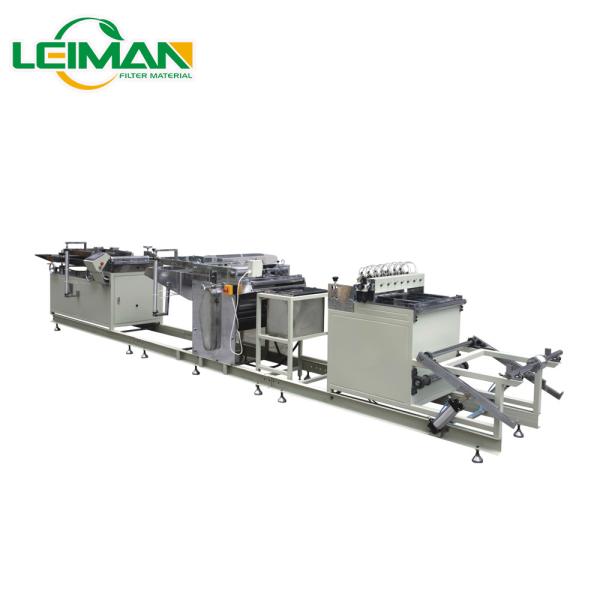

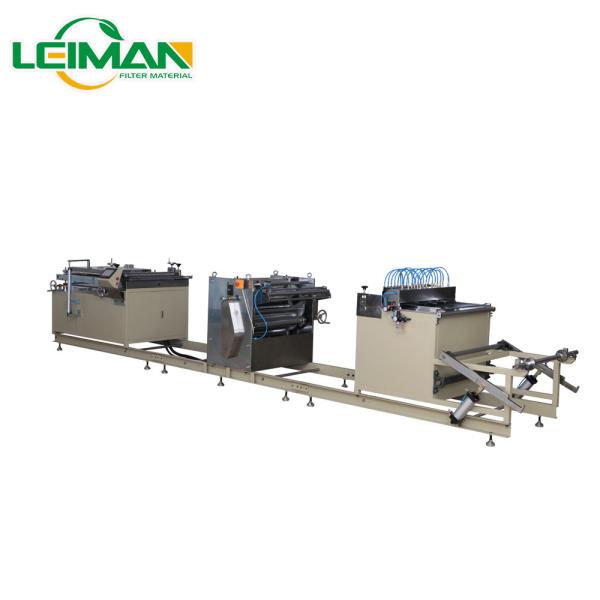

PLGT-1000N Full-auto Turntable Hot Melt Clipping Machine

PLGT-1000N Full-auto Turntable Hot Melt Clipping Machine

PLGT-1000N Full-auto Turntable Hot Melt Clipping Machine

Consists
1,Auto paper de-coiler
2,Paper Pre-slitting machine
3,Pre-heating device before pleating
4,Auto counter
5,Water steam device
6,The specification of the drum can be changed arbitrarily

7,Roller and gear collecting device
8,Pleated paper heat forming and conveyer device

二, Specification
1,Product capability:0~30m/min
2,Max.width:1000mm
3,Min.width:100mm
4,Max.pleat height:70mm
5,Min.pleat height:10mm
6,Customize the rollers sizes
7,Temp.control: normal temp.~200^oC
8,Main power:24kw
9,Working air pressure:0.6MPa
10,Power supply:380V/50Hz
11,M/C weight:850kg
12,M/C dimension:5200×1490×1170mm(L×W×H)

三,Features
1,The pre-slitter uses pneumatic cutting round knife, which is adjusted simply and pressed evenly.
2,This machine equips the pre-heating and water steam device, to prevent the paper breaking when roller marking.
3,This machine equips the gear collecting system, so to faster the pleating speed and well pleated the paper.
4,This high automatic machine has the process of the process of the auto count marking,pleating,pre-heating and forming.
5,This machine is computer control and simple operation.

四, Applications
This machine is used for pleating and forming the HDAF filter element.
