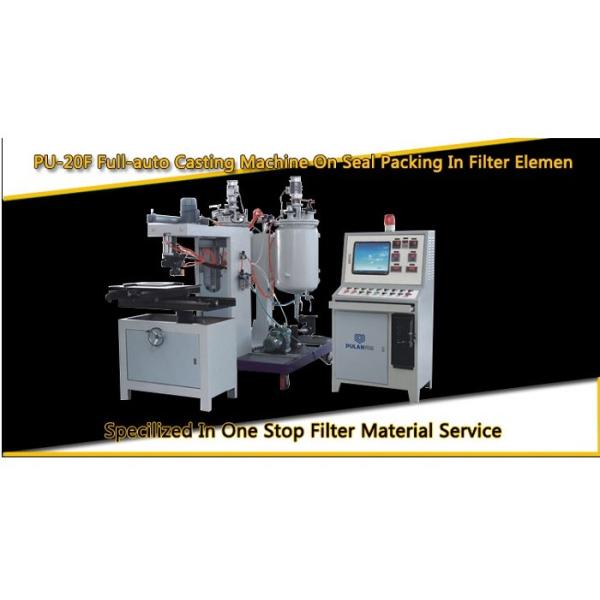

10m/Min PU-20F Fast Speed PU Gluing Machine For Panel Round Air Filter
10m/Min PU-20F Fast Speed PU Gluing Machine For Panel Round Air Filter
10m/Min PU-20F Fast Speed PU Gluing Machine For Panel Round Air Filter
10m/Min PU-20F Fast Speed PU Gluing Machine For Panel Round Air Filter
Specifications
Brand Name :
PLM
Model Number :
pu-20F
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 23000/ SET
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
200 set per month
Delivery Time :
20-25 days
Packaging Details :
wooden case
Product Name :
Gluing Machine For Panel Round Air Filter
Available Cap Diameter :
≤450 mm
Design Mixture Ratio :
100:25–35 (A:B)
Overall Output :
5–15 g/s
Pouring Maximum Size :
Round: Φ350 mm Rectangular: 400 × 300 mm
Speed Of Travel :
2–10 m/min
Machine Power :
8 kW
Power Supply :
380 V / 50 Hz
M/C Weight :
1000 kg
Keywords :
PU-20F Fast Speed PU Gluing Machine For Panel Round Air Filter
Description

10m/Min PU-20F Fast Speed PU Gluing Machine For Panel Round Air Filter

PU Gluing Machine Compoents


Bucket: stainless steel tank of three-layer structure with stirring and automatic constant temperature-preservation functions.
Pump: slow-speed, high-accurate flow-control pump with precise actuating and display devices.
Nozzle: Featuring automatic three position-switching which includes pouring, flow inversing and flushing, without any advancing or lagging. The nozzle pneumatically dislocates after the pouring work and then the automatic flushing course starts through program control.
Workbench: The die set is positioned on the self-governed all-around workbench afterwards round or square seal packs or seal pack with special figure would be automatically poured.
Control: The temperature, pressure and the extent of pouring would all be displayed digitally while controlled automatically. the workbench is operated in accordance with the requirements displayed from computer screen.

Inject PU glue machine specification:

Product Name 10m/Min PU-20F Fast Speed PU Gluing Machine For Panel Round Air Filter
Available Cap Diameter ≤450 mm
Design Mixture Ratio 100:25–35 (A:B)
Overall Output 5–15 g/s
Pouring Maximum Size Round: Φ350 mm Rectangular: 400 × 300 mm
Speed Of Travel 2–10 m/min
Machine Power 8 kW
Keywords PU-20F Fast Speed PU Gluing Machine For Panel Round Air Filter

Air Filter PU Glue Injection Machine Features


Digitally-displayed gage unit program-controlled electronic operation.
Stable and accurate measurement self-controlled constant stuff temperature.
Originative construction on bucket, step less-regulation stir.
Novel design on nose, precise fine-turning flow inversing structure.
The machine designed with X-Y axial square revolving working table which can not only pour square seal pack, but also round and special seal pack.

10m/Min PU-20F Fast Speed PU Gluing Machine For Panel Round Air Filter

10m/Min PU-20F Fast Speed PU Gluing Machine For Panel Round Air Filter

10m/Min PU-20F Fast Speed PU Gluing Machine For Panel Round Air Filter

Advantages of PLM for Air Filter Making Machine:

10m/Min PU-20F Fast Speed PU Gluing Machine For Panel Round Air Filter
