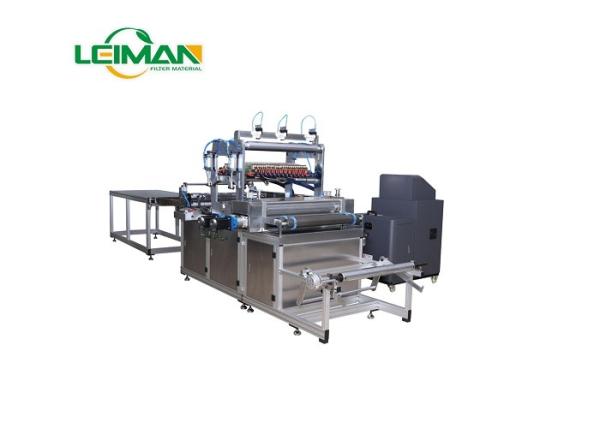

Leiman Full Auto HEPA Filter Mini Paper Folding Machine 700mm Width
Leiman Full Auto HEPA Filter Mini Paper Folding Machine 700mm Width
Leiman Full Auto HEPA Filter Mini Paper Folding Machine 700mm Width
Leiman Full Auto HEPA Filter Mini Paper Folding Machine 700mm Width
Leiman Full Auto HEPA Filter Mini Paper Folding Machine 700mm Width
Leiman Full Auto HEPA Filter Mini Paper Folding Machine 700mm Width
Leiman Full Auto HEPA Filter Mini Paper Folding Machine 700mm Width
Leiman Full Auto HEPA Filter Mini Paper Folding Machine 700mm Width
Leiman Full Auto HEPA Filter Mini Paper Folding Machine 700mm Width
Leiman Full Auto HEPA Filter Mini Paper Folding Machine 700mm Width
Specifications
Brand Name :
PLM
Model Number :
PLHP-1300/700
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD 58000/SET - USD 125000/SET
Payment Terms :
TT / LC / West Union
Supply Ability :
1 set per 20 days
Delivery Time :
20 days after deposit
Packaging Details :
Export Standard Wood Carton
Production Capacity :
4-15 m/min
Max. Width :
1300/700 mm
Adjustable Height Range :
20–100 mm
Distance Between Gluing Lines :
25.4 mm
Gluing Lines :
2 × 24 pcs
Machine Power :
16 kW
Description

Leiman Full Auto HEPA Filter Mini Paper Folding Machine Production Line

Leiman Auto HEPA Filter Mini Paper Folding Machine Production Line application

This machine is professionally designed and used for mini pleating and hot melt dispensing on the fiber glass or polypropylene, and is able to match different specifications of the filter elements, which is characterized with high productive efficient and simple operation.

Leiman Full Auto HEPA Filter Mini Paper Folding Machine Production Line Specification

Product Name

 Unit PLHP-1300/700

Production Capacity

 m/min 4–15

Max. Width

 mm 1300/700

Adjustable Height Range

 mm 20–100

Distance Between Gluing Lines

 mm 25.4

Gluing Lines

 pcs 2 × 24

Machine Power

 kW 16

Working Air Pressure

 MPa 0.6

Power Supply

 V/Hz 380/50

M/C Weight

 kg 700

Main Machine Size (L × W × H)

 mm 6520 × 1140 × 1750

Glue Machine Size (L × W × H)

 mm 1100 × 900 × 1300

Leiman Full Auto HEPA Filter Mini Paper Folding Machine 700mm Width

Leiman Auto HEPA Filter Mini Paper Folding Machine Production Line Features

1. Glue dispensing and paper folding are both performed in the identical machine. After paper collected, the filter paper is conversed by longer conveyor belt, which helps to solidify the hot melt and get needed length.

2. The main frame and conveying mechanism are controlled by frequency converter which is easy to adjust.

3. The filter material's journey after glued can be regulated among certain scopes. Which avails the dryness and humidity of hot melt and good for firmly folded.

4. Melt quickly, the glue dispensing quantity can be easily controlled by frequency converter.

5. High productive efficiency, good smoothness.

6. Furthermore, we can customize the paper-pleating production line of different specifications.
