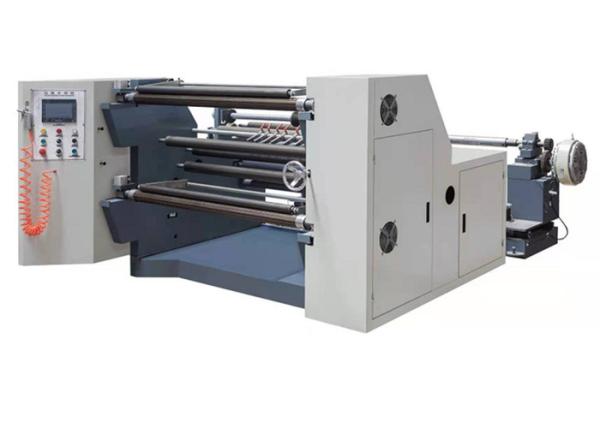

Multifonction Filter Cutting Machine PLF-1200N Photoelectric Paper Trimming
Multifonction Filter Cutting Machine PLF-1200N Photoelectric Paper Trimming
Multifonction Filter Cutting Machine PLF-1200N Photoelectric Paper Trimming
Multifonction Filter Cutting Machine PLF-1200N Photoelectric Paper Trimming
Specifications
Brand Name :
PLM
Model Number :
PLF-1200N
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 14500/SET
Payment Terms :
L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability :
5 SETS PER 30 DAYS
Delivery Time :
20 DAYS AFTER DEPOSIT
Packaging Details :
EXPORT STANDARD WOOD CARTON
Product Name :
PLF-1200N
Width :
1300C type
Cutting Thickness :
20–300 g/m2 (depending on different raw materials)
Max. Diameter of Raw Material Unwindin :
φ800 mm
Max. Diameter of Raw Material Rewinding :
φ800 mm
Body Color :
gray cover white (other colors are optional)
Speed :
10–200 m/min
Deviation Correction Accuracy :
±0.5 mm
Number of Rewinding Shafts at the Same Time :
2 (double shaft rewinding)
Use automatic photoelectric correction :
according to different raw materials and customer specific requirements
Description

Mulfonction Best Quality PLF-1200N Full-Auto Photoelectric Paper Trimming Machine

Full-Auto Photoelectric Paper Trimming Machine Filter Cutting Machine Features

1 Adjust the round blades distance to meet the different cutting specifications.

2 The cutting speed is steep less regulated by motor.

3 The coiling speed synchronizes with cutting speed through the magnetic powder clutch, meanwhile maintaining the appropriate tensile force.

4 Adjusting the magnetic brakes on the paper delivery coil to keep the certain tightness between papers.

5 Both the paper delivery coil and the paper recede coil use the air bulking axis, to avoid the paper bobbin skidding and easy operation.

6 The waste trimming paper can be blown out through the action of the air-blower.

7 This machine has the automatically meter counting and reverting system.

8 This machine equips the photoelectric trimming device to make the paper cut much more precisely.

Full-Auto Photoelectric Paper Trimming Machine Filter Cutting Machine Introduction

This machine is specially designed and used for cutting the filter paper and the non-woven of the panel air filter, cabin filter and fuel filter.

The cutting machine can be made according to customers’ specifications.

Filter Paper Bursting Strength Testier Oil Filter Making Machine Photo

Multifonction Filter Cutting Machine PLF-1200N Photoelectric Paper Trimming Multifonction Filter Cutting Machine PLF-1200N Photoelectric Paper Trimming

Specification
Product Name PLF-1200N
Width 1300C type
Cutting Thickness 20–300 g/m2 (depending on different raw materials)
Max. Diameter of Raw Material Unwindin φ800 mm
Max. Diameter of Raw Material Rewinding φ800 mm
Max. Width of Slitting Material 1300 mm
Winding Inflatable Shaft φ74 mm
Number of Rewinding Shafts at the Same Time 2 (double shaft rewinding)
Deviation Correction Accuracy ±0.5 mm
Slitting Accuracy ±0.5 mm
Speed 10–200 m/min
Total Power 5 W
Body Color gray cover white (other colors are optional)
Use automatic photoelectric correction

according to different raw materials and customer specific requirements
Features
  • This machine uses a DC motor to keep it running smoothly during acceleration; (frequency conversion speed regulation can also be used)
  • Automatic meter counting, alarm and other functions;
  • The rewinding adopts A air shaft structure, which is convenient for loading and unloading;
  • The unwinding adopts the photoelectric automatic correction system to make irregular materials can be slit normally
  • Automatic discharge device for flat knife slitting waste edge
  • Pneumatic shaft feeding, 3 inches
Applications

This machine is suitable for slitting various roll materials such as BOPP, PET, CPP, CPE, PVC, etc. During the production process, the materials are slit and rewinded according to different need.

Machine characteristics

Operating procedures

Machine packing
