Fully Automatic Corrugated Box Die Cutting Machine With Stripping
Fully Automatic Corrugated Box Die Cutting Machine With Stripping
Fully Automatic Corrugated Box Die Cutting Machine With Stripping
Fully Automatic Corrugated Box Die Cutting Machine With Stripping
Fully Automatic Corrugated Box Die Cutting Machine With Stripping
Fully Automatic Corrugated Box Die Cutting Machine With Stripping
Specifications
Brand Name :
EcooGraphix
Model Number :
ECOO-TD1650S
Certification :
ISO9000, CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500sets/Year
Packaging Details :
Standard Exporting Package: Polywood Carton
Product name :
Automatic Corrugated Box Die-Cutting Machine
Warranty :
1 Year Warranty Including Spare Parts
Imprinting Type :
Platen
Species :
Round Applanation Die Cutting Machine
Application :
Paper Packaging Materials, Stickers Products, Insulating Materials
Maximum Sheet :
1650X1200mm
Minimum Sheet Size :
650X520mm
Max. Die Cutting Size(mm) :
1630X1180mm
Inside Chase Size :
1660X1215mm
Min. Gripper Margin :
6
Corrugated Paper :
2-9mm
Max Machine Speed :
5000s/H
Die Cutting Plate Size :
1680X1186mm
Description

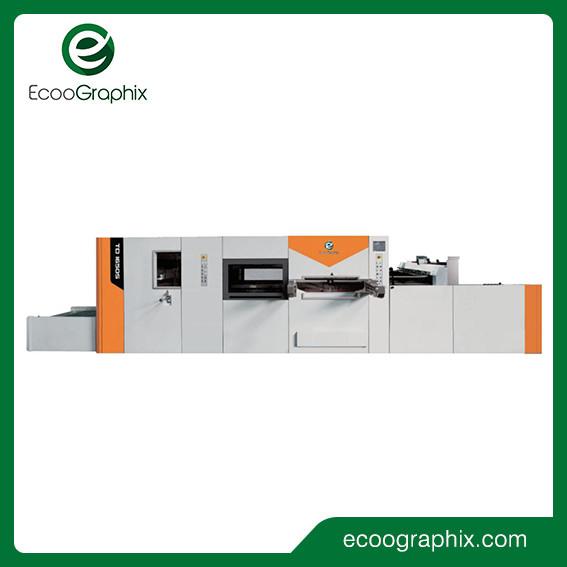

AUTOMATIC DIE-CUTTINT MACHINE WITH STRIPPING - TD 1650S

Automatic corrugated die cutting machine also named as corrugated box die cutting machine,
mostly uses to cut thick corrugated for package of TV, air conditioner, washing machine and so on.

Machine Spare Parts

Fully Automatic Corrugated Box Die Cutting Machine With Stripping

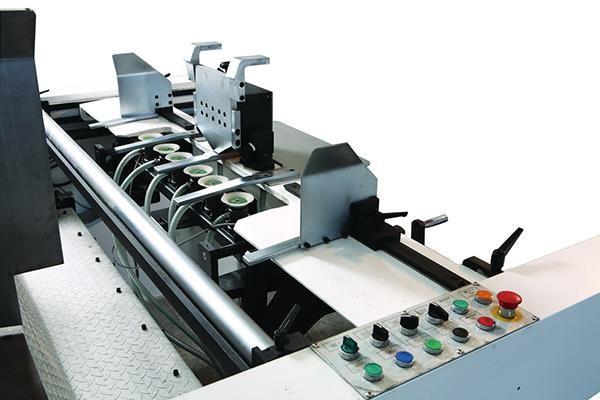

Friction Feeder

Friction feeder brings strength and high accuracy. Equipped with high-pressure sucking unit.
Feeding belt is controlled by servo or mechanical system depend on different material, which is more stable.

Fully Automatic Corrugated Box Die Cutting Machine With Stripping

Bottom-fed with Suction Feeder

Equipped with Japanese design bottom-fed non-stop feederwith 6 suckers. Scratches created on the paper during feeding can be avoid.
Equipped with reliable paper feeding, front lay and double-sheet sensor.

Fully Automatic Corrugated Box Die Cutting Machine With Stripping

Stripping Section

Double-action movement structure with upper and lower stripping frame facilitates die change, motorized upper frame suspending hoistsystem for easy installation. Male/female die are availablefor different stripping.

Fully Automatic Corrugated Box Die Cutting Machine With Stripping

Die Cutting Section

Pressure can be set on the touch screen.
The machine supervision display and 3d touch screen show the working conditon of the machine for malfunction diagnosis.
Chase is installed with centerline system and pneumatic lock-up system.

Fully Automatic Corrugated Box Die Cutting Machine With Stripping

Specification

Model TD 1650S(Lead edge fed feeder) TD1650S(Bottom suction feeder)
Max. Sheet Size (mm) 1650x1200 1650x1200
Min. Sheet Size (mm) 650x520 650x520
Max. Die-Cutting Size (mm) 1630x1180 1630x1180
Inside Chase Size (mm) 1660x1215 1660x1215
Min. Gripper Margin (mm) 6 6
Min. Gripper Waste (mm) 12mm(distance from first knife to paper edge) 12mm(distance from first knife to paper edge)
Max. Die Cutting Pressure 400tons 400tons
Corrugated Paper (mm) 2-9 2-9
Max Machine Speed (s/h) 5000 5000
Die Cutting Plate Size (mm) 1680x1186 1680x1186
Cutting Knife Height (mm) 23.8 23.8
Main Motor Power 22Kw 22Kw
Total Power 40Kw 45Kw
Voltage 380/220V, 3PH, 50/60HZ 380/220V, 3PH, 50/60HZ
Dimension (incl. platform) (L)10255x(W)5469x(H)2500mm (L)11130x(W)6000x(H)2564mm
Weight 38tons 38tons

Producing And Packaging

Fully Automatic Corrugated Box Die Cutting Machine With Stripping

Fully Automatic Corrugated Box Die Cutting Machine With Stripping

Fully Automatic Corrugated Box Die Cutting Machine With Stripping

More Details

Fully Automatic Corrugated Box Die Cutting Machine With Stripping

Fully Automatic Corrugated Box Die Cutting Machine With Stripping

FAQ

What about the Installation and after-sales technician support?
Our engineer will go to help the installation and will provide the necessary training on site. (The buyer should take the round airplane tickets and service charge and the local accommodation cost). Any problems or questions,we will be at your disposal 7x24 hours.
