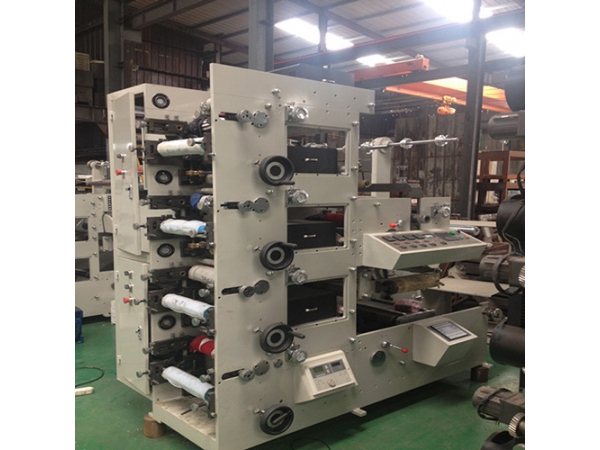

Automatic Flexographic UV Label Printing Machine

Product Description

Main Features

1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.
3.Each printing unit adopts 360°plate adjustment.
4.Each printing unit equips with hot air dryer.
5.This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.
6. The ink rollers will be separated from the printing rollers, and keep running when the machine stops.
7. Main motor use inverter to adjust stepless speed.
8. The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing adhesive label.

Specification

Model ECOO-320

Printing speed 60 m/min

Printing color 1-6 colors

Max. web width 320mm

Max. printing width 310mm

Max. unwinding diameter 600mm

Max. rewinding diameter 600mm

Printing length 177.8-355.6mm

Precision of chromatography ± 0.1mm

Dimensions (L×W×H) 2000x1100x2600mm

Machine weight about 2150kgs

Machine Spare Parts

Producing And Packaging

More Details

FAQ

1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.

2.Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

3. What is your warranty?
Normally 1 year.

4. Can you also supply the software?
Yes

5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
