Corrugated Paper UV Spot Laminator Coating Machine 1050mm 9000Sheets Per Hour
Corrugated Paper UV Spot Laminator Coating Machine 1050mm 9000Sheets Per Hour
Corrugated Paper UV Spot Laminator Coating Machine 1050mm 9000Sheets Per Hour
Corrugated Paper UV Spot Laminator Coating Machine 1050mm 9000Sheets Per Hour
Specifications
Brand Name :
ECOOGRAPHIX
Model Number :
ECOO 1050SD
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
10000-100000USD
Payment Terms :
L/C, T/T
Supply Ability :
500SETS
Delivery Time :
30DAYS
Packaging Details :
Standard Export Packing
Max. laminating Sheet (mm) :
730x1050mm
Paper thickness (gsm) :
80-500gsm
Max Coating Size :
720x1040mm
Laminating speed (m/min) :
10-60
Machine weight (kgs) :
8500KGS
Condition :
New
Application :
Water-based Glue, Oil-based Glue, Thermal Film, Glueless Laminating Film
Warranty :
One Year
Description

Corrugated Paper UV Spot Laminator Coating Machine 1050mm 9000Sheets Per Hour

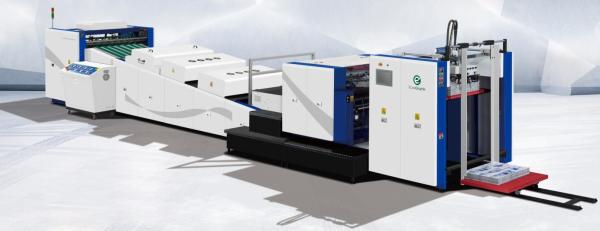

High Speed UV Spot and Overall Coating machine adopts upper-swaygripper- pass -sheet method to enable max speed up 9000 sheets/hour. UV curing system with Teflon conveying belt has characteristic of higher speed, precise orientation and UV curing higher efficiency and lower power consumption. After sheet travelling through UV coater and being transferred directly by teflon belt, grippers cannot be heated by high temperature from UV light, which prevent them from being damaged or deformed to ensure easy maintenance.


PRODUCT DESCRIPTION
* The machine is suitable for using water-based glue, solvent-based glue, and thermal film.
* Cold-water non-curling system: The paper will be non-curling after separated.
* Low cost: Ceramic anilox roller coating, minimize gluing amount to 5g/sqm.
* The heating energy cycle drying system makes the whole machine power consumption about 30kw/h.
* High efficiency:The machine working speed reaches to 70m/min, 10000sheets/h.

Remarks:
Laminating speed depend on paper weight, film thickness and gule material quality.
Subject to change without notice.
Standard Configuration: Selectable Configuration:

Auto Feeder

Multifunctional Coating Unit

UV Curing System

Auto Delivery Unit

Auto Control

Model Ecoo SD-1050
Max.sheet size 730x1050mm
MIN.sheet size 310X406mm
Max.coating size 720x1040mm
Sheet thickness 80-500gsm
Coating registration accuracy ±0.2mm
Production speed 9000sheets/hour
Weight 8T

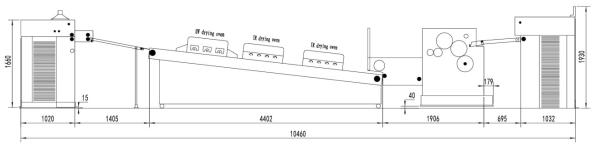

Dimension 10460x2725x1930mm
Power 44KW
Remark: Production speed depending on sheet weight, size and quality
