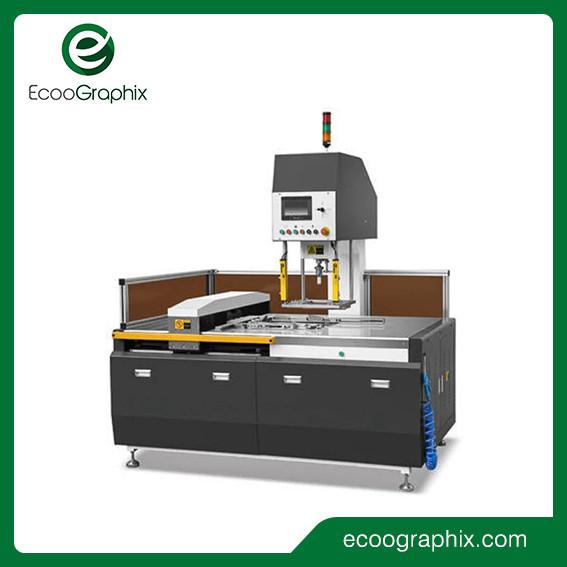

EcooGraphix Automatic Double Guide Stripping Machine For Packaging
EcooGraphix Automatic Double Guide Stripping Machine For Packaging
EcooGraphix Automatic Double Guide Stripping Machine For Packaging
EcooGraphix Automatic Double Guide Stripping Machine For Packaging
EcooGraphix Automatic Double Guide Stripping Machine For Packaging
EcooGraphix Automatic Double Guide Stripping Machine For Packaging
EcooGraphix Automatic Double Guide Stripping Machine For Packaging
EcooGraphix Automatic Double Guide Stripping Machine For Packaging
EcooGraphix Automatic Double Guide Stripping Machine For Packaging
EcooGraphix Automatic Double Guide Stripping Machine For Packaging
Specifications
Brand Name :
EcooGraphix
Model Number :
Ecoo QF Series
Certification :
ISO9000, CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 Sets/Year
Packaging Details :
Standard Exporting Package: Polywood Carton
Product name :
Stripping Machine For Packaging
Warranty :
1 Year Warranty Including Spare Parts
Max Sheet Size(X)X(Y) :
680X460; 920X680; 1080X780mm
Max Paper Pile Height :
100mm
Min Sheet Size(X)X(Y) :
400X300; 550X400; 650X450mm
Min Paper Pile Height :
40mm
Bench Height :
850mm
Min Take off The Paper :
30*30mm
Description

Automatic Double Guide Stripping Machine For Packaging

Product Description

Introduction
It replaces manual labor, and improves product quality and enterprise benefit.
It adopts servo motor, Taiwan double guide rail and bail screw which makes accuracy less than 0.02mm.
The latest hydraulic system is equipped with inserted motor and oil temperature cooling fan(power 3.75kw). So it has constant and big working pressure.

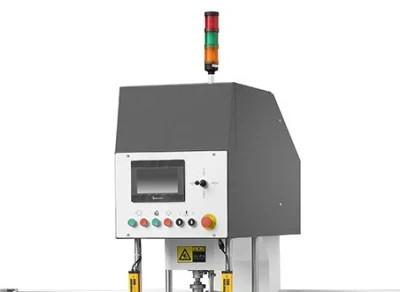

The complete machine is equipped with PLC, and with a touch screen interface in operation. The operation is safe and easy.

Features
This series of products suitable for the strip process after die cutting, save lots of labor improve the quality of products, increase the efficiency of company.
EcooGraphix Automatic Double Guide Stripping Machine For Packaging
Specification

Model QF 680 QF 920 QF 1080
Max sheet size(x)x(y)mm 680x460 920x680 1080x780
Max paper pile height(mm) 100 100 100
Min paper pile height(mm) 40 40 40
Min sheet size(x)x(y)mm 400x300 550x400 650x450
Bench height(mm) 850 850 850
Max Take off the paper(mm) 230x230 320x320 360x360
Min Take off the paper(mm) 30x30 30x30 30x30
Fasterst Take off the paper(pcs/min) 15-22 15-22 15-22
Max force(bar) 70 70 70
Air consumption(L/min) 2 2 2
Power 4.2kw/n 380V 4.2kw/n 380V 4.2kw/n 380V
Net weight 1.5T 1.9T 2.3T
Package dimension(mm) 2100x1500x2200 2600x1950x2250 3000x2150x2200
Gross weight 1.8T 2.2T 2.6T

EcooGraphix Automatic Double Guide Stripping Machine For Packaging

EcooGraphix Automatic Double Guide Stripping Machine For Packaging

Producing And Packing

EcooGraphix Automatic Double Guide Stripping Machine For Packaging

EcooGraphix Automatic Double Guide Stripping Machine For Packaging

EcooGraphix Automatic Double Guide Stripping Machine For Packaging

More Details

EcooGraphix Automatic Double Guide Stripping Machine For Packaging

EcooGraphix Automatic Double Guide Stripping Machine For Packaging

FAQ

1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing.
We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.

2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

3. What is your warranty?
One year for machine and printing head if use our ink. One year for machine only if do not use our ink.

4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.

5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge
and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
