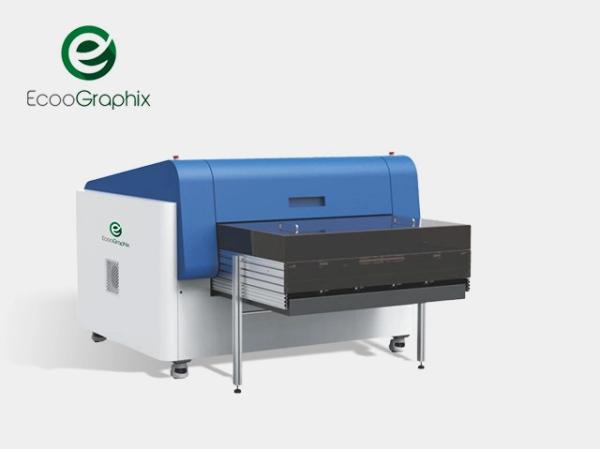

4up Automatic Plate Making Machine Model: T-400QS

Product Description

Overall Performance Improvement

1. Full-automatically continuous printing with Inline punch
Equipped with automatic plate loading and unloading, automatic feeding and automatic punching function, it can workcontinuously without interruption to maximize the performance.

2. Automatic plate feeding cassette
Large capacity automatic plate feeding system can load 400 plates at the same time and support four specifications of automatic plate switching, which saves manpower and improves printing speed for you, easily achieving full-automatically continuous plate printing.

3. Motor direct drive Drum
The application of direct motor driving drum technology makes our star-up time accelerated and greatly improves productions efficiency.

4. Linear motor
In addition to high acceleration, linear motor drive also has extremely stable operation and high positioning accuracy, providing the guarantee for high precision and accurate printing.

Specification

Model: EcooSetter T-400Q Serie

Laser wavelength: 830nm

Plate: Thermal plate

Exposing Method: External Drum

Throughput: 25 plates per hour, 800mmx660mm 2400dpi

Plate Size: Max. 800 mm x 660mm Min. 300x300mm

Plate Thickness: 0.15mm, 0.3mm

Resolutions: 2,400dpi or 1200dpi Repeatability: 0.01mm

Interface: USB2.0

Size: 1450×1950×1290mm(W×L×H)

Power Supply: single-phase: 220V

Power Consumption: 4KW

Environment: recommended temperature: 21-25ºC

Relative humidity: 40-70%

ECOO T-400Q
Model	T-400QS	T-400QX
Imaging System	External Drum 825nm laser
Output Speed	25pph	55pph
	800 x 660mm / 2400dpi
Plate Size	Max.800 x 660mm Min. 300mm x 300mm
Plate Thickness	0.15mm, 0.30mm
Resolution	2400dpi or1200dpi
Repeatability	0.01mm
Interface	Optical Fiber
Inline puning	Optional: internal punching (maximum four sets of plate holes)
Size (WxDxH)mm	1450x1950x1290mm (additional 600mm length for converyor to wash unit)
Power Supply	CTP(single phase: 220V, Max power: 4KW) Simplifiled Autoloader(single phase: 220V, Max power: 900W) Multi-cassette Autoloader(single phase: 220V, Max power: 1100W)
Enviroment:	Recommended temperature: 21-25ºC; Relative humidity: 40-70%

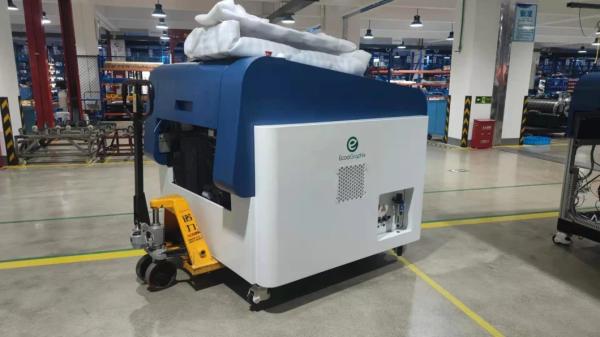

Producing and Packing

CTP Installation Worldwide

More details

FAQ

1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates ,inks, Blankets, Postpress Packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.

2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!

3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor. If machine user uses our plate at the same time, we offer lifelong warranty.

4. What is the Lead Time?
Usually 20-30 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.

6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
