​​​​​​​CTCP refers to Computer-to-Conventional-Plate.

Application

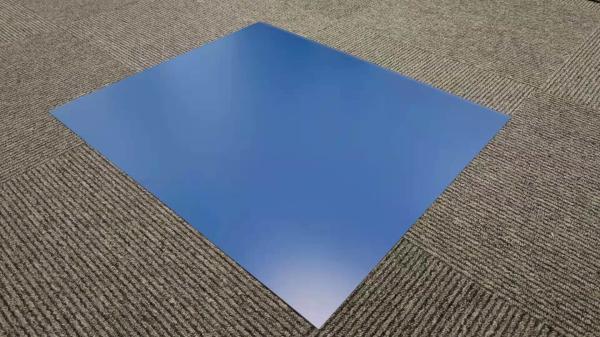

EcooGraphix CTCP Plate can be used for long runs high grade commercial and newspaper printing.
Unique production technology and high quality materials make the plate gain highphotosensitive speed,

good half-tone dot reproduction and stable performance.

Specification

Plate Model ECOO-CTCP-ES

Plate Type Positive CTCP Plate(Single Layer)

Application High quality commercial and newspaper printing

Substrate Electro chemically Grained and Anodized lithographic Aluminum

Aluminum alloy Standard 1050 Alloy

Gauge 0.15,0.20, 0.25,0.30, 0.40 (mm)

Maximum short grain width Maximum width 1280 mm

Length of Run Unbaked: 80,000 to 100,000 impressions Baked: Over 100,000 impressions

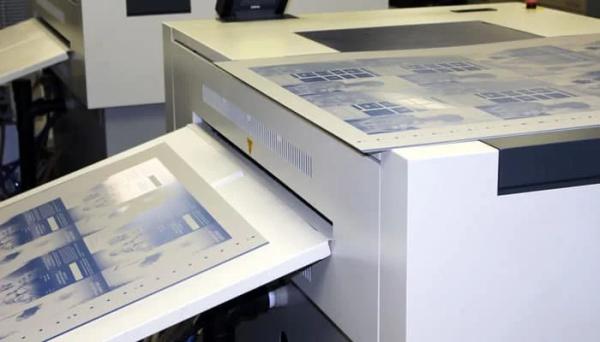

Plate setters Luscher, Basysprint, Cron, EcooGraphix UV series CTCP machine

Exposure energy 50 - 70 mJ/cm² Spectral Sensitivity 400 - 430 nm - UV Laser

Resolution 2 - 99% LPI 200 Photosensitive Wave Length 405nm

Coating Light Blue Processor All the kind brands.

Developer Any CTCP plate developer or our own developer

Processing temperature 23°C +/- 2°C Developing time 25 - 30 sec

Processing Speed 0.80 - 1.20 m/min Safelight Handle under yellow safelight (UV free)

Shelf Life 12 months under recommended storage conditions

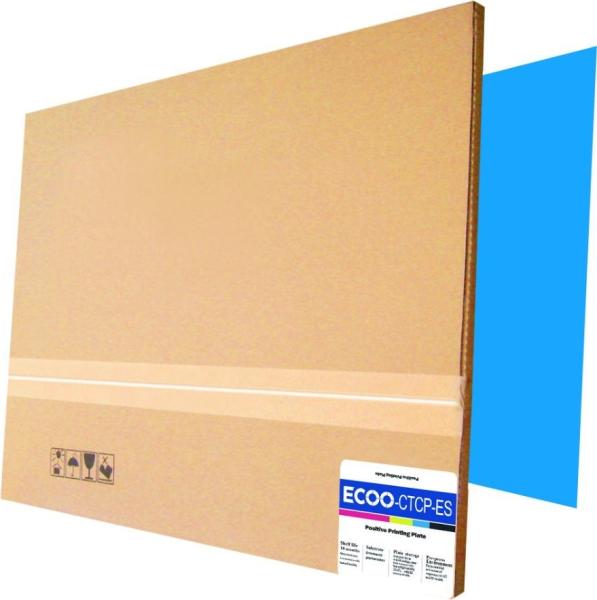

Packaging Available in all standard formats, including bulk packaging options such as APL packaging

Storage and handling Stored in a cool and dry environment, away from excessive cold, heat and humidity.

More details

FAQ

Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
