1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
Specifications
Brand Name :
EcooGraphix
Model Number :
ECOO-1080BQ
Certification :
ISO9000, CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 Sets/ Year
Packaging Details :
Wooden Case
Product name :
Die Cutting Machine with Waste Stripping
Warranty :
1 Year Warranty Including Spare Parts
Imprinting Type :
Platen
Placing Form of Template :
Horizontal
Die Cutting Tool :
Steel Plate
Automatic Grade :
Automatic
Application :
Paper Packaging Materials, Stickers Products
Max. Sheet Size :
1080 X 780 mm
Min. Sheet Size :
400 X 330 mm
Max. Die Cutting Size :
1075 X 770 mm
Inside Chase Size :
1100 X 790 mm
Cutting Plate Size :
1080 X 780 mm
Min.Gripper Margin :
7 mm
Die Cutting Accuracy :
≤±0.1 mm
Max.Machine Speed :
7000S/H
Feeding Pile Height :
1550mm
Weight :
17.6T
Description

Paper Board Die Cutting Stripping Machine With Waste Stripping

Automatic stamping devices find frequent application in diverse packaging tasks like labeling, card embellishment, and food packaging enhancement.

Among our top-selling products is the 1080BQ automatic stamping machine, notably popular across Europe, including the UK, Hungary, Romania, Croatia, Portugal, Bulgaria, and the Czech Republic.

Renowned for its robustness, the 1080BQ automatic DIE CUTTING machine traces its roots back two decades to its inaugural design. To date, over 300 units of these automatic stamping devices have found homes worldwide.

Specification

Model Ecoo-1080BQ
Max. Sheet size(mm) 1080 x 780
Min. Sheet size(mm) 400 x 330
Max. Die cutting size(mm) 1075 x 770
Inside chase size(mm) 1100 x 790
Cutting plate size 1080 x 780
Min.gripper margin(mm) 7
Die cutting accuracy(mm) ≤±0.1
Max.pressure(T) 300
Max.machine speed(s/h) 7000
Feeding pile height(mm) 1550
Delivery pile height(mm) 1400
Stock range White board paper: 0.1~2 mm; corrugated paper: <4 mm
Power 17.8kw
Dimension(mm) 5880(+1650) x 2100(+1600) x 2350
Weight(T) 17.6

Mode

1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment

Machine Spare Parts List

1. Impeccable design, precise assembly, exceptional stability, heightened safety features, and minimal noise emission characterize this equipment.
2. Leveraging worm gear, worm, and crankshaft transmission technology, this machine delivers elevated die-cutting pressure and boasts an extended lifespan.
3. Featuring a high-precision clearance mechanism, it achieves superior die-cutting accuracy while maintaining stable operation.
4. Incorporating advanced European feeder head technology, this machine offers adjustable suction paper, ensuring stability, accuracy, and broad paper compatibility.
5. Seamless non-stop paper feeding, along with pre-coded paper stacking and efficient paper retrieval mechanisms, reduces auxiliary time, enhancing overall work efficiency.
6. The die-cutting plate frame and bottom plate mechanism are designed with user convenience in mind, enabling swift and hassle-free plate loading and adjustment.
7. Optionally equipped with a three-frame linkage mechanism with a waste removal function, facilitating fast and convenient installation and adjustment of waste removal plates.
8. A pneumatic plate locking device ensures the firmness, accuracy, and time efficiency of the plate frame.
9. Fine-tuning devices for the front gauge, side gauge, and paper feeder enhance paper positioning accuracy.
10. Employing photoelectric level control, it effectively detects double sheets, misaligned sheets, and empty sheets, thereby enhancing paper accuracy, and stability, and minimizing waste.
11. The electrical control system adopts a modular design with imported components, ensuring precise control and reliability.
12. Featuring a user-friendly touchscreen interface, providing real-time monitoring and display of machine status, facilitating convenient adjustment and troubleshooting.
13. A circulating cooling oil supply system ensures optimal lubrication for machine moving parts, promoting durability.
14. An automatic timing and quantitative oil supply system ensure comprehensive lubrication for all machine moving parts, prolonging service life.

1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment

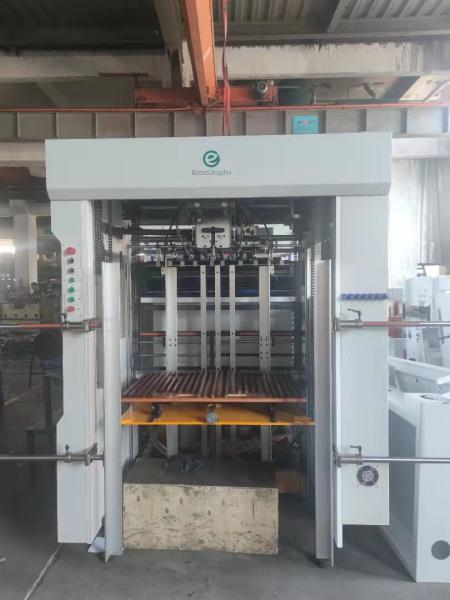

Utilizing advanced European engineering, this precision feeder head is designed specifically for handling cardboard and corrugated paper. With four suction and four feed capabilities, it offers adjustable suction angles to accommodate paper deformation.

1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment

Dual-function side regulation with push-pull capabilities on both sides. Utilizes an electromechanical detector for double sheets. Seamless switching of the main paper feeding table without machine halt. Equipped with highly durable polyurethane rollers for paper conveyance.

1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment

Pressure-bearing components utilize high-strength ductile iron QT500, renowned for its exceptional strength and resistance to deformation. Crankshaft crafted from alloy steel undergoes specialized treatment processes for enhanced performance.

1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment

Utilizing a circulating oil lubrication system with a high-pressure oil pump sourced from Taiwan. Incorporates a high-precision intermittent mechanism and a rotary joint from SMC in Japan. Features a precision pressure regulation mechanism for optimal performance.
1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment
An automatic paper alignment system is integrated, along with a dual-directional air blowing device for orderly paper delivery, accommodating both thick and thin paper types. The delivery section features a user-friendly control panel for enhanced operation convenience. Incorporates photoelectric sensors for precise paper delivery. Features an automatic lifting control system for the delivery table and is equipped with a non-stop delivery mechanism.

Packaging & Shipping

1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment

1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment

1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment

Certificates

1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment

1080BQ Automatic Die Cutting Machine With Waste Stripping For Card Embellishment

FAQ

Q: What about the Installation and after-sales technician support?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
