Specifications
Brand Name :
EcooGraphix
Model Number :
ECOO T-900
Certification :
ISO9000, CE
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Year
Delivery Time :
45 Days
Packaging Details :
Standard Export Packing
Price :
Negotiable
Classification :
Thermal Paper Slitting Rewinding Machine
Max. Unwinding Width :
900mm
Max. Unwinding Dia :
1000mm
Machine Max. Speed :
110m/min
Max. Rewinding Dia :
270mm
Min. Slitting Width :
25mm
Main Power :
2.95kw
Unwinding Shaft :
3'' (76mm) air expanding shaft
Rewinding Shaft :
0.5'', 1'' or as your request
Description

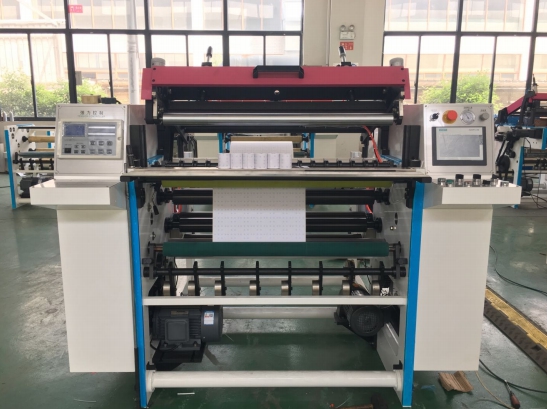

Siemens PLC Automatic Thermal Paper Slitting Rewinding Machine

Application Material


All sorts of thermal paper, including fax paper, cash register paper, ATM paper, medical record paper, self-adhesive trade marks, films and etc.

Details


Unwinding Section
- Chain link automatic lift-up loading system
- 3''(76mm) air expanding shaft

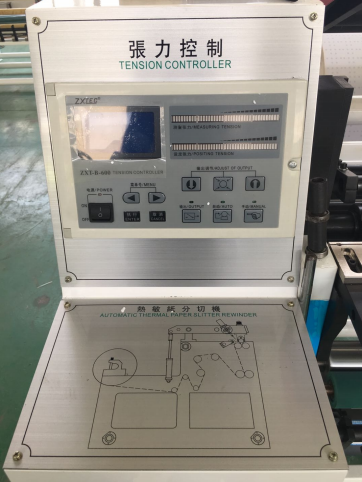

- Floating roller constant tension
- Two set Sensor

Slitting Section
- Disc cutter
- Disc Cutter Assembly adopts the cam self-locking
- Cutter with adjustable and moveable blade base
- Meter counter

Rewinding Section
- 0.5", 1", 1.5" or as your request
- Center Rewinding technology
- Pressure roller
- Automatic Tucker

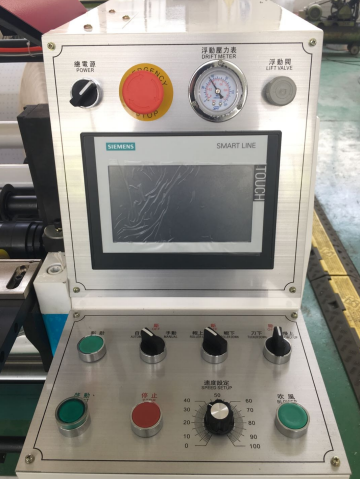

Controlling Section
- Siemens PLC & HMI from Germany
- All the parameters are displayed on the monitor
- Low voltage electrical appliances all from Schneider

Trimmed Waste Edge
- Edge Waste Blower with Expulsion Tube

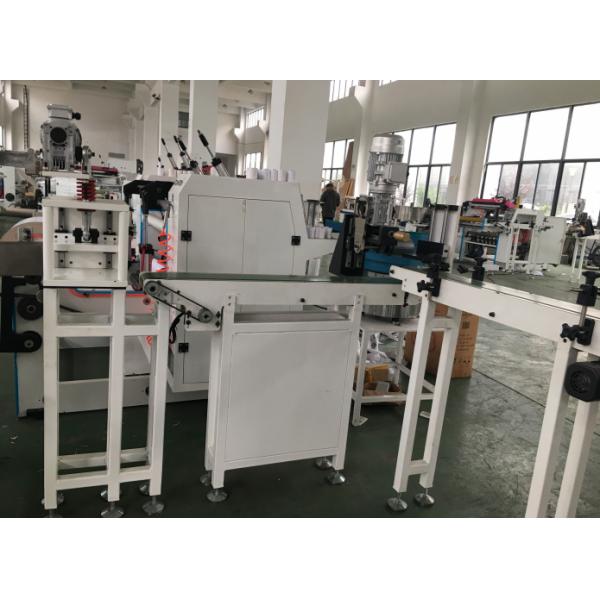

Optional
- Automatic Paper Core Loader
- Automatic Cutting & Gluing Device
- Automatic Roll Cut Off & Hammer Unit
- Whole Packing Line for Thermal Rolls
Specifications

Model

ECOO T-900

Max. Unwinding Width
900 mm
Max. Unwinding Dia
1000 mm
Max. Rewinding Dia
270 mm
Min. Slitting Width
25 mm
Max. Machine Speed
110 m/min
Main Power
2.95 kw
Unwinding Shaft
3'' (76mm) air expanding shaft
Rewinding Shaft
0.5'', 1'' or as your request
Weight
1300 kg
Demension
2000*1700*1500 mm
Model ECOO T-900
Max. Unwinding Width 900 mm
Max. Unwinding Diameter 1000 mm
Max. Rewinding Diameter 270 mm
Min. Slitting Width 25 mm
Max. Machine Speed 110 m/min
Main Power 2.95 kw
Unwinding Shaft 3'' (76mm) air expanding shaft
Rewinding Shaft 0.5'', 1'' or as your request
Weight 1300 kgs
Dimension 2000*1700*1500 mm

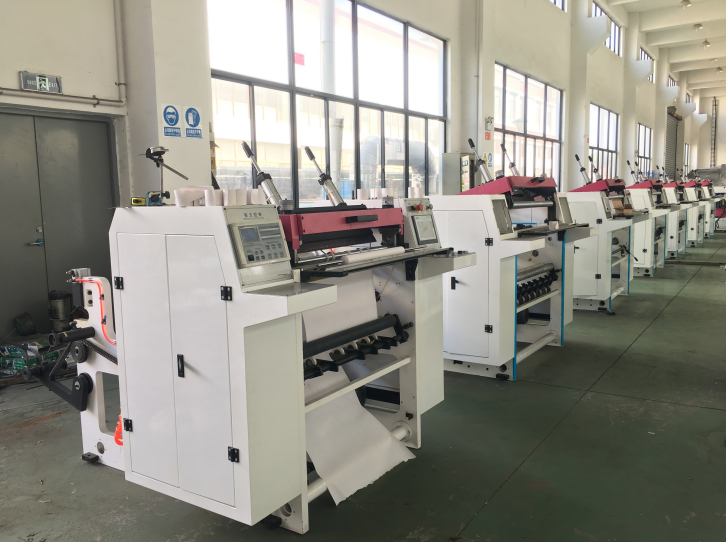

Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

PLC Automatic Thermal Paper Slitting Rewinding Machine 110m/min

PLC Automatic Thermal Paper Slitting Rewinding Machine 110m/min

PLC Automatic Thermal Paper Slitting Rewinding Machine 110m/min

PLC Automatic Thermal Paper Slitting Rewinding Machine 110m/min

PLC Automatic Thermal Paper Slitting Rewinding Machine 110m/min

PLC Automatic Thermal Paper Slitting Rewinding Machine 110m/min

Certificates


PLC Automatic Thermal Paper Slitting Rewinding Machine 110m/min

PLC Automatic Thermal Paper Slitting Rewinding Machine 110m/min

FAQ


Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


You can get the equipment and consumables all in one and no worry about the after-sales service from our company.


Q2: Where is your factory ?

A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!


Q3: How long is the lead time ?

A: The lead time is normally 30 days. We can accelerate for emergency cases.


Q4: Is there any certification for your machine ?

A: Yes, all our machines have been certified by SGS and CE.


Q5: How long is the warranty period ?

A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.


Q6: What is your normal payment term ?

A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.

Q7: What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.

Video ☞ https://youtu.be/4xqyJLVcko8
