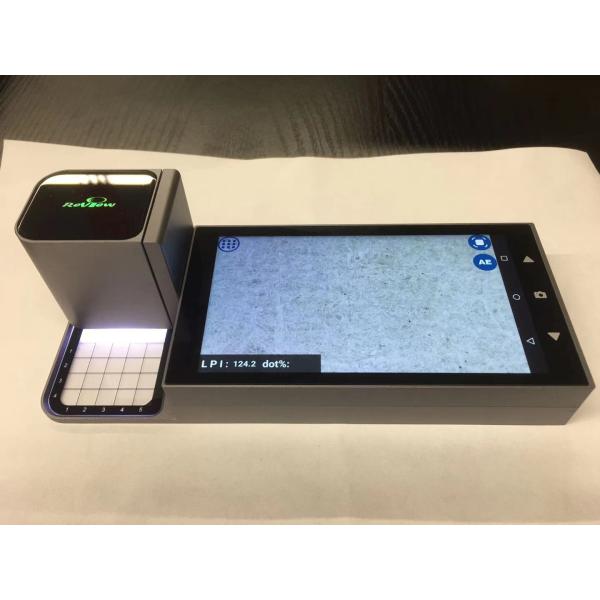

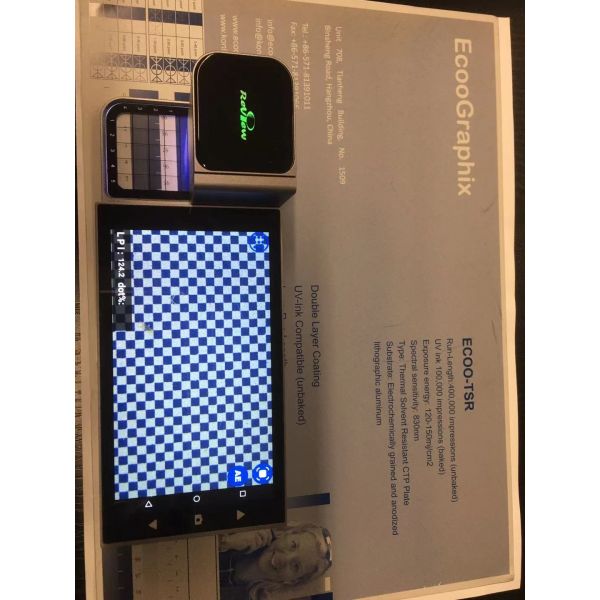

720HD Screen CTP Plate Offset Printing Densitometer 16G Storage
720HD Screen CTP Plate Offset Printing Densitometer 16G Storage
720HD Screen CTP Plate Offset Printing Densitometer 16G Storage
720HD Screen CTP Plate Offset Printing Densitometer 16G Storage
Specifications
Brand Name :
EcooGraphix
Model Number :
Ecoo Densimeter
Certification :
ISO9000, CE
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C, T/T
Supply Ability :
10,000 Sets/Year
Delivery Time :
25 Days
Packaging Details :
Standard Export Packing
Price :
Negotiable
Type :
Plate Densitometer
Measuring Time :
1s
Repeatability :
± 0.02 D(density), ± 1%(dot area)
Magnification :
5-200
Screen :
720HD LCD Touchable Screen
Image Format :
BMP
Storage :
16G
Battery type :
Rechargeable lithium battery
Description

Offset Printing Prepress DOT Densitometer For CTP Plate

ி Brief Introduction

Dot mainly expresses hue and gradation in printing industry. They are foundation of copy and color reproduction of printed products.

The advanced dot measurement technology is used for detecting and controlling plate and quality of dot. It supports all kinds of screening technologies used at present including amplitude screening, frequency modulation screening, specialized screening and hybrid screening technology.

ி Specification

Model

Ecoo Densitometer


Magnification

5-200


Screen

720P HD LCD touchable screen


Operation system

Android 5.0


Digital zoom

2


Image format

BMP


Net weight

300g


Set weight

500g


Image size

1280*720


Lighting

White light LTD*8pcs


Measuring time

1 s


Repeatability

± 0.02 D(density), ± 1%(dot area)


Interface

Micro USB 2.0, HDMI


Storage

16GB


ROM

2GB


Battery capability

3200mAh


Battery type

Rechargeable lithium battery


Network

WIFI


Dimension

185*70*55 mm


Sensor

CMSO 1.3 megapixel

​

Densitometer
Model Ecoo Densitometer
Magnification 5-200
Screen 720P HD LCD touchable screen
Operation system Android 5.0
Digital zoom 2
Image format BMP
Net weight 300g
Set weight 500g
Image size 1280*720
Lighting White light LTD*8pcs
Measuring time 1 s
Repeatability ± 0.02 D(density), ± 1%(dot area)
Interface Micro USB 2.0, HDMI
Storage 16GB
ROM 2GB
Battery capability 3200mAh
Battery type Rechargeable lithium battery
Network WIFI
Dimension 185*70*55 mm
Sensor CMSO 1.3 megapixel

​

ி Characteristics

♥ Android OS with HD 720 capacitive touching screen, storage of shooting and measured data and wireless network transmission.

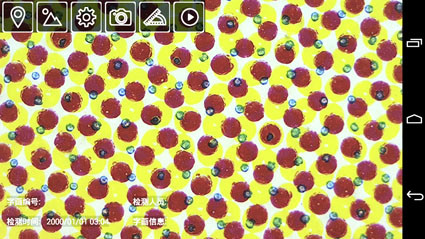

♠ Real time HD shooting of micro image dots for reveal reduction quality of dots in detail.

♦ Measurement APP is equipped with advanced image processing technology that ensures precise measure data, and eight measuring instruments for satisfying measurement of not only daily dot ratio and screening lines, but also measuring of length, angle and area of dots and lines.

♣ Electronic precise focusing with step motor to coordinate lens for a sharply clear focusing.

♥ Convenient data storage through built-in one-button shoot.

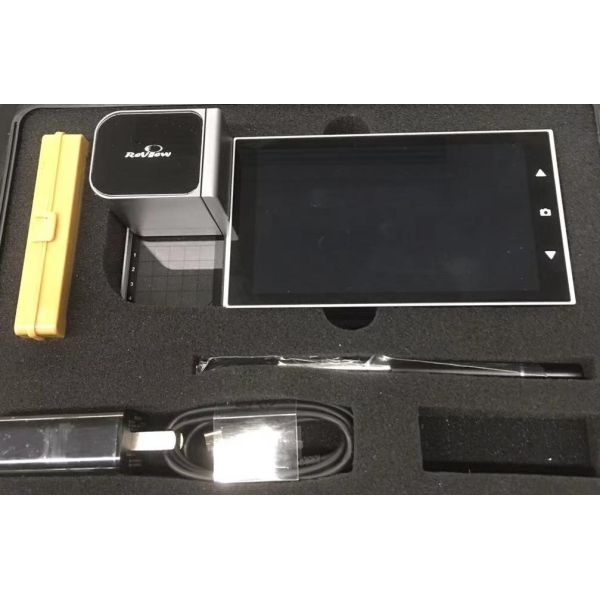

ி Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

720HD Screen CTP Plate Offset Printing Densitometer 16G Storage

720HD Screen CTP Plate Offset Printing Densitometer 16G Storage

720HD Screen CTP Plate Offset Printing Densitometer 16G Storage

720HD Screen CTP Plate Offset Printing Densitometer 16G Storage

720HD Screen CTP Plate Offset Printing Densitometer 16G Storage

ி Certificates

720HD Screen CTP Plate Offset Printing Densitometer 16G Storage

720HD Screen CTP Plate Offset Printing Densitometer 16G Storage

ி FAQ

1) What are your main products ?

A: Our main products are the Prepress CTP System(4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor) and Post Press Packing Equipments(Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching Machine, Book Binding Machine and so on) and the Printing Consumables(Offset Printing Plates, Inks, Printing Blankets, Plate Dot Densimeter).
Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.

2) Where is your factory ?

A: Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai.
You are warmly welcome to visit our factory!

3) What is your warranty for the CTPs ?

A: Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.

4) What is the Lead Time ?

A: Usually 20-30 days, and we will try our best to meet your demands.

5) Can you also supply the Workflow and RIP ?

A: Yes, we can provide the Workflow Brain New and RIP Compose V9. Machine price does not include software.

6) What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
