Printing Plate 405nm Photopolymer Violet CTP Offset Plate Low Chemical Environmental Friendly
Printing Plate 405nm Photopolymer Violet CTP Offset Plate Low Chemical Environmental Friendly
Printing Plate 405nm Photopolymer Violet CTP Offset Plate Low Chemical Environmental Friendly
Printing Plate 405nm Photopolymer Violet CTP Offset Plate Low Chemical Environmental Friendly
Specifications
Brand Name :
EcooGraphix
Model Number :
ECOO-V
Certification :
ISO9000, CE
Place of Origin :
China
MOQ :
1,000 Square Meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
15,000,000 Sqm Per Year
Delivery Time :
25 Days
Packaging Details :
Standard Export Packing
Plate Type :
Violet plate
Run Length :
100,000 impressions unbaked. Actual run length may vary according to press/paper/ink conditions.
Exposure Energy :
70-90uj/cm2 (based on platesetter and developing condition)
Resolution :
2%-98% @150lpi (depending on capability of imaging device)
Substrate :
Electrochemically grained and anodized aluminum
Maximum Short grain width :
1320mm
Brush Speed :
100rpm
Description

Eco-Friendly Low Chem Negative Working Long-Run

Violet CTP Offset Plate

1. Application

EcooGraphix ECOO-V is an environmental friendly product. Compared with normal violet CTP plate, ECOO-V plate keeps original photosensitive features and printing compatibility and has following advantages:

Ⅰ. Eco-Friendly: applied with low PH finisher during washout treatment, reducing chemical consumption and liquid waste


Ⅱ. Stable Developing Performance: compatible with most brands of violet plate developer and less sensitive to PH value of finisher

Ⅲ. Lower Investment And Maintenance Cost: can work with simplied processor, which removes prewash, post-rinse and gumming steps from conventional processor

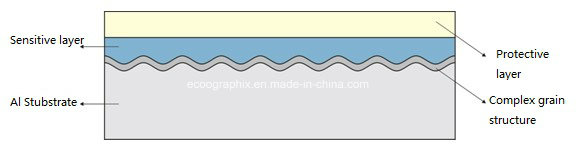

Ⅳ. Higher Run Length: outside protective layer protects sensitive layer from damage, making more impressions per plate

2. Specification

Model ECOO-V
Plate Type Low chemistry violet plate, negative printing
Application Newspaper Printing
Substrate Electro Chemically Grained and Anodized Aluminum
Gauge 0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum Short Grain Width Maximum width 1320 mm
Developer Developing gum
Length Of Run 100,000 impressions unbaked
Plate Setters Capability All the main brands violet CTP in market, laser power no less than 30 mw
Aluminum Standard 1050 Alloy
Exposure Energy 70-90 uj/cm²(based on plate setter and developing condition)
Developing Time 20±3 sec
Developing Temperature 28±2ºC
Spectral Sensitivity 405 nm
Resolution 2-98% @150 LPI
Preheat 95-110ºC
Brush Speed 100 rpm
Shelf Life 12 months under recommended storage conditions
Storage And Handing

Store plates flat in their packaging, away from excessive cold, heat or high humidity;
Recommended condition is: temperature 15-28ºC and RH between 30-70%;
Handle with care, the maximum height is 1.2m;
Open the box under yellow light. Sealed the box with remained plate to avoid moisture.

3. Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

Printing Plate 405nm Photopolymer Violet CTP Offset Plate Low Chemical Environmental Friendly

Printing Plate 405nm Photopolymer Violet CTP Offset Plate Low Chemical Environmental Friendly

Printing Plate 405nm Photopolymer Violet CTP Offset Plate Low Chemical Environmental Friendly

Printing Plate 405nm Photopolymer Violet CTP Offset Plate Low Chemical Environmental Friendly

Printing Plate 405nm Photopolymer Violet CTP Offset Plate Low Chemical Environmental Friendly

Printing Plate 405nm Photopolymer Violet CTP Offset Plate Low Chemical Environmental Friendly

4. Certificates

Printing Plate 405nm Photopolymer Violet CTP Offset Plate Low Chemical Environmental Friendly

Printing Plate 405nm Photopolymer Violet CTP Offset Plate Low Chemical Environmental Friendly

5. ​FAQ


Q1: How long is the lead time?
A: The lead time is normally 30 days.


Q2: Do you offer free plate samples?
A: Yes, we offer free testing samples but with delivery fee collected on buyer's side.


Q3: How do you guarantee stable quality?
A: There are 3 inspecting procedures:

1) Automatic 24h scanning detector;

2) Random sampling per 15 mins at the producing line;

3) Manually full inspection.


Q4: Can I use your plate to replace my regular violet plate, the preheat/prewash 6-stage stuff?
A: Our violet plate can be used as regular violet plate and as violet low-chemical one. It works with regular developer and low-chemistry developer.


Q5: What is the payment term?
A: Normally, for telegraphic transfer(or wire transfer), 30% TT deposit and 70% before shipping is acceptable. Or irrevocable letter of credit.
