Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw
Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw
Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw
Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw
Specifications
Brand Name :
EcooGraphix
Model Number :
ECOO-TDS 1060
Certification :
ISO9000, CE
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Year
Delivery Time :
45 Days
Packaging Details :
Standard Export Packing
Classification :
Foil Stamping Die Cutting Machine
Maximum Sheet(mm) :
1060 X 740
Minimum Sheet Size(mm) :
400 X 360
Max. Hologram Stamping Plate(mm) :
6000
Maximum Speed(S/H) :
7500
Max. Die Cutting Size(mm) :
1040 X 730
Max. Stamping Size(mm) :
1020 X 720
Stock Range :
Cardboard 90-2000g/sqm (E, B Flute)
Foil Reel Core(mm) :
25(1") 76(3")
Description

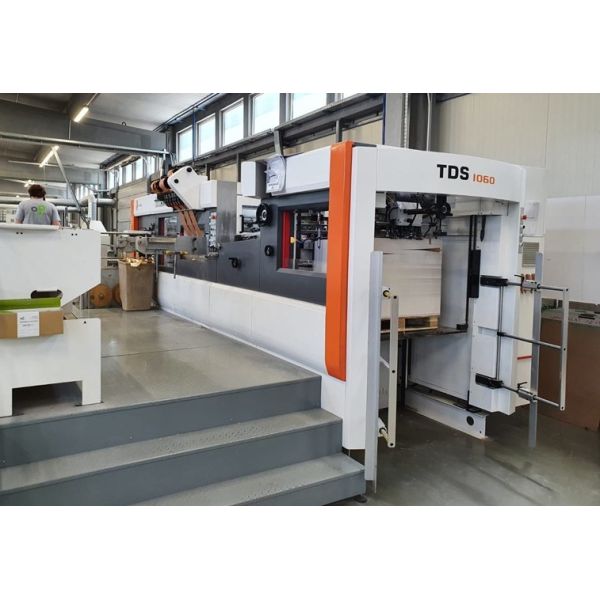

Automatic Die Cutting And Hot Foil Stamping Machine TDS1060

○ • ○ • ○ • Foil Stamping Die Cutting Machine Brief Introduction • ○ • ○ • ○

TDS 1060 automatic foil stamping machine adopts high quality pre-pulled imported chains to drive gripper bars. Also central line on the die cutting chase and the integrated side lay of pushing and pulling improve working efficiency.



○ • ○ • ○ • Specification • ○ • ○ • ○
Model
ECOO-TDS 1060

Maximum sheet(mm)
1060x740

Minimum sheet size(mm)
400x360

Max. Die cutting size(mm)
1040x730

Max. Stamping size(mm)
1020x720

Height of cutting rules(mm)
23.8

Maximum pressure(N)
300x104

Inside chase size(mm)
1120x760

Stock range
Cardboard 90-2000g/m²(E, B flute)

Min. Gripper margin(mm)
4

Maximum speed(s/h)
7500

Max. Hologram stamping plate(mm)
6000

The thickness of stamping plate
5

Longitudinal feeding shafts
3 (Optional 6)

Transversal feeding shafts
2

Feeding pile height(mm)
1500

Delivery pile height(mm)
1100

Electric heating system
12 zones

Min. Foil width(mm)
15

Foil reel core(mm)
25(1") 76(3")

Rated power(kw)
46

Air supply
0.8-1.0 MPa, ≥0.6m3/min

Overail dimension(mm)
6000 x 4530 x 2250

Weight of machine(kg)
18000
Model ECOO-TDS1060
Maximum sheet(mm) 1060x740
Minimum sheet size(mm) 400x360
Max. Die cutting size(mm) 1040x730
Max. Stamping size(mm) 1020x720
Height of cutting rules(mm) 23.8
Maximum pressure(N) 300x104
Inside chase size(mm) 1120x760
Stock range Cardboard 90-2000g/m² (E, B flute)
Min. Gripper margin(mm) 4
Maximum speed(s/h) 7500
Max. Hologram stamping plate(mm) 6000
The thickness of stamping plate 5
Longitudinal feeding shafts 3 (Optional 6)
Transversal feeding shafts 2
Feeding pile height(mm) 1500
Delivery pile height(mm) 1100
Electric heating system 12 zones
Min. foil width(mm) 15
Foil reel core(mm) 25(1") 76(3")
Rated power(kw) 46
Air supply 0.8-1.0 MPa, ≥0.6m3/min
Overail dimension(mm) 6000 x 4530 x 2250
Weight of machine(kg) 18000
​



○ • ○ • ○ • Application • ○ • ○ • ○

Automatic foil stamping machine also named hot stamping die cutting machine. This model are commonly used for wine package, cigarette package, cosmetic package, food package and etc.



○ • ○ • ○ • Details • ○ • ○ • ○

Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw

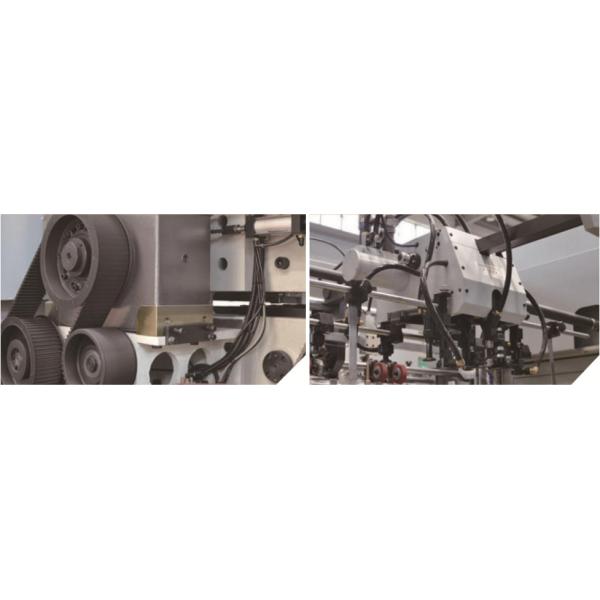

Taiwan OEM Gearbox
Taiwan OEM Gearbox, ensures minimum space between the input and output of drive from gearbox in order to maintain Gripper accuracy.

Taiwan OEM feeder
Taiwan OEM feeder, assures stable and smooth paper feeding, suitable for stocks from thin paper to 4mm corrugated board.

Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw

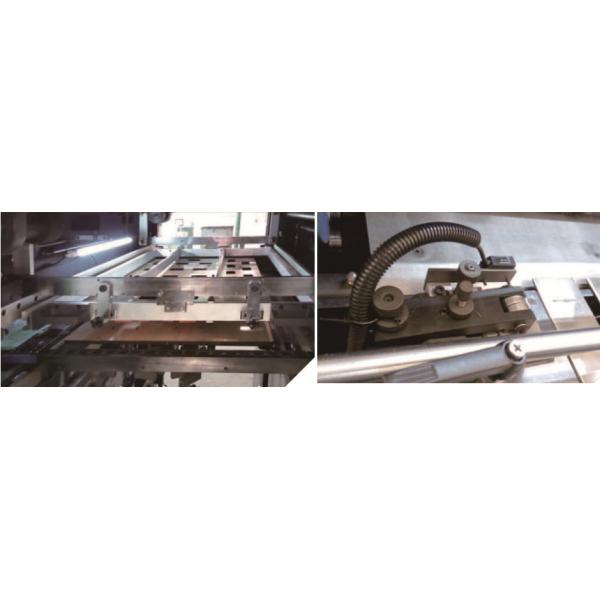

Stripping unit
Smart stripping design leads to quick make readies and job Change-over, together with accurate stripping even with Complex jobs.

Taiwan OEM Side Lay
Both pull and push functions integrated in one side lay, easy and convenient setting is obtainable, side lay to apply to the Stable positioning of all kinds of paper running at high speed.




○ • ○ • ○ • Producing And Packaging • ○ • ○ • ○

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw

Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw

Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw

Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw

Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw

Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw



○ • ○ • ○ • Certifications • ○ • ○ • ○

Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw

Automatic Foil Stamping Die Cutting Machine 7500s/h 46kw




○ • ○ • ○ • FAQ • ○ • ○ • ○

Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: Where is your factory ?


A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!


Q3: Is there any certification for your CTP Processor ?


A: Yes, all our machines have been certified by SGS and CE.

Q4: Can you also supply the Workflow and RIP ?


A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.


Q5: What about the installation and after-sales technician support ?


A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
