Specifications
Brand Name :
ECOOGRAPHIX
Model Number :
ZJR450
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300SET
Delivery Time :
about 20days
Packaging Details :
standard export packing
Printing speed :
80 m/min
Printing color :
1-8colors
Max. web width :
450mm
Substrates :
PET, OPP, CPP, PP and so on
Warranty :
One Year
Weight :
2150KGS
Description

PP Transparent Film Adhesive Label Flexo Printer with Die Cutting and Varnishing

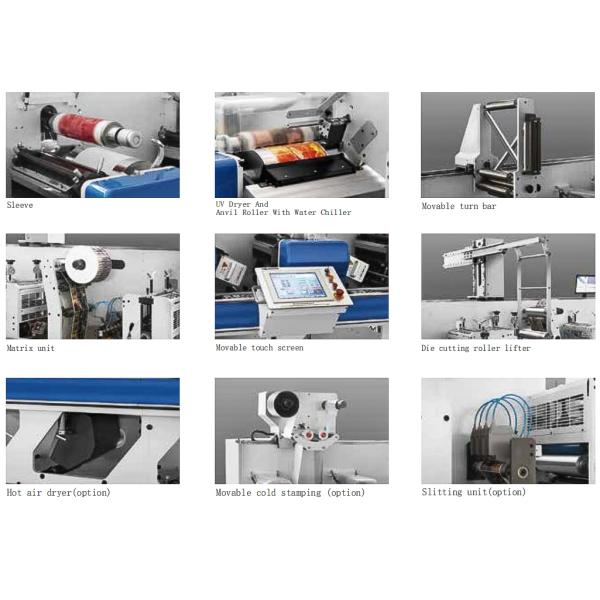

Main Features

1. The whole machine adopts the latest servo control system from Germany and each printing unit is driven by independent servo motor. There are 23 servo motors in total for 8color machine which
ensure the accurate registration during high speed running.
2. The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduce the maintenance
3. Fast and easy Pressure adjustment of printing or ink transferring: Printing roller run by bearer, it’s not necessary to adjust the pressure when change the roller, or at most ­ne adjust for special job.
4. Anvil roller equips with water chiller, it’s good for ­lm material as well.
5.Suitable for printing variety ­lm material, such as PET, OPP, CPP, PP and so on.


Model Ecoo-ZJR350 Ecoo-ZJR450 Ecoo-ZJR650
Max. Printing speed 180m/min 180m/min 180m/min
Printing color 4-12 colors 4-12 colors 4-12 colors
Max. web width 360mm 470mm 670mm
Max. printing width 350mm 450mm 650mm
Max. unwinding diameter 900mm 900mm 1000mm
Max. rewinding diameter 900mm 900mm 1000mm
Printing length 241.3-603.25mm 241.3-603.25mm 304-730.25mm
Dimensions (L×W×H) 10.83m x 1.56m x 1.52m 10.83m x 1.68m x 1.52m 10.0m×1.88m×1.56m
for 8colors, 3 die cutting stations for 8colors, 3 die cutting stations No die cutting stations


MAIN CONFIGURATION:

Description Brand Quantity Origin
Printing roller 3sets China
Anilox roller Auclean/Laser 1set China
Unwind tension controller Mitsubishi 1set Japan
Rewind tension controller ZXTEC 1set China
Main motor Wannan 1set china
Transducer Mitsubishi 2sets Japan
Magnetic power brake/cluth Ningxia 3sets China
Electromagnetic valve Airtac 2 set Taiwan
Inverter Schneider 1set Frence
AC Contactor Schneider 2pcs France
Time relay C-LIN 1pc China
Solid relay Omron 6pcs Japan
Micro relay Weidmiiller 2pcs Germany
Temperature Controller Yuyao 6pcs China
Air switches Siemens 8pcs Germany
Low pressure wiring Schneider All France
All the bearing NSK/CHINA JAPAN/CHINA
