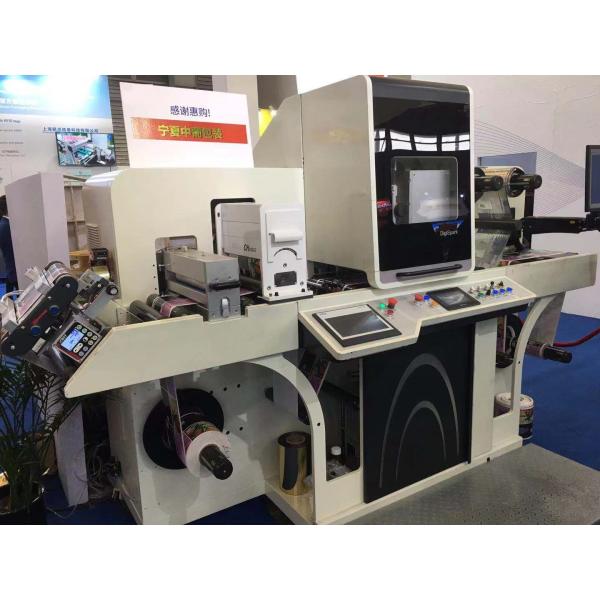

Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing
Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing
Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing
Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing
Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing
Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing
Specifications
Brand Name :
EcooGraphix
Model Number :
EcooSpark
Certification :
ISO9000, CE
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Year
Delivery Time :
60 Days
Packaging Details :
Standard Export Packing
Price :
Negotiable
Machine Type :
Label Enhancing Machine
Printing speed :
6m/min - 50m/min(depend on polymer layer thickness)
Polymer Layer Thickness :
360*360 dpi, up to 1440*360 dpi
Printing Technology :
UV Piezo Dod-Inkjet
Unwinder Diameter/ Rewinder Diameter :
Max. 700mm, Core 76mm
Rewinder diameter :
Max. 700mm, Core 76mm
Printing Image Width :
288mm (Extendable to 330 mm)
Ink Curing :
Inter UV-LED Pre-Curing/ Full Curing by UV-LED
Description

Digital Synergistic Label Enhancer With Foil Stamping And Varnishing

▼ Introduction

EcooGraphix's newly developed EcooSpark digital printing machine realizes digital synergistic processes such as digital varnish, 3D crystal bright, partial glazing, cold stamping, embossing, etc., without the need for plate making. It can reduce costs and instantly realize unique visual effects of printing. This is a digital post-press equipment that creates new profit points for users, and is a digital efficiency-enhancing printing machine.

▼ Specification

EcooSpark Digital Foil Stamping And Varnishing Enhancing Machine

Model
EcooSpark

Printing Technology
UV Piezo DoD-inkjet

Resolution
360*360 dpi, up to 1440*360 dpi

Printing speed
6m/min - 50m/min(depend on polymer layer thickness)

Variable image system
PDF, Optimized PDF, Optional barcode system

Supported image standards
PDF, PDF/VT, TIFF, JPEG, BMP & other data base files

Substrates
Offset, Digital, Plastics, Laminated and Coated substrates

Printing image width
288mm (extendable to 330 mm)

Polymer
WB-DS-Clear Polymer

Polymer layer thickness
From 10 up to 250 microns

Ink curing
Inter UV-LED Pre-curing/ Full curing by UV-LED

Unwinder diameter
Max. 700mm, Core 76mm

Rewinder diameter
Max. 700mm, Core 76mm

Substrates thickness
30-400 micro

Substrates width
Max. 330mm

Press with Foil station
Machine dimensions(LxHxW): 3500mm x 1900mm x 1800mm

Operating environment Temperature:
15ºC-30ºC, Humidity: 40%-80% relative humidity

Electrical requirements
Voltage: 3x380, ±5% 3 phases +G+N;
Frequency: 50/60 Hz; Current: Avg. 58.6 Amps 23KW

Weight
2800kg
​
EcooSpark Digital Foil Stamping And Varnishing Enhancing Machine
Model EcooSpark
Printing Technology UV Piezo DoD-inkjet
Resolution 360*360 dpi, up to 1440*360 dp
Printing speed 6m/min - 50m/min(depend on polymer layer thickness)
Variable image system PDF, Optimized PDF, Optional barcode system
Supported image standards PDF, PDF/VT, TIFF, JPEG, BMP & other data base files
Substrates Offset, Digital, Plastics, Laminated and Coated substrates
Printing image width 288mm(extendable to 330 mm)
Polymer WB-DS-Clear Polymer
Polymer layer thickness From 10 up to 250 microns
Ink curing Inter UV-LED Pre-curing/ Full curing by UV-LED
Unwinder diameter Max. 700mm, Core 76mm
Rewinder diameter Max. 700mm, Core 76mm
Substrates thickness 30-400 micro
Substrates width Max. 330mm
Press with Foil station Machine dimensions(LxHxW): 3500mm x 1900mm x 1800mm
Operating environment Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity
Electrical requirements Voltage: 3x380, ±5% 3 phases+G+N; Frequency: 50/60 Hz
Current: Avg. 58.6 Amps 23KW
Weight 2800kg
​
▼ Features

Sturdy structure (double wall panel design)
Thick and thin materials, stability, mature platform
High stability
Good material applicability
No heating required
LED UV + water cooling roller
Suitable for ordinary cold foil

High quality-details, sharp edges:
Less heat, higher stability
Patented technology-better detail performance
Multi-process completed at one time
Customizable


▼ Workflow

Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing

▼ EcooSpark Advantage

Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing

▼ Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing

Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing

Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing

Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing

Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing

▼ Certifications

Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing

Roll to Roll Digital Label Enhancer With Foil Stamping Varnishing

▼ FAQ


Q1: How long is the lead time ?


A: The lead time is about 60 days. We can accelerate for emergency cases.


Q2: Is there any certification for your machine ?


A: Yes, all our machines have been certified by SGS and CE.


Q3: How long is the warranty period ?


A: EcooGraphix guarantees 1 year of warranty for spare parts(except print heads).


Q4: What is your normal payment term ?


A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.
