High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating
High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating
Specifications
Brand Name :
EcooGraphix
Model Number :
ECOO-CTCP-D
Certification :
ISO9000, CE
Place of Origin :
China
MOQ :
1,000 Square Meters
Payment Terms :
L/C, T/T
Supply Ability :
2,000,000 Sqm Per Year
Delivery Time :
30 Days
Packaging Details :
Standard Export Packing
Price :
Negotiable
Plate Type :
CTCP Plate
Spectral Sensitivity :
400-410nm
Resolution :
1-99% @200 LPI & 20 uFM
Run-Length (UV Ink Unbaked) :
70, 000 Impressions with UV Ink Unbaked
Run-Length (Unbaked) :
200, 000 Impressions Unbaked
Run-Length (Baked) :
1, 000, 000 Impressions Baked
Exposure Energy :
50-65uj/cm²(based on plate setter and developing condition)
Shelf Life :
12 Months under recommended storage conditions
Description

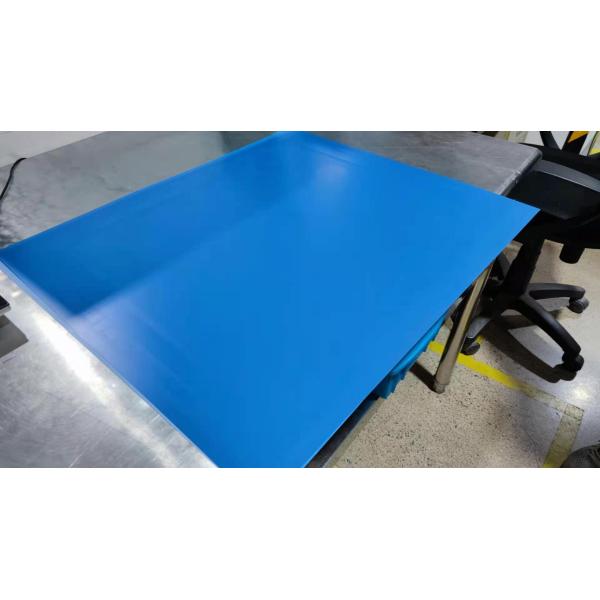

EcooGraphix Offset Printing Plate High Sensitivity UV/Ctcp Plate

(¦3[▓▓] Brief Introduction

EcooGraphix Positive CTCP Plate(Double Layer) are made for UV based ink. It is also compatible with an ordinary ink.
It is use for long run length high grade offset commercial and newspaper printing.




(¦3[▓▓] Characteristics


Features
- Positive writing CTCP(conventional) plate
- Double layers system
- Made with high grade aluminum from Europe
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 80,000 impressions
- UV ink up to 50,000 impressions
- Ability to print both AM and FM screening

Advantages
- Resist UV-ink; Workable with both normal ink and UV ink
- Mature product, good stability and wide processing latitude
- Long run length with non-ablative coating
- Being adaptive to most of platesetters, processors and solutions.

Benefits
- Very quick turn around time on press
- Robust coating and consistent reliablity
- Compatible with most developers
- Premium quality of dot reproduction and long run length



(¦3[▓▓] Specification
Model
ECOO-CTCP-D

Plate Type
No preheat, positive working, UV sensitive plate, double coated, no need baking for UV ink printing

Application
Newspaper printing, commercial printing and package printing

Substrate
Electrochemically Grained and Anodized Aluminum

Gauge
0.15, 0.20, 0.25, 0.30, 0.40 mm

Maximum short grain width
Maximum width 1,350 mm

Developer
Any positive plate developer or our own developer

Length of Run
200,000 impressions unbaked;
70,000 impressions with UV ink unbaked;
1,000,000 impression baked.

Plate setters Capability
All the main brands violet CTP in market, laser power no less than 30 mw

Aluminum
Standard 1,050 Alloy

Exposure energy
50-65uj/cm²(based on plate setter and developing condition)

Developing time
20 ± 3 sec

Developing Temperature
28 ± 2ºC

Spectral Sensitivity
405 nm

Resolution
1-99% @200 LPI & 20 uFM

Shelf life
12 months under recommended storage conditions

Storage and handing
Stored in a cool and dry environment, away from excessive cold, heat.

Product highlight
High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate
​
Model ECOO-CTCP-D
Plate Type No preheat, positive working, UV sensitive plate, double coated, no need baking for UV ink printing
Application Newspaper printing, commercial printing and package printing
Substrate Electrochemically Grained and Anodized Aluminum
Gauge 0.15, 0.20, 0.25, 0.30, 0.40 mm
Maximum short grain width Maximum width 1,350 mm
Developer Any positive plate developer or our own developer
Length of Run 200,000 impressions unbaked;
70,000 impressions with UV ink unbaked;
1,000,000 impression baked.
Plate setters Capability All the main brands violet CTP in market, laser power no less than 30 mw
Aluminum Standard 1,050 Alloy
Exposure energy 50-65uj/cm²(based on plate setter and developing condition)
Developing time 20 ± 3 sec
Developing Temperature 28 ± 2ºC
Spectral Sensitivity 405 nm
Resolution 1-99% @200 LPI & 20 uFM
Shelf life 12 months under recommended storage conditions
Storage and handing Stored in a cool and dry environment, away from excessive cold, heat.
Product highlight High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate

​

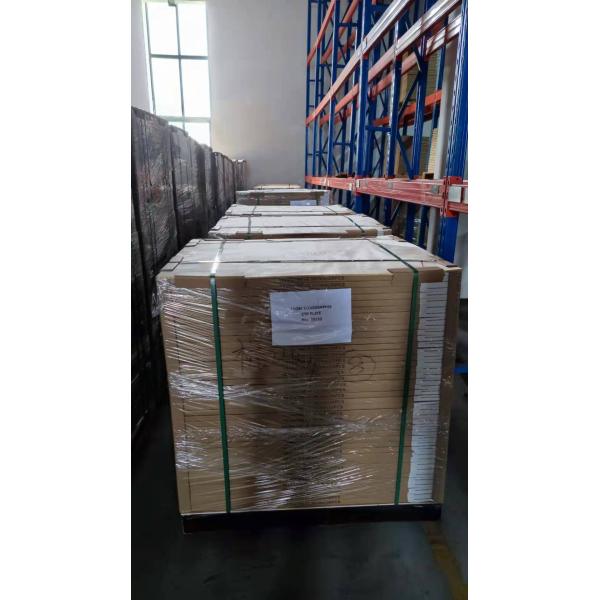

(¦3[▓▓] Producing And Packaging


From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating

High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating

High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating

High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating

High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating

High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating

High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating

High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating

High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating

(¦3[▓▓] Certifications

High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating


High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating


(¦3[▓▓] FAQ



Q1: Can I get the sample ?


A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.




Q2: What is the cost for the CTP plate sample freight ?


A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.




Q3: How long can the sample be ready ?


A: It usually takes about 3 days to prepare the sample.




Q4: Can I visit your factory ?


A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.




Q5: How many square meters CTP plates can feed one 20' container ?


A: About 20,000-25,000sqm.




Q6: Can I take my own brand and label on the packing ?


A: Yes, we can provide the OEM with the customer's brand and label.



Video ☞ https://youtu.be/t5ncCoFWb-U
