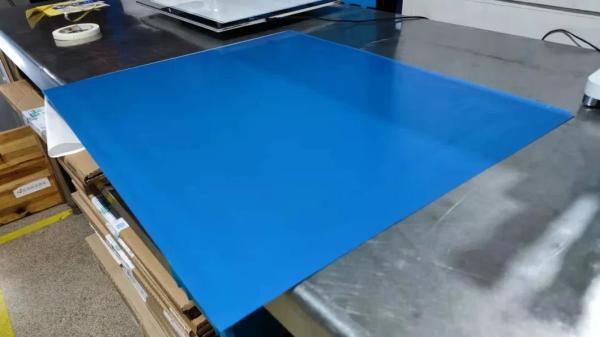

UV Ink Capable Positive Thermal CTP Plate Double Layer

400, 000 Impressions

ADVANTAGES

Ⅰ. Thermal Technology for CTP (Computer-to-Plate):

• CTP refers to the process where digital images are transferred directly onto the printing plate from a computer system. The EcooGraphix Thermal Solvent Resistance Plate is designed to work in this setup. It is thermally sensitive, meaning it requires heat to activate and form the image on the plate.
• Thermal technology provides high precision and excellent image quality, allowing for sharp, fine details in printing. This makes it ideal for high-grade commercial and newspaper printing where detail and clarity are essential.

Ⅱ. Long-Run Capability:

• The plate is specifically engineered for long-run printing. This means it can withstand many impressions (printed sheets) without losing quality. Commercial and newspaper printers often need plates that can endure thousands of prints over extended periods, and the EcooGraphix plate is durable enough to meet these demands without degradation.
• Its long-run performance helps maintain consistency in color reproduction and image fidelity across long print runs, which is crucial in high-volume environments like newspapers or large commercial print jobs.

Ⅲ . High-Grade Commercial Printing:

• The plate is designed to deliver high-quality output in commercial printing, where print resolution and consistency are essential for producing professional-grade materials such as brochures, catalogs, and other marketing materials.
• Its smooth surface and precise imaging capabilities ensure that the printed materials meet the high standards required by top-tier commercial print jobs.

Ⅳ. Newspaper Printing:

• Newspaper printing often requires plates that can handle high-speed presses while maintaining sharpness and clarity. The EcooGraphix plate is well-suited for this, delivering excellent ink transfer and consistent results even on newsprint, which tends to absorb ink differently from coated papers.
• The plate's resilience ensures that it can withstand the wear and tear of high-speed, high-volume printing typical in the newspaper industry.

Ⅴ. Solvent Resistance:

• One of the key features of the EcooGraphix plate is its solvent resistance, which refers to its ability to withstand exposure to various chemicals and solvents used in the printing process (e.g., cleaning solutions, fountain solutions, etc.).
• Solvent resistance is important because it helps maintain the integrity of the plate over time. Plates with poor solvent resistance may degrade or become damaged when exposed to these substances, leading to a reduction in print quality and overall lifespan. The EcooGraphix plate’s resistance to solvents ensures that it performs well under various working conditions.

Ⅵ. UV Ink Compatibility:

• The EcooGraphix plate is also compatible with UV inks, which are increasingly popular in commercial printing because they dry quickly and provide vibrant, durable colors. UV inks require specific plate materials to ensure optimal adhesion and print quality, and this plate is engineered to meet those needs.
• The plate’s ability to perform well with UV inks makes it versatile for use in a wide range of printing applications, including those requiring special coatings or finishes.

SPECIFICATION

Model
ECOO-TSR

Plate Type
Positive Thermal Digital Plate

Application
Commercial, newspaper, and packaging print

Substrate
Electrochemically-grained and Anodized lithographic aluminum

Gauge
0.15, 0.20, 0.24, 0.30, 0.40(mm)

Maximum short grain width
Maximum width 1280 mm

Coating
Blue

Length of Run
Unbaked: 400,000 impressions
UV Ink: 100,000 impressions

Plate setters
All thermal CTP machine

Aluminum
Standard 1050 Alloy

Exposure energy
120 - 150 mj/cm²

Developing time
25 - 30 sec

Spectral Sensitivity
780 - 850 nm

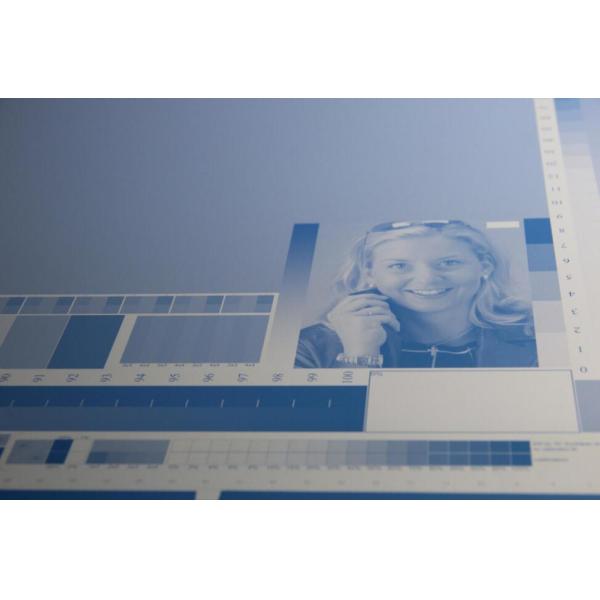

Resolution
1-99% @ 400LPI

Developer
ECOO DV-T Series Developer

Processing temperature
23ºC +/- 2ºC

Processing Speed
0.80 - 1.20 m/min

Safelight
Daylight handling

Shelf life
12 months under recommended storage conditions

Packaging
Available in all standard formats, including bulk packaging options such as APL packaging

Storage and handling
Stored in a cool and dry environment, away from excessive cold, heat and humidity

​

​

FEATURES

- Positive writing thermal plate

- Double layers system

- Made with a high-grade aluminum base

- Wide adaptability for different plate setter brands

- Non-ablative coating

- Run lengths up to 150,000 impressions

- UV ink up to 80,000 impressions

- Ability to print both AM and FM screening

BENEFITS

- Extensive adaptability, saving from waste during possible swift of consumables' supplying

- Quick turnaround time on press

- Compatible with common developers

- Premium quality of dot reproduction and super long run length

DETAILS

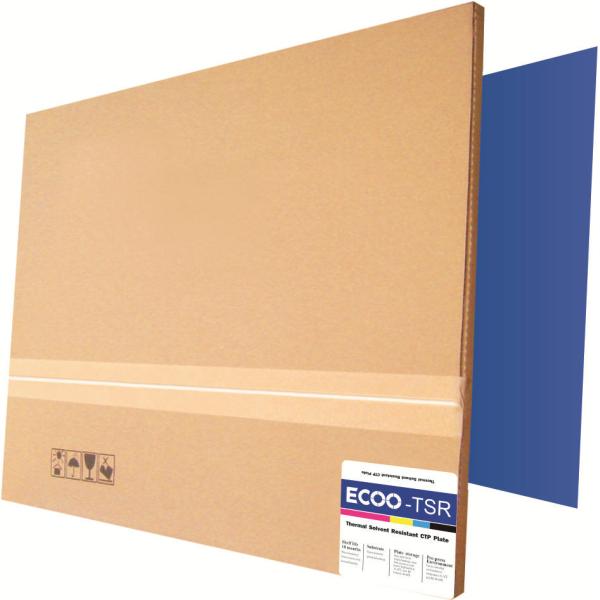

PRODUCING AND PACKAGING

From production to delivery, we make every detail very carefully to guarantee good product quality and service to customers.
