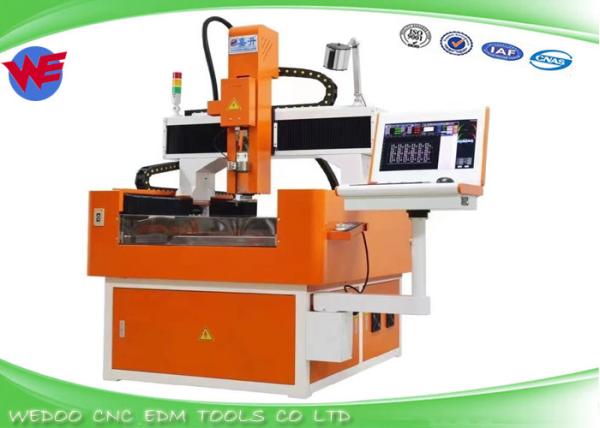

JS-8060CNC Jiasheng Precision EDM Drilling Machine Large Stroke 800*600mm
JS-8060CNC Jiasheng Precision EDM Drilling Machine Large Stroke 800*600mm
Specifications
Brand Name :
Jiasheng (Castek)
Model Number :
JS-8060CNC
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
TT, Western Union,
Supply Ability :
1000 pcs per month
Delivery Time :
within 5-15 days after payment
Packaging Details :
Packing in wooden case
Name :
EDM Drill Machine
Items No. :
JS-8060CNC
Material :
Metal
Work stroke :
800*600mm
Maching hole size :
0.15-3.0mm
Model :
CNC
Color :
Orange
Operating system :
Windows 7
Description


Jiasheng High Precistion Large Stroke EDM Drilling Machines JS-8060CNC

1. For 0.15-3.0 mm Electrode Tubes.

2. Large Work Travel 800*600mm

3.Prefessional research ,fine hole discharge drill machine .




Details:

Machine Weight 1200kg Maximum working load 800kg
Table Travel 800*600mm Machine Dimensions (cm) 220*167*190
X-axis Travel 800mm Input Power (KAV) 380V 3KVA
Y-axis Travel 600mm Max Processing Current (A) 30
Z1 axis servo up/down Travel 450mm Voltage Setting (grade) 3
Z2 axis auxiliary up/down Travel 320mm Discharge pulse width(segment) 0-99
Work Table sink area 1220*800mm Rest frequency (segment) 0-99
Max Thickness Workpiece 400mm Encoder Wanhao
Maching Hole size 0.15-3.0mm Operating System Windows 7
Packing wooden case Parameter reading Method Database


Products show:

JS-8060CNC Jiasheng Precision EDM Drilling Machine Large Stroke 800*600mm

JS-8060CNC Jiasheng Precision EDM Drilling Machine Large Stroke 800*600mm

Our main products :

* EDM Drilling Machine


* EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact ,belt ,guide base , discharge cable…

* EDM Consumables: Brass wire , moly wire , JR3A ,Ion exchange resin ,kc-12

* EDM Water Filters

* EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber seal , drill chuck

* EDM Copper / Brass tube : sighle hole ,double hole , multi hole electrode tube

* EDM Copper tappers

* High speed wire cutting EDM Parts :guide pully , pully assembly , bearing ....

* Jig tools , jig holders


We are your reliable supplier ,Just contact with us now!
