M133 EDM Wire Guide For Mitsubishi Wire Cutting Machine EDM Diamond Wire Guide

MITSUBISHI _compress.pdf

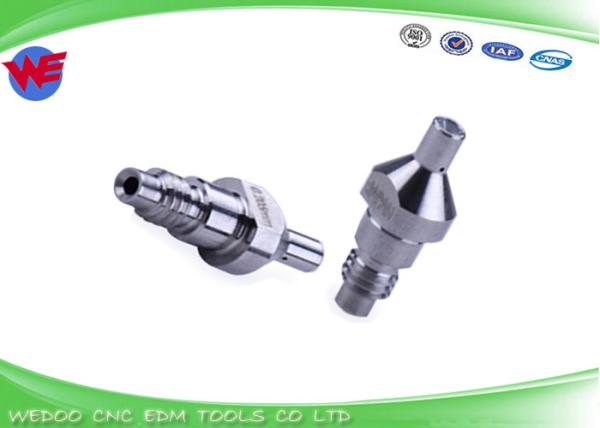

Lower Wire Guide

Dia : 0.105mm; 0.155mm;0.205mm, 0.21mm; 0.22mm; 0.255mm; 0.26mm; 0.305mm; 0.31mm;

Original Code : X056C426G54 X056C412G53 X056C412G52 X052B243G64 X052B243G61 X052B243G65 X052B243G62

Machine Model: DWC-F1,G,H,H`,CX,SX,FX,FA,QA,RA

M133 Wire Guide For Mitsubishi machine use (Made in China)

M132 Upper Diamond Die Guide Mitsubishi 34.031.014 , DA76400, DC94100, X053C834G51, X056C412G55, ID=0.10MM

M132 Upper Diamond Die Guide Mitsubishi 34.031.015 , DA76500, X053C834G52, X055C129G59,ID=0.15MM

M132 Upper Diamond Die Guide Mitsubishi 34.031.036 , D631000, DP80800, X055C538G54, X056C833G54, X053C834G52 ID=0.20MM

M132 Upper Diamond Die Guide Mitsubishi X056C833G51 ID=0.21MM

M132 Upper Diamond Die Guide Mitsubishi 34.031.037 , D631100, DR06000, X055C538G55, X053C834G54 , X056C833G55 ID=0.25MM

M132 Upper Diamond Die Guide Mitsubishi X056C833G52 ID=0.26MM

M132 Upper Diamond Die Guide Mitsubishi 34.031.038 , D631200, DR05700, X055C538G56, X056C833G56, X055C129G53 ID=0.30MM

M132 Upper Diamond Die Guide Mitsubishi X053C834G56 , X056C833G53 ID=0.31MM

M132 Upper Diamond Die Guide Mitsubishi X053C994G52 ID=0.33MM

M133 Lower Diamond Die Guide Mitsubishi 34.032.015 , DA76000, X052B243G63, X052B346G51 ID=0.10MM

M133 Lower Diamond Die Guide Mitsubishi 34.032.013 , DA76100, X052B243G64 ID=0.15MM

M133 Lower Diamond Die Guide Mitsubishi 34.032.029 , D630000, DP77900, X052B507G54, X052B387G54, X052B243G61 ID=0.20MM

M133 Lower Diamond Die Guide Mitsubishi X052B387G51 ID=0.21MM

M133 Lower Diamond Die Guide Mitsubishi 34.032.030 , D630100, X052B243G65 ,X052B507G55, X052B387G55 ID=0.25MM

M133 Lower Diamond Die Guide Mitsubishi X052B387G52 ID=0.26MM

M133 Lower Diamond Die Guide Mitsubishi 34.032.031 , D630200, DR05900, X052B507G56, X052B387G56 ID=0.30MM

M133 Lower Diamond Die Guide Mitsubishi X052B243G62 , X052B387G53 ID=0.31MM

Details:

Photo show

Feature of Mitsubishi EDM Diamond Wire Guides

1. Using high quality raw materials of diamond (1mm thickness instead of 0.8mm thickness), ceramic , stainless steel

2. Produce by exprienced technician and engineers with Sophisticated machine equipment

3. High precision wire guide, Roundness and radius is tested by video measuring machine, tolerance

-0, +0.02mm

4. Competitive price , and large quantity wire guide in stock

5. Many size of EDM Wire Guides are available

6. Long lifetime , can be used 4 to 7 months

7. Easy to assembly ,and high precision on cutting

8. Special size ,it is available to custpmized made

If any inquiry feel free to contact us
