Pipeline Measuring Silver / Silver Chloride Reference Electrode High Stability
Pipeline Measuring Silver / Silver Chloride Reference Electrode High Stability
Pipeline Measuring Silver / Silver Chloride Reference Electrode High Stability
Pipeline Measuring Silver / Silver Chloride Reference Electrode High Stability
Specifications
Brand Name :
BESDATA
Model Number :
DES40
Certification :
ISO13485
Place of Origin :
SHENZHEN
MOQ :
2 pieces
Price :
negotiable
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Delivery Time :
2~7 days
Packaging Details :
normal box package
work field :
industrial use
material :
Ag/AgCl
Used in :
cathodic protection system
Electrode size :
customizd
size :
custom-made
function :
reference electrode
Description

Pipeline Measuring Silver/Silver Chloride Reference Electrode With High Stability

reference electrodes as the one of the most efficient ways to monitoring your cathodic protection system. When you are collecting electrochemical field data, you need quality products to perform your survey properly.

Application:

underground pipeline corrosion measurement

sea hull bottom corrosion measurement

are suitable for immersion, burial and concrete applications.

reference electrode maintains stability in dry desert soils and high moisture soils. Freezing does not affect the efficiency of the reference electrode.

Specification:

Composition: Ag/AgCl

DC offset:<150 μV

Drift:<25μv/h

Electrode impedance:≤25Ω.cm²(10Hz)

Noise:Max≤1μv

Silver-Silver Chloride reference electrode (AgAg/CI)

99.999% Pure Silver

Custom made for specific requirements

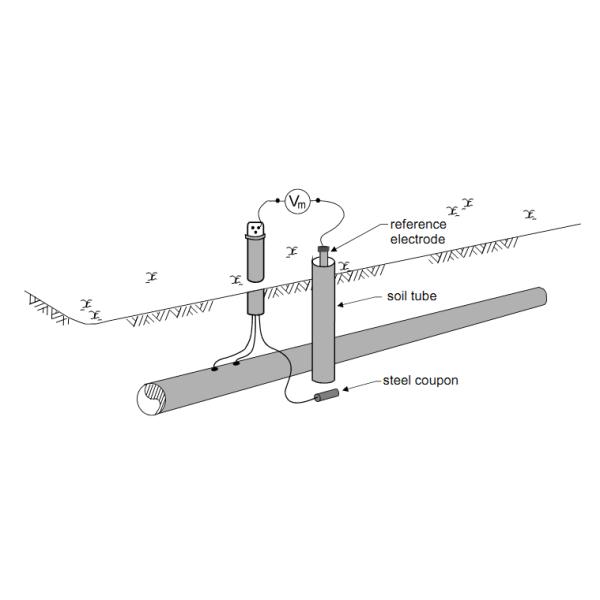

Work principle:

Pipeline Measuring Silver / Silver Chloride Reference Electrode High Stability

Order Number
Type
Sensor diameter
Sensor length
Exposed Wire
DES40
Disk Electrode
4mm
1mm
5mm
DES60
Disk Electrode
6mm
1mm
5mm
DES80
Disk Electrode
8mm
1mm
5mm
DES85
Disk Electrode
8.5mm
1mm
5mm
DES100
Disk Electrode
10mm
1mm
5mm

Other Work Environment:

Pipeline Measuring Silver / Silver Chloride Reference Electrode High StabilityPipeline Measuring Silver / Silver Chloride Reference Electrode High Stability
