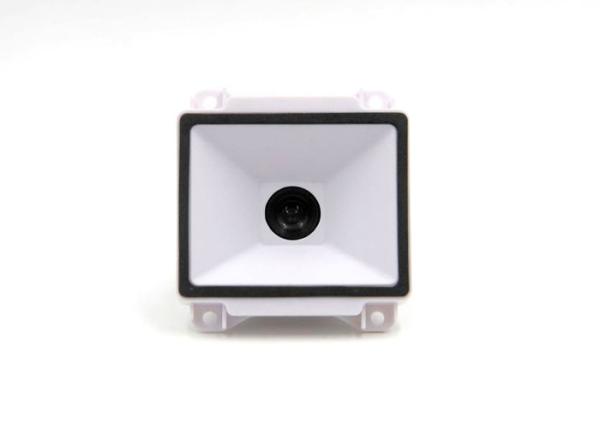

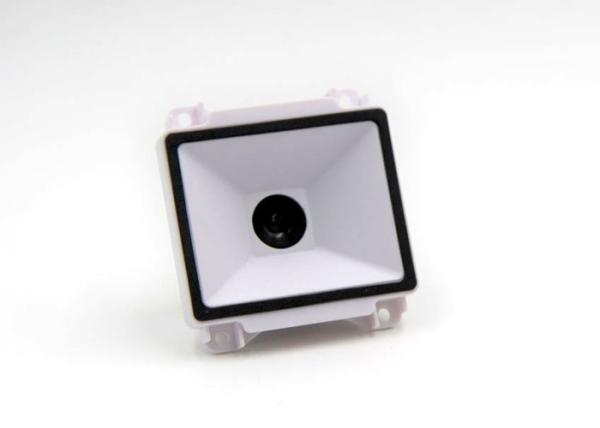

Effon Fixed Mount Barcode Scanner Long Distance With Super Large Scanning Screen
Effon Fixed Mount Barcode Scanner Long Distance With Super Large Scanning Screen
Effon Fixed Mount Barcode Scanner Long Distance With Super Large Scanning Screen
Effon Fixed Mount Barcode Scanner Long Distance With Super Large Scanning Screen
Effon Fixed Mount Barcode Scanner Long Distance With Super Large Scanning Screen
Effon Fixed Mount Barcode Scanner Long Distance With Super Large Scanning Screen
Effon Fixed Mount Barcode Scanner Long Distance With Super Large Scanning Screen
Effon Fixed Mount Barcode Scanner Long Distance With Super Large Scanning Screen
Specifications
Brand Name :
Effon
Model Number :
MS730
Certification :
CE,ROHS, FCC
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500000pieces per month
Delivery Time :
1-7 days
Packaging Details :
1pcs into a retail box
Type :
payment scanning box with super large scanning window
Scan Element Type :
CMOS
Application scenario :
Bar code payment, group purchase verification, customer service desk and other mobile phone barcode verification scenarios
Interface :
USB, TTL232
Resolution :
≥3.9mil
Decode capacity :
All 1D Barcode and 2D Barcode
Anti-knock :
Designed to withstand 1.5m(5')drops
Prompt :
buzzer indicator
Certificate :
CE FCC ROHS ISO9001
Description

Effon payment scanning box with super large scanning window

Application scenarios: City buses, corporate buses, long-distance buses, subway station gates, railway station gates, parking lots, sceneries
Zone gate, TMV cabinet, e-commerce self-lifting cabinet, smart home, smart home, storage cabinet, ATM self-service cabinet, self-service check, Inquiry terminal, queuing equipment, certificate manufacturers

Advantage:

Object Auto Sense

Build in RS232 and USB Interface

Omni Directional Reading for all 1D/2D Barcodes.

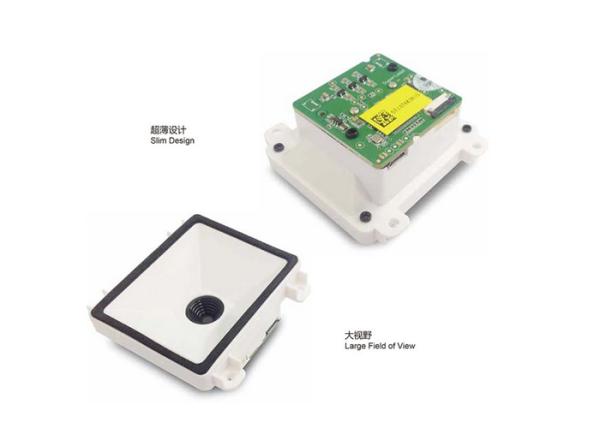

Super Large Field of View
Can Read Barcode on Screen Even Without Backlight from Cellphone.
Multiple Language Barcode Message Transfer.

Physical Characteristics
Dimensions: 65mm x 61.2mm x 36.5mm
Weight: 33g
Voltage: 3.3-5V(DC)
Working Current: 200mA
Standby Current 90mA
Peak Current 300mA
Performance Characteristics
Image(Pixels): 640 pixels (H) x 480 pixels (V)
Light Source: Illumination:6500K LED
Field of View: 72°(H)x64°(V)
Roll/Pitch/Yaw: 360° ,±65°,±60°
Motion Tolerances: >2m/s
Print Contrast: 20%minimum reflective difference
Interfaces Supported: USB,RS232
Symbology Decode Capability
1-D: UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5,Codabar Interleaved 2 of 5,Mis Plessey, GSI DataBar, China Postal,Korean Postal, etc.
2-D PDF417,MicroPDF417,Data Matrix,Maxicode,QR Code,MicroQR,Aztec,Hanxin,etc.
Minimum Resolution ≥3.9 mil
Decode Ranges
5 mil(Code 39) 10mm-30mm
13 mil(Upc-a) 10mm-80mm
User Environment
Operating Temperature: 0℃ to 50℃
Storage Temperature: -40℃ to 70℃
Humidity:

0% to 95%relative humidity,non-condensing
Shock Specifications: Designed to withstand 1.5m(5’)drops
Ambient Light Immunity: 100.000Lux.

Product tags

two sided scanner

,

double sided scanner

,

dual sided scanner
