Specifications
Brand Name :
Effon
Model Number :
PS02
Certification :
CE, FCC, RoHS, IP65
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
10000 pieces per month
Delivery Time :
1 - 7 days
Packaging Details :
1pc into a retail box, 50pcs into a Carton
Type :
Barcode Scanner
Working Mode :
Bluetooth HID, SPP, Offline mode
Scan Element Type :
2D scan engine optional
Scan Speed :
30times/s
Power :
DC 5V
Battery :
550mAh
Indicator :
LED, Beep, Motor inside
Application :
Logistics industry, Store Inventory, Libary, Warehouse etc
Scan Angle :
± 60° ,± 60° ,± 360° (skew, pitch, Roll)
Support :
1D/ 2D barcode, QR code, PDF417 code
Warranty :
2 years
Description

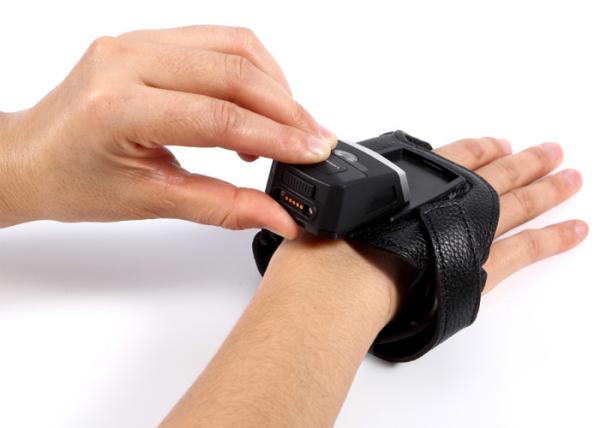

Bluetooth Courier Bar Code Glove Barcode Scanner Bluetooth Wireless 2D Scanner

PS02 is the upgrading version of finger trigger glove scanner, more than 10 million scanning button lifespan, with seperate charging cradle , such features make it mostly suitable for Logistics warehouse/ counter picking/ automotive industry and so on. PS02 wearable scanner can enable your worker's free hands in the mutiple task. It will save time and physical strength, and it can increase by 15% -30% productivity.

1. Specifications

Items
PS02 Wearable 2D Barcode Scanner
Demesion Length:53.9mm, Width: 38mm, Height:23mm
Glove scanner weight
45.65g
Electrical
Power: DC5V Typical: 300mA DC5V
Data storage
100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
Working mode
Bluetooth mode, USB mode, offline mode and RS232 mode(optional)
Scanner performance
Sensor Type:
640 (horizontal) × 400 (vertical) pixels
Decode Speed::
30 times per second
ScannerAngle:
±60°,±60°,±360°(skew, pitch, Roll)
Contrast:
>20%
Battery power
Internal Battery: Rechargeable 550mAh Li-ion Battery, Standby 30 days, working
time after full charge with good decode as below:
Continuous trigger
scanning interval
Decoding number
Working time
1S
10325
2.9hours
5S
4704
8.3 hours
10S
3871
10.7hours
Charge time:About 2hours
1D Barcode Type
UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN,
Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128
Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of 5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128 Emulation Mode for UCC/EAN Composite Codes
2D
PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro
QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post,
Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
Max. Resolution

(1 mil = 0.0254 mm)
Code 128
63mm -127mm (5mil);
PDF417
63mm -160mm (6.6mil);
PDF417
45mm - 228mm (10mil);
100%UPC
50mm -317mm (13mil);
Code 39
50mm - 495mm (20mil);
Data Matrix
38mm - 343mm (20mil);
QR Code
38mm -279mm (20mil).
OS
IOS,Android, Windows, Mac
Certificate
CE, Rohs, FCC, EN60950, IEC60825, IP64, EMC, 1.5m drop test(500 times).
Utility Model Patent No.: ZL201420211350.8
Temperature
Operating: -20°C to 60°C (-4°F to 140°F);
Storage: -40°C to 70°C (-40°F to 158°F)
Humidity
5% to 90% (non-condensing)

2. Produc features

3. Instruction

Shenzhen Effon LTD was founded in 2008, and registered in Hong Kong. It is a well-known domestic modern enterprise focused on technology research, product development, manufacturing, sales and services of wearable barcode equipment and embedded equipment. We specialize in mag-stripe swipe card reader, wearable barcode scanner and Point of Sale peripheral products. We as an enterprise do early independent research and development of wearable barcode equipment.

4. Core Competencies and Advantages

As a pre-requisite for R&D, the company’s wearable devices and Point Of Sale card readers have all passed various domestic and international certifications such as CE, FCC, ROHS. The company has established good working relationships with BMW, Wal-Mart, other domestic and foreign system integrators and independent software vendors. The company is in the process of establishing a dealer network throughout Europe and Americas and is also in the process of establishing a comprehensive after sales service system to ensure rapid response and service to customers. In addition to all this, our company also has its own iOS, Android software, new product development capabilities along with a team of hardware engineers and associated infrastructure for testing and development. OEM/ODM flexible customization services in bulk or in small batches can be performed for customers from all walks of life. We offer 100% assistance to quickly turn around any customization requirements.

5. Why choose us?

1: 2 years quality guarantee (all items will be checked 200% before shipping)
2: Directly factory manufature (quantity price will be favorable)
3: 10 years experience techincal team Online for technical support and Software upgrade
4: OEM is accepted for small order
5: Excellent service of the express which can make you receive the goods easily
6: After-sale service: We will undertake shipping charges if items caused by quality problem within 2 years
7: CE, RoHS, FCC certifcation approved

6. Contact us
