Specifications
Brand Name :
Effon
Model Number :
MS3392
Certification :
CE, ROSH, FCC, IP65 Ect
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
70000pcs/ month
Delivery Time :
1 day
Packaging Details :
one piece in one box
Product :
2D Bluetooth Barcode Scanner
Length :
60.0mm, Width: 37.8mm, Height:14.6mm
Weight :
30g
Electrical :
Power: DC5V Typical: 230mA DC5V
CPU :
32bit ARM CPU
Data storage :
100KB
Internal Battery :
Changeable 600mAh Li-ion Battery
barcode :
1d/ 2d
Description

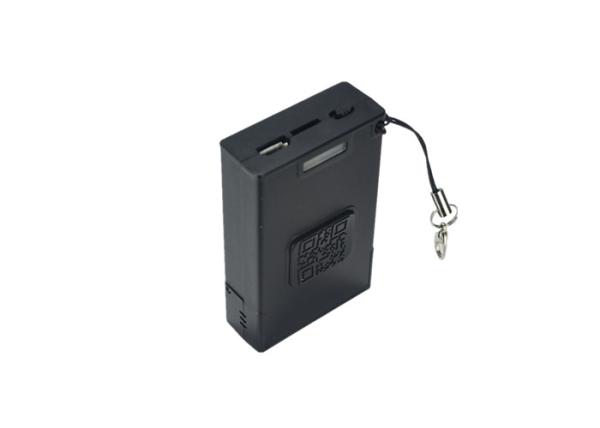

MS3392 2D Bluetooth Barcode Scanner

2D bluetooth barcode scanjacket MS3392 support Bluetooth Human Interface Device ( H-I-D) and SPP mode, MS3392-Human Interface Device ( H-I-D) is designed for iOS system. It no need install any driver or software to scan barcode in Mobile Phone just pairing bluetooth one time.


MS3392 2D Mini scanner, It can combine with smartphone as professional data collection terminal. It can scan 1D, 2D barcode into your smartphone via bluetooth, such as iPhone, Ipod, iPad, and all kinds of android smartphone. By using MS3392 barcode scanjacket, you do not need to buy expensive, heavy PDA anymore! The MS3392 Mini Scanner have two Type, HID mode and SPP Mode. HID Mode is designed for iOS system like IPhone and IPad. It no need install any driver or software to scan barcode in iPhone just pairing bluetooth one time. SPP Mode is designed for Android smartphone.You just install Postech Bluetooth Input driver to make barcode scanner as external keyboard. So it will compatible for any application in smartphone. This driver eliminate the work for system integration .
Specification MS3392 2D Bluetooth barcode reader

Mechanical

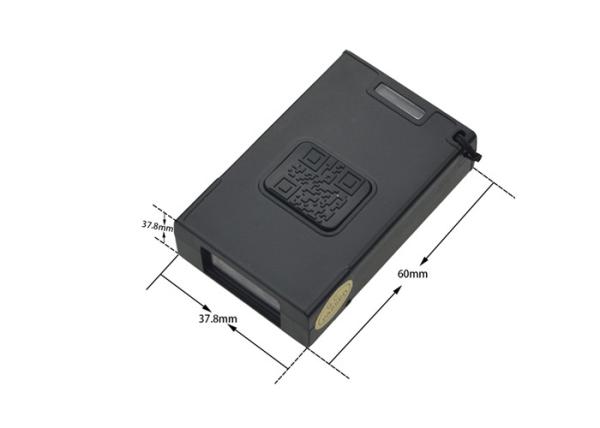

Length:60.0mm, Width: 37.8mm, Height:14.6mm
Weight 30g
Electrical Power: DC5V Typical: 230mA DC5V
CPU 32bit ARM CPU
Data storage 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
Working mode Bluetooth mode, USB mode, offline mode and RS232 mode(optional)
Scan mode Manual mode, Continuous, Host, Sense mode
Ambient illumination Sunlight: Up to 9,000ft-candles/96,890 lux







Scanner performance

Sensor: CMOS 1.2 Megapixel(1280 x 960) gray scale

Optical Resolution: High Density Field: 960 x 640, Wide Field: 960 x 640

Field of View: High Density Field: 30° horizontal by 20° vertical, Wide Field: 50° horizontal by 33.5° vertical

Focal Point: High Density Field: approximately 100 mm, Wide Field: approximately 115 mm

Pitch: ± 60° (from front to back)

Skew: ± 60° from plane parallel to symbol (side-to-side) Rotational Tolerance: ± 180°

Print Contrast Res.: 25% (1D symbologies) or 35% (2D symbologies) absolute dark/light reflectance differential, measured at 650 nm.

Target Beam: Single, blue targeting bar





Battery power

Internal Battery: Changeable 600mAh Li-ion Battery, Standby 5 days, working time after full charge with good decode as below:

Continuous trigger

scanning interval

 Decoding number Working time
1S 11800 3.3hours
5S 6200 8.6hours
10S 5900 16.4hours

Charge time: About 1.5hours


Barcode Type

1D barcode: Code 39, Code 128,BC 412, I2 of 5,UPC/EAN, Codabar, Code 93,Pharma code, PLANET, Post Net, Japanese Post, Australian Post, Royal Mail,Intelligent Mail, KIX Code

Stacked code:PDF417, Micro PDF417, GS1 Databar(Composite & Stacked)

2D barcode: Data Matrix (ECC0-200),QR Code, Micro QR Code, Aztec Code





Decoding depth & Max. resolution

(1 mil = 0.0254 mm)

3 mil Code 39 3.7 to 5.9"(95-150mm)
7.5 mil Code 39 2.2 to 8.0"(55-205mm)
13 mil UPC 2.0 to 10.8"(50-275mm)
4.2 mil Data Matrix 3.7 to 4.5"(95-115mm)
5 mil Data Matrix 3.7 to 5.1"(95-130mm)
6.3 mil Data Matrix 3.1 to 6.3"(80-160mm)
10 mil Data Matrix 1.6 to 7.7"(40-195mm)
20.8 mil Data Matrix 1.6 to 9.4"(40-240mm)

Note: working ranges are a combination of both the wide and high density fields.
Communication Class 3 Bluetooth HID, SPP with 20M distance, USB, RS232 cable(optional)

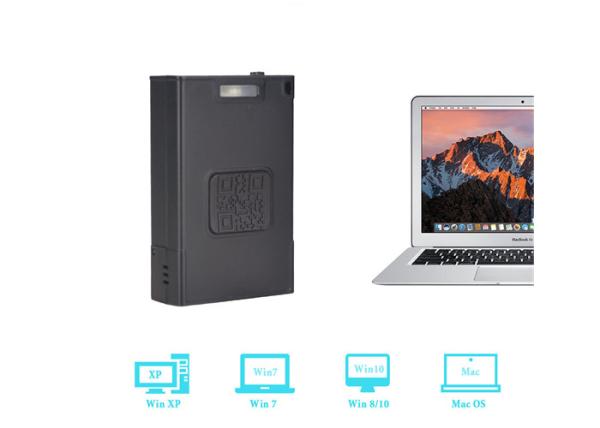

OS IOS, Android, Windows, Mac
Certificate CE, Rohs, FCC, EN60950, IEC60825, IP64, EMC, 1.2m drop test(500 times).
Laser safety IEC60825-1-2007, Class 1
Temperature

Operating: -20°C to 60°C (-4°F to 140°F);

Storage: -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 90% (non-condensing)







Accessories

1X MS3392-H

1X USB cable

1X scanner jacket

1X Lanyard

1X 3M double faced adhesive tape for Jacket
