Soft Elastic Silicone Coated Fiberglass Insulation Sleeving High Temperature
Soft Elastic Silicone Coated Fiberglass Insulation Sleeving High Temperature
Soft Elastic Silicone Coated Fiberglass Insulation Sleeving High Temperature
Soft Elastic Silicone Coated Fiberglass Insulation Sleeving High Temperature
Soft Elastic Silicone Coated Fiberglass Insulation Sleeving High Temperature
Soft Elastic Silicone Coated Fiberglass Insulation Sleeving High Temperature
Soft Elastic Silicone Coated Fiberglass Insulation Sleeving High Temperature
Soft Elastic Silicone Coated Fiberglass Insulation Sleeving High Temperature
Specifications
Brand Name :
Shenghe
Model Number :
Silicone Coated Fiberglass Sleeving
Certification :
SGS
Place of Origin :
China
MOQ :
100 Meters
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50000Meters/Day
Delivery Time :
5-7 Work days
Packaging Details :
Roll
Product Name :
Silicone Coated Fiberglass Sleeving
Inner Size :
6-70mm
Performance :
Fire-proof and High Temperature
Material :
Fiberglass and Silicone Rubber
Operating Temperature :
-65- 260 ° C
Type :
Heat Insulation Sleeving
Description

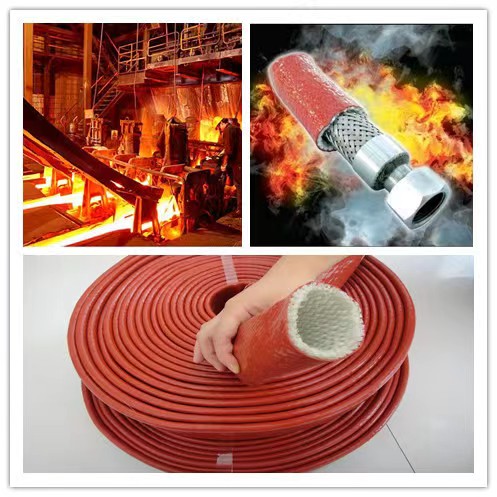

Soft Elastic Silicone Coated Fiberglass Insulation Sleeving High-Temperature Silicone Wire Sleeve

Description for High-Temperature Silicone Rubber Fiberglass Sleeving

High-temperature casing, also known as fire casing, silicone rubber glass fiber casing, is made of high-purity alkali-free glass fiber, and then the outer wall of the pipe is coated with silicone. After vulcanization, it can be used for a long time in the temperature range of -65°C - 300°C, and can maintain its soft elastic properties.

Operation Temperature

Continuous Operating Temperature: -65 ° C - 260 ° C

15-20 minutes: 1090 ° C

15-30 seconds: 1650 ° C

Technique Data

Description: Texturized fiberglass sleeve with silicone coating
Contents: 100% glass fiber and silicone rubber
Yarn type: 9 um
Internal Diameter : 30mm
Thermal Conductivity 0.035(w/(m.k)
Continuous Temp resistance: No more than 550 0C
Freeze temp: -50 0C
Loss on Ignition ≦3.52%
Chemical composition
SiO2 Al2O3 CaO MgO R2O Fe2O3
67.3±0.5 % 6.4±0.4% 9.6±0.3% 4.5±0.3 % 11.8~16.1% ≤0.4

Features:

It is Flame retardant, insulation, heat insulation, heat preservation, moisture-proof, noise reduction.

Application:

Other industries such as steel, metallurgy, shipbuilding, automotive, aerospace, military and chemical industries. Protect vehicle line speed and exhaust pipes.

Soft Elastic Silicone Coated Fiberglass Insulation Sleeving High Temperature

The Other Types Recommended:

Dia (mm) Internal Dia (mm) Length (m) Thickness(mm)
Silicone Glass Yarn
1 6 6.5 20 0.6 1.0
2 8 8.5 20 0.8 1.0
3 10 10.5 20 0.8 1.0
4 12 12.5 20 0.8 1.2
5 15 15.5 20 0.9 1.2
6 20 20.5 20 0.9 1.4
7 22 22.5 20 0.9 1.4
8 25 25.5 20 1 1.6
9 30 30.5 20 1.1 1.8
10 32 32.5 20 1.2 1.8
11 35 35.5 20 1.1 2
12 40 40.5 20 1.2 2.1
13 45 45.5 20 1.2 2.2
14 50 51 20 1.2 2.3
15 55 56 20 1.3 2.4
16 60 61 20 1.3 2.5
17 65 66 20 1.3 2.6
18 70 71 20 1.4 2.7
