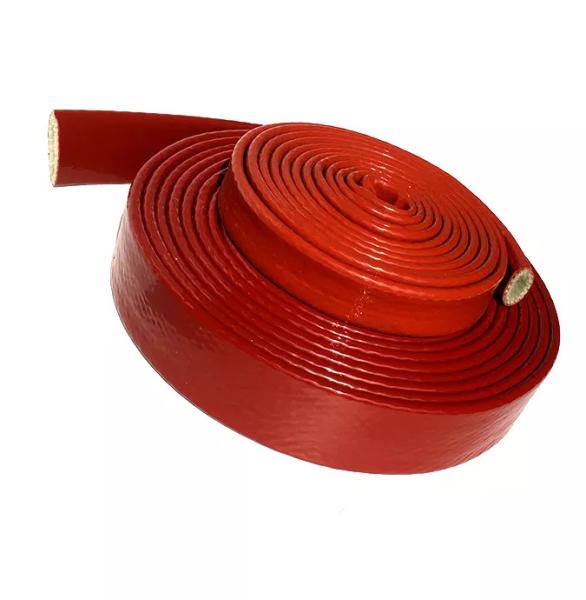

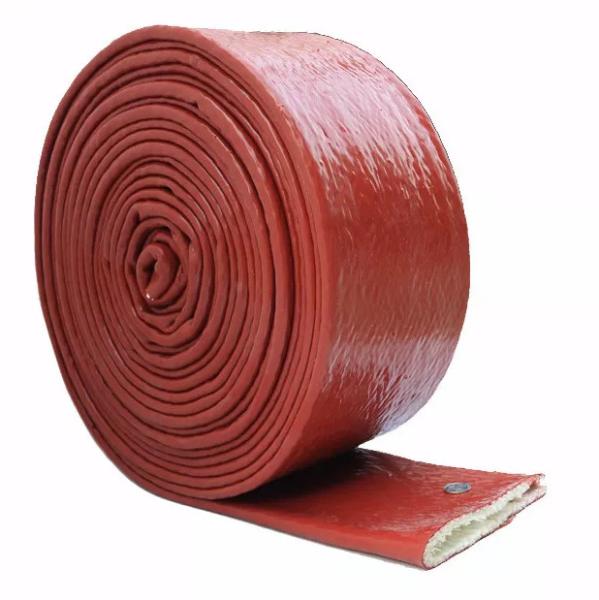

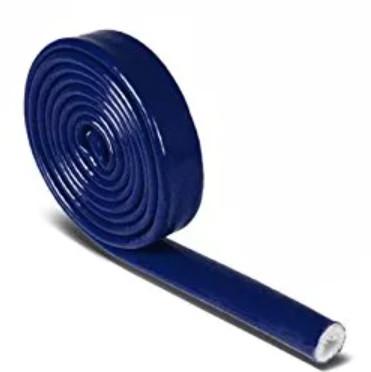

20m 66ft Silicone Coated Fiberglass Heat Sleeve 15mm ID To Protect Fuel Lines
20m 66ft Silicone Coated Fiberglass Heat Sleeve 15mm ID To Protect Fuel Lines
20m 66ft Silicone Coated Fiberglass Heat Sleeve 15mm ID To Protect Fuel Lines
20m 66ft Silicone Coated Fiberglass Heat Sleeve 15mm ID To Protect Fuel Lines
20m 66ft Silicone Coated Fiberglass Heat Sleeve 15mm ID To Protect Fuel Lines
20m 66ft Silicone Coated Fiberglass Heat Sleeve 15mm ID To Protect Fuel Lines
Specifications
Brand Name :
Shenghe
Model Number :
Silicone Coated Fiberglass Sleeving
Certification :
ROSH SGS
Place of Origin :
China
MOQ :
100 Meters
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50000Meters/Day
Delivery Time :
5-7 Work days
Packaging Details :
Roll
Product Name :
Heat Resistant Hose and Cable Protective Pyrojacket Fire Sleeve
Size :
6-150mm
Performance :
Fire-proof and High Temperature
Aging Test :
260ºC,6 hrs without crackle
Continuous Operating Temperature :
-10ºC+200ºC
Name :
Hose fire sleeve
Application :
Used to Protect Hoses, Wires And Cables
Flammability :
Impede heat radiation of flame
Description

20m 66ft Silicone Coated Fiberglass Heat Sleeve 15mm ID Used To Protect Fuel Lines

Description for High-Temperature Silicone Rubber Fiberglass Sleeving

We coat an extra thick special formulation of silicone rubber on our texturized fiberglass sleeves. It can protect industrial hoses and lines from molten metals, slag, welding splatter, electrical or grinding sparks, and contamination. It also provides protection from ozone, UV, and abrasion. The standard color of the coating is red-oxide, but custom colors such as blue, grey, black, yellow, and green are available

Inner diameter 10mm-115mm
Color Red, black, other colors can be made according to customer's need, nylon fastening optional color: white or black
Work temperature Can used continuously at - 75 ° C to 260 ° C, short moment resistance can be up to 1650 ° C
Nominal voltage 7kv--25 kV.
Product properties Fire prevention, flame retardant, heat insulation, insulation, anti-aging, prevent splash

Operation Temperature

Continuous Operating Temperature: -65 ° C - 260 ° C

15-20 minutes: 1090 ° C

15-30 seconds: 1650 ° C

Technique Data

Description: Texturized fiberglass sleeve with silicone coating
Contents: 100% glass fiber and silicone rubber
Yarn type: 9 um
Internal Diameter : 30mm
Thermal Conductivity 0.035(w/(m.k)
Continuous Temp resistance: No more than 550 0C
Freeze temp: -50 0C
Loss on Ignition ≦3.52%
Chemical composition
SiO2 Al2O3 CaO MgO R2O Fe2O3
67.3±0.5 % 6.4±0.4% 9.6±0.3% 4.5±0.3 % 11.8~16.1% ≤0.4

Features:

Advanced production equipment

ISO 14000 / ISO 9000 / Quality certificate

Strict quality inspection, Strong R&D team

Environmental friendly without pollution

10 years manufacturing experience, strong and experienced export team

Application:

1. Fire-proof sleeving is used to protect fuel lines, hydraulic and oil lines from heat and to prolong the life of wiring and hoses in case of a fire

2. Fire-proof sleeving is mainly used for cable insulation protection in high-temperature places such as steel plants

3. Fire protection pipes are widely used in high-temperature areas of electric power, chemical industry, metallurgy, shipbuilding, machinery manufacturing, and other industries

20m 66ft Silicone Coated Fiberglass Heat Sleeve 15mm ID To Protect Fuel Lines20m 66ft Silicone Coated Fiberglass Heat Sleeve 15mm ID To Protect Fuel Lines

Detail Images

20m 66ft Silicone Coated Fiberglass Heat Sleeve 15mm ID To Protect Fuel Lines

The Other Types Recommended:

Dia (mm) Internal Dia (mm) Length (m) Thickness(mm)
Silicone Glass Yarn
1 6 6.5 20 0.6 1.0
2 8 8.5 20 0.8 1.0
3 10 10.5 20 0.8 1.0
4 12 12.5 20 0.8 1.2
5 15 15.5 20 0.9 1.2
6 20 20.5 20 0.9 1.4
7 22 22.5 20 0.9 1.4
8 25 25.5 20 1 1.6
9 30 30.5 20 1.1 1.8
10 32 32.5 20 1.2 1.8
11 35 35.5 20 1.1 2
12 40 40.5 20 1.2 2.1
13 45 45.5 20 1.2 2.2
14 50 51 20 1.2 2.3
15 55 56 20 1.3 2.4
16 60 61 20 1.3 2.5
17 65 66 20 1.3 2.6
18 70 71 20 1.4 2.7
