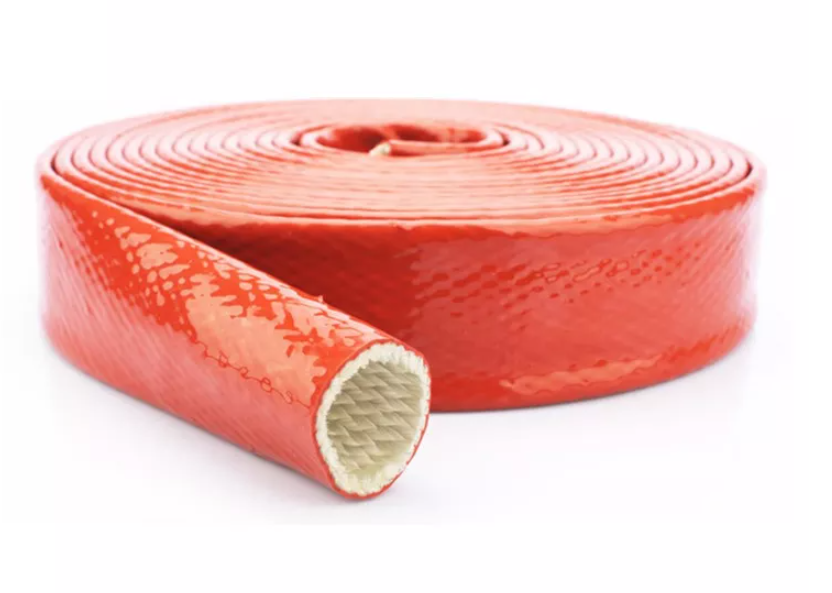

High Temperature Protection Glass Fiber Braided with Silicone Rubber Coated
High Temperature Protection Glass Fiber Braided with Silicone Rubber Coated
High Temperature Protection Glass Fiber Braided with Silicone Rubber Coated
High Temperature Protection Glass Fiber Braided with Silicone Rubber Coated
High Temperature Protection Glass Fiber Braided with Silicone Rubber Coated
High Temperature Protection Glass Fiber Braided with Silicone Rubber Coated
Specifications
Brand Name :
Shenghe
Model Number :
Silicone Coated Fiberglass Sleeving
Certification :
ROSH SGS
Place of Origin :
China
MOQ :
100 Meters
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50000Meters/Day
Delivery Time :
5-7 Work days
Packaging Details :
Roll
Product Name :
Heat Resistant Hose and Cable Protective Pyrojacket Fire Sleeve
Size :
6-150mm
Performance :
Fire-proof and High Temperature
Aging Test :
260ºC,6 hrs without crackle
Continuous Operating Temperature :
-10ºC+200ºC
Name :
Hose fire sleeve
Application :
Used to Protect Hoses, Wires And Cables
Flammability :
Impede heat radiation of flame
Description

High-Temperature Protection Glass Fiber Braided with Silicone Rubber Coated Hose Insulation Fire Retardant Sleeve

Description for High-Temperature Silicone Rubber Fiberglass Sleeving

The extra thick special formulation of silicone rubber on our fire sleeve sheds molten metals, slag, welding splatter, electrical or grinding sparks, and contamination. Firesleeve also provides protection from ozone, UV, and abrasion.
The standard color of fire sleeve is red-oxide, but custom colors such as blue, grey, black, yellow, and green are available; great for identifying hose and cable use when the sleeve is installed. Firesleeve is the standard high-temperature and molten splash pyro protection jacket and sleeve for hose & cable.

Sleeve material Fiberglass fiber
Coated material Silicone rubber
Working Temperature -50℃ to 200℃
Temperature endurance 265℃+(-)2℃
Aging Test 6 hours without crackle
Cold bend Without crackle
Voltage Rating 4.0KV,7.0KV
Flammability VW-1
Standard Color White, Black
Colored Available
Certification UL, ROHS,Reach

Operation Temperature

Continuous Operating Temperature: -65 ° C - 260 ° C

15-20 minutes: 1090 ° C

15-30 seconds: 1650 ° C

Technique Data

Description: Texturized fiberglass sleeve with silicone coating
Contents: 100% glass fiber and silicone rubber
Yarn type: 9 um
Internal Diameter : 30mm
Thermal Conductivity 0.035(w/(m.k)
Continuous Temp resistance: No more than 550 0C
Freeze temp: -50 0C
Loss on Ignition ≦3.52%
Chemical composition
SiO2 Al2O3 CaO MgO R2O Fe2O3
67.3±0.5 % 6.4±0.4% 9.6±0.3% 4.5±0.3 % 11.8~16.1% ≤0.4

Features:

1) Self-extinguishing thick-walled insulating sleeve for excellent thermal protection
2) Sheds molten metal splash instantly and resists direct flame impingement
Lightweight and highly flexible composite protective sleeve with exceptional elasticity
3) Will not melt, burn, support combustion, or emit toxic smoke
4) Resistant to hydraulic fluids, fuels, lubricating oil, and water
5) Extends service life of assemblies and provides personnel protection

Application:

Industrial hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires and cables from exposure to high temperature, heat, flame, fire, and pyro exposure

High Temperature Protection Glass Fiber Braided with Silicone Rubber Coated

The Other Types Recommended:

Dia (mm) Internal Dia (mm) Length (m) Thickness(mm)
Silicone Glass Yarn
1 6 6.5 20 0.6 1.0
2 8 8.5 20 0.8 1.0
3 10 10.5 20 0.8 1.0
4 12 12.5 20 0.8 1.2
5 15 15.5 20 0.9 1.2
6 20 20.5 20 0.9 1.4
7 22 22.5 20 0.9 1.4
8 25 25.5 20 1 1.6
9 30 30.5 20 1.1 1.8
10 32 32.5 20 1.2 1.8
11 35 35.5 20 1.1 2
12 40 40.5 20 1.2 2.1
13 45 45.5 20 1.2 2.2
14 50 51 20 1.2 2.3
15 55 56 20 1.3 2.4
16 60 61 20 1.3 2.5
17 65 66 20 1.3 2.6
18 70 71 20 1.4 2.7
