Specifications
Brand Name :
EIKTO
Model Number :
EK-CP-0900
Certification :
CE/UL/UN38.3/SDS
Place of Origin :
Anhui China
MOQ :
One piece
Price :
Negotiable
Payment Terms :
EFT
Supply Ability :
+9999
Delivery Time :
Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Packaging Details :
Standard safety industrial packaging
Rated capacity :
175Ah
Rated voltage :
25.6V
Battery pack size :
615*625mm*205mm
Weight of battery pack :
90kg
Description

25.6v175ah rechargeable li ion battery pack

Technical Parameters

NO. Item Specification Remark
1 Size 615mm*625mm*205mm /
2 Combination mode 1P8S /
3 Rated capacity 175Ah 25±2℃,1.0C
4 Nominal voltage 25.6V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈90kg /
7 Total power of module 4.48kWh /
8 Maximum charging voltage 28.8V /
9 Maximum continuous charging current 0.75C 25±5℃
10 Discharge cut-off voltage 21.6V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life ≥3000 times 80%Capacity retention 1C/1C 25℃

Product Description

1. Ejd120 lithium iron phosphate battery pack manufactured by EIKTO is a battery pack specially for export and has passed relevant export qualification certification, such as ce/ul;

2. At the same time, the same type of battery pack has been verified by the market since 2017, and the product maturity is high;

3. This battery pack is independently developed by EIKTO, and the battery cell, module and pack are all produced by our company, so as to ensure the quality control of the whole industrial chain;

4. The battery management system is specially developed for forklifts, which is perfectly matched with forklift motors and electric controls, and seamlessly connected with the whole vehicle through communication methods such as can/rs485;

5. The battery pack is IP54 waterproof and can be equipped with a battery heating system to make the battery work normally in a low temperature environment. The internal structure of the battery pack is composed of sheet metal and flame-retardant materials, which greatly reduces the risk of battery use.

6. This battery has the advantages of strong stability, high safety, long cycle life and customization.

Product Advantages

1. Reliable structure: reasonable structural layout makes the overall structure of the battery pack firm and reliable;

2. Electrical reliability: reasonable electrical design layout makes the battery pack function balanced and stable;

3. Safety design: it is composed of sheet metal and flame retardant materials, and adopts a high safety lithium iron phosphate material system;

4. It can realize multiple functions: various functions can be customized according to customer needs.

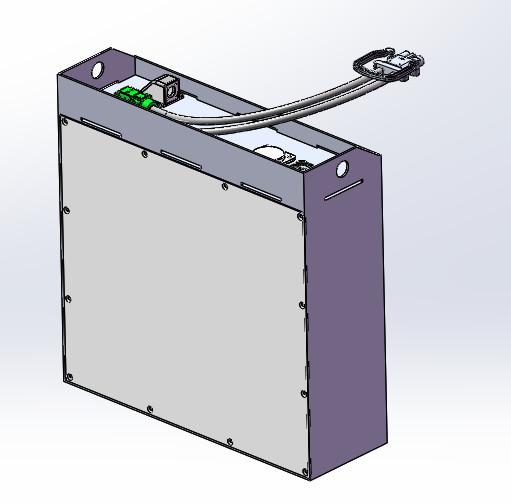

Samples Show

25.6v 175ah Rechargeable Li Ion Battery Pack Electric Lawn Mower Battery

Application

The products are widely used in industrial vehicles, engineering vehicles and other fields.

25.6v 175ah Rechargeable Li Ion Battery Pack Electric Lawn Mower Battery25.6v 175ah Rechargeable Li Ion Battery Pack Electric Lawn Mower Battery25.6v 175ah Rechargeable Li Ion Battery Pack Electric Lawn Mower Battery

Packaging & Delivery

1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.

Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
