Specifications
Brand Name :
EIKTO
Model Number :
EK-CC-2577
Certification :
CE/UL/UN38.3/SDS
Place of Origin :
Anhui China
MOQ :
One piece
Price :
Negotiable
Payment Terms :
EFT
Supply Ability :
+9999
Delivery Time :
Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Packaging Details :
Standard safety industrial packaging
Product Name :
msda2 standard lithium iron phosphate battery pack without counterweight
Product model :
EK-CC-2577
Rated capacity :
270Ah
Rated voltage :
25.6V
Battery pack size :
560mm*263mm*510mm
Weight of battery pack :
90kg
Description

IP54 MSDA2 25.6V270Ah Standard Battery System Without Counterweight EK-CC-2577~

Technical Parameters

NO. Item Specification Remark
1 Size 560mm*263mm*510mm /
2 Combination mode 2P8S /
3 Rated capacity 270Ah 25±2℃,1.0C
4 Nominal voltage 25.6V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈90kg /
7 Total power of module 6.912kwh /
8 Maximum charging voltage 28.8V /
9 Maximum continuous charging current 0.75C 25±5℃
10 Discharge cut-off voltage 21.6V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life

≥3000 times

80%Capacity retention

1C/1C 25℃

Product Description

1. The msda2 non counterweight standard battery pack manufactured by EIKTO is the smallest size battery pack under this specification capacity.

2. This battery pack is independently developed by EIKTO. The internal battery pack is realized by our M8 aluminum module through internal series and parallel connection.

3. Battery system management and control is mainly through BMS and other related electrical components to meet the needs of customers on forklifts

4. The battery pack is IP54 waterproof and can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the battery pack is made of many refractory materials, which greatly reduces the risk of battery use.

6. Our battery has the advantages of strong stability, high safety, long cycle life and multiple functions.

Product Advantages

1. Reliable structure: reasonable structural layout makes the overall structure of the battery pack firm and reliable;

2. Electrical reliability: reasonable electrical design layout makes the battery pack function balanced and stable;

3. Safety design: many fire-retardant and other safety layouts are arranged inside the system, and high safety lithium iron phosphate material system is adopted;

4. It can realize multiple functions: various functions can be customized according to customer needs.

Samples Show

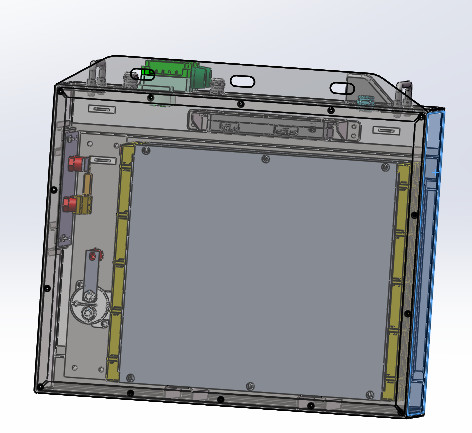

25.6V 270Ah Electric Lift Truck Batteries IP54 560mmx263mmx510mm

Application

The products are widely used in industrial vehicles, engineering vehicles and other fields.25.6V 270Ah Electric Lift Truck Batteries IP54 560mmx263mmx510mm25.6V 270Ah Electric Lift Truck Batteries IP54 560mmx263mmx510mm25.6V 270Ah Electric Lift Truck Batteries IP54 560mmx263mmx510mm
