EI 250 Reactors Silicon Steel Lamination Core Three Phase 0.5MM
EI 250 Reactors Silicon Steel Lamination Core Three Phase 0.5MM
EI 250 Reactors Silicon Steel Lamination Core Three Phase 0.5MM
EI 250 Reactors Silicon Steel Lamination Core Three Phase 0.5MM
EI 250 Reactors Silicon Steel Lamination Core Three Phase 0.5MM
EI 250 Reactors Silicon Steel Lamination Core Three Phase 0.5MM
EI 250 Reactors Silicon Steel Lamination Core Three Phase 0.5MM
EI 250 Reactors Silicon Steel Lamination Core Three Phase 0.5MM
EI 250 Reactors Silicon Steel Lamination Core Three Phase 0.5MM
EI 250 Reactors Silicon Steel Lamination Core Three Phase 0.5MM
Specifications
Brand Name :
CENTERSKY or Designed Accoeding to customers' demand
Model Number :
Single Phase EI 35, EI 41, EI 48, EI 66, EI 75, EI 85.8
Certification :
ISO, ROHS
Place of Origin :
Jiangyin, Jiangsu, China
MOQ :
3000 KGS
Price :
USD 1000 KG ---USD 1600 KG
Payment Terms :
L/C, T/T, D/P
Supply Ability :
15000 MT Per Year
Delivery Time :
5-18 DAYS
Packaging Details :
Standard Packing, 500-1000kg One Pallet
Material :
CRNGO Electrical Steel Materia
Thickness :
0.5mm thickness
Product Name :
Three Phase EI 250 Reactors EI Sheet Silicon Steel EI Lamination Core
Key Word :
Silicon Steel Lamination Core
Packaging :
Cartons/Pallets
Sizes :
Three Phase EI 85.8, EI 100, EI 120, EI 150, EI 200, EI 300, EI 3600
Employee :
80
Company History :
Established in 2000
Equipments :
High Speed Punching Machines, Manual Punching Machines
Grade Material :
M400-50A, M330-50A, M250-50A and others
Holes :
4 holes or 6 holes
Maximum sizes :
EI 360 in Single Phase, EI 600 in Three Phase
Allealed Product :
Available
Description

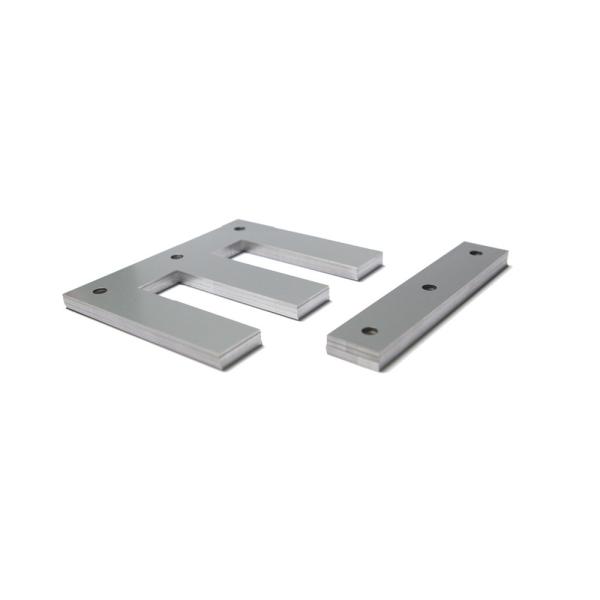

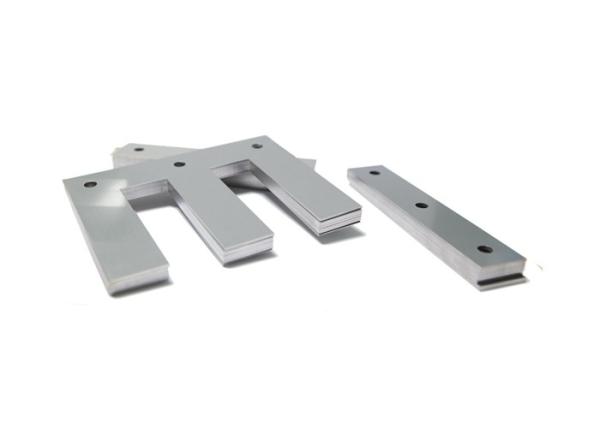

Three Phase EI 250 Reactors EI Sheet Silicon Steel EI Lamination Core

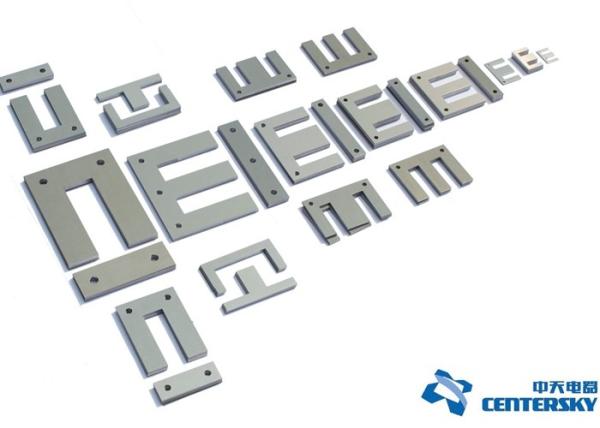

Silicon Steel Sheet Transformer Core is made by the silicon steel strip. The model of Silicon Steel Sheet Transformer Core in standard sizes is from EI 28 to EI -240, and the model of Silicon Steel Sheet Transformer Core in non-standard sizes is from EI-36 to EI-360. the gap sizes of transformer lamination core can be customized. Three -phase Silicon Steel Sheet Transformer Core is made by the silicon steel strip. The model of three-phase Silicon Steel Sheet Transformer Core is from three-phase (20) to three phase (100), and the hole size is from Φ4.5 to Φ14, The gap sizes of transformer lamination core can be customized. UI lamination is made by the silicon steel strip.the model of UI lamination is from UI-30 to UI-100, and the hole size is from Φ 8 to Φ 14. The gap sizes of transformer lamination core can be customized.

Introduction:
Single phase EI core is made by the silicon steel strip. The model of EI lamination in standard sizes is from

EI-30 to EI-360.The gap sizes of transformer lamination core can be customized.

Catalogue:

Type a b c d e holes aperture
EI- 28 28 4 6 8 17
EI-35 35 5 7.5 10 19.5
EI-41 41 6 8 13 21
EI-42 42 7 7 7 14
EI-48 48 8 8 16 24
EI-50 50 8 9 16 25.5
EI-57 57 9.5 9.5 19 28.5 4 4
EI-60 60 10 10 20 30 4 5
EI-66 66 11 11 22 33 4 4
EI-75 75 12.5 12.5 25 37.5 4 5.5
EI-76.2 76.2 12.7 12.7 25.4 38.1 4 5
EI-78 78 13 13 26 39 4 5
EI-84 84 14 14 28 41 4 6
EI-85.8 85.8 14.3 14.3 28.6 42.9 4 5
EI-96 96 16 16 32 48 4 6
EI-105 105 17.5 17.5 35 52.5 4 6
EI-108 108 18 18 36 54 4 5.5
EI-114 114 19 19 38 57 4 6
EI-120 120 20 20 40 60 4 7
EI-126 126 21 21 42 63 4 7
EI-133.2 133.2 22.2 22.2 44.4 66.6 4 7
EI-150 150 25 25 50 75 4 8
EI-152.4 152.4 25.4 25.4 50.8 76.2 4 8
EI-162 162 27 27 54 81 4 10
EI-168 168 28 28 50 84 4 10
EI-171 171 28.5 28.5 57 85.5 4 10
EI-180 180 30 30 60 90 4 10
EI-190.5 190.5 31.75 31.75 63.5 95.25 4 10
EI-192 192 32 32 64 96 4 10
EI-210 210 35 35 70 105 4 10
EI-228 228 38 38 76 114 4 10
EI-240 240 40 40 80 120 4 10
EI-254 254 48 55 48 164 4 12
EI-270 270 45 45 90 135 4 12
EI-228 228 38 38 76 114 4 10
EI-300 300 50 50 100 150 4 12
EI-360 360 60 60 120 180 4 12

EI 250 Reactors Silicon Steel Lamination Core Three Phase 0.5MM

Type a b c d e holes aperture(Φ)
UI-20 60 20 20 60 4 6
UI-22 66 22 22 66 4 6,8
UI-25 75 25 25 75 4 6,8
UI-27 81 27 27 81 4 6,8
UI-28 84 28 28 84 4 8
UI-30 90 30 30 90 4 8
UI-32 96 32 32 96 4 8
UI-35 105 35 35 105 4 8
UI-38 114 38 38 114 4 8
UI-40 120 40 40 120 4 10
UI-44 132 44 44 132 4 8,10
UI-45 135 45 45 135 4 10
UI-50 150 50 50 150 4 8,10
UI-60 180 60 60 180 4 10,12
UI-70 210 70 70 210 4 13
UI-80 240 80 80 240 4 14
UI-90 270 90 90 270 4 14
UI-100 300 100 100 300 4 16

EI 250 Reactors Silicon Steel Lamination Core Three Phase 0.5MM

Type a b c d e Holes Aperture(Φ)
3PEI-17.5 87.5 17.5 17.5 17.5 52.5 4 6
3PEI-20 100 20 20 20 50 6 6
3PEI-20* 100 20 20 20 60 4,6 6
3PEI-22 110 22 22 22 66 4 8
3PEI-22.2 122 22 28 22.2 61 4 6
3PEI-25 125 25 25 25 75 4 8
3PEI-27 135 27 27 27 81 4 8
3PEI-28 140 28 28 28 84 4 8
3PEI-29 145 29 29 29 72.5 4 8
3PEI-30 150 30 30 30 90 6 7
3PEI-30.5 152 30.5 30.5 30.5 76.25 6 6
3PEI-32 160 32 32 32 80 4 8
3PEI-32* 160 32 32 32 96 4 8
3PEI-35 175 35 35 35 105 4 8
3PEI-36 180 36 36 36 90 6 8
3PEI-38 190 38 38 38 95 4,6 8,10.5
3PEI-38* 190 38 38 38 114 6 8
3PEI-40 200 40 40 40 100 4 10.5
3PEI-40* 200 40 40 40 120 4,6 10
3PEI-44 220 44 44 44 132 6 8,10.5,12.5
3PEI-45 225 45 45 45 135 4 10
3PEI-50 250 50 50 50 150 4,6 8,10.5
3PEI-56 280 56 56 56 168 4 12
3PEI-60 300 60 60 60 180 6 12
3PEI-61* 288 61.3 52 61.3 144 4,6 12
3PEI-61 305 61 61 61 152.5 4,6 14
3PEI-70 350 70 70 70 210 6 13
3PEI-80 400 80 80 80 240 6 14
3PEI-90 450 90 90 90 270 6 14
3PEI-100 500 100 100 100 300 6 16
3PEI-120 600 120 120 120 320 6 16

EI 250 Reactors Silicon Steel Lamination Core Three Phase 0.5MM

Company information:

Jiangyin Centersky was established in 2000. Main business is manufacturing silicon steel EI lamination, UI lamination, cutting lamination.

Our capacity is 15000mt per year. We have 15 years' export experience.

FAQ:

1. Q: Can I get some samples?

A: Yes, sample order is available for quality checking and market test.

1-10kg of sample is free.

2. Q: What's the delivery time?

A: Sample order needs 2-3 days. Formal order needs 8-15 days.

3. Q: What's your payment terms?

A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.

4. Q: Do you have the prodcts in stock?

A: Yes, we will keep some general ones in stock.

5. Q: Can I mix different models in one container?

A: Yes, different models can be mixed up.
