Specifications
Brand Name :
CENTERSKY or NO LOGO
Model Number :
EI 96, EI 114, EI 126, EI 133.2, EI 150, EI 152.4, EI 180,
Certification :
ISO, ROHS
Place of Origin :
Jiangyin, Jiangsu, China
MOQ :
3000 KGS
Price :
1.0usd/kg
Payment Terms :
L/C, T/T, D/P
Supply Ability :
15000 MT Per Year
Delivery Time :
5-18 DAYS
Packaging Details :
Standard Packing, 500-1000kg One Pallet
Material :
CRNGO E;lectrical Steel Material
Thickness :
0.5mm thickness
Product Name :
EI 192 CRNGO Single Phase Ei Transformer Iron Core
Key Word :
Ei Transformer Core
Packaging :
Cartons/Pallets
Sizes :
Three Phase EI 85.8, EI 100, EI 120, EI 150, EI 200, EI 300, EI 3600
Capacity :
15000mt per year
Company History :
Established in 2000
Equipments :
High Speed Punching Machines, Manual Punching Machines
Grade Material :
50WW800, 35WW440,
Holes :
2 holes, 4 holes, 6 holes
Maximum sizes :
EI 360 in Single Phase, EI 600 in Three Phase
Allealed Product :
Available
Delivery time :
12-16 days for 25 tons
Description

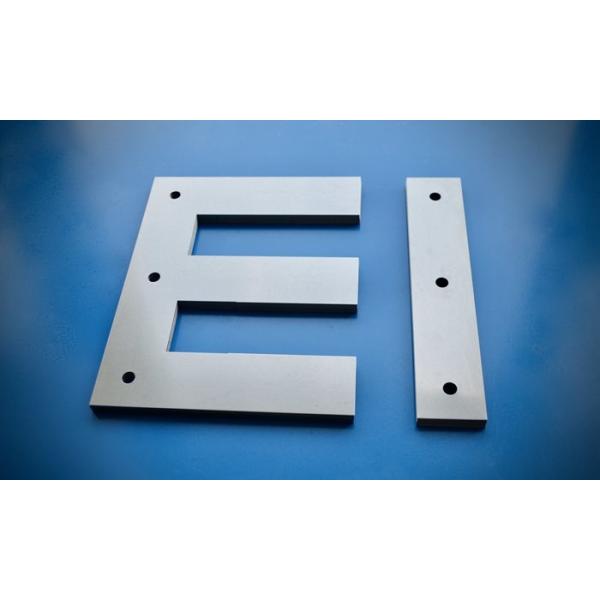

EI 192 CRNGO Single Phase Ei Transformer Iron Core

Transformers are used to change AC voltage levels, such transformers being termed step-up or step-down type to increase or decrease voltage level, respectively. Transformers can also be used to provide galvanic isolation between circuits as well as to couple stages of signal-processing circuits. Since the invention of the first constant-potential transformer in 1885, transformers have become essential for the transmission, distribution, and utilization of alternating current electric power.A wide range of transformer designs is encountered in electronic and electric power applications. Transformers range in size from RF transformers less than a cubic centimeter in volume, to units weighing hundreds of tons used to interconnect the power grid.

Application:

Main application: auto transformers, control transformers, voltage stabilizers, line reactors, inductors, resistors and etc.

Introduction:
Single phase EI core is made by the silicon steel strip. The model of EI lamination in standard sizes is from

EI-30 to EI-360.The gap sizes of transformer lamination core can be customized.

Catalogue:

Type a b c d e holes aperture
EI- 28 28 4 6 8 17
EI-35 35 5 7.5 10 19.5
EI-41 41 6 8 13 21
EI-42 42 7 7 7 14
EI-48 48 8 8 16 24
EI-50 50 8 9 16 25.5
EI-57 57 9.5 9.5 19 28.5 4 4
EI-60 60 10 10 20 30 4 5
EI-66 66 11 11 22 33 4 4
EI-75 75 12.5 12.5 25 37.5 4 5.5
EI-76.2 76.2 12.7 12.7 25.4 38.1 4 5
EI-78 78 13 13 26 39 4 5
EI-84 84 14 14 28 41 4 6
EI-85.8 85.8 14.3 14.3 28.6 42.9 4 5
EI-96 96 16 16 32 48 4 6
EI-105 105 17.5 17.5 35 52.5 4 6
EI-108 108 18 18 36 54 4 5.5
EI-114 114 19 19 38 57 4 6
EI-120 120 20 20 40 60 4 7
EI-126 126 21 21 42 63 4 7
EI-133.2 133.2 22.2 22.2 44.4 66.6 4 7
EI-150 150 25 25 50 75 4 8
EI-152.4 152.4 25.4 25.4 50.8 76.2 4 8
EI-162 162 27 27 54 81 4 10
EI-168 168 28 28 50 84 4 10
EI-171 171 28.5 28.5 57 85.5 4 10
EI-180 180 30 30 60 90 4 10
EI-190.5 190.5 31.75 31.75 63.5 95.25 4 10
EI-192 192 32 32 64 96 4 10
EI-210 210 35 35 70 105 4 10
EI-228 228 38 38 76 114 4 10
EI-240 240 40 40 80 120 4 10
EI-254 254 48 55 48 164 4 12
EI-270 270 45 45 90 135 4 12
EI-228 228 38 38 76 114 4 10
EI-300 300 50 50 100 150 4 12
EI-360 360 60 60 120 180 4 12

EI 192 CRNGO EI Transformer Lamination Single Phase Crgo Transformer Lamination Core

Company information:

Jiangyin Centersky was established in 2000. Main business is manufacturing silicon steel EI lamination, UI lamination, cutting lamination.

Our capacity is 15000mt per year. We have 15 years' export experience.

EI 192 CRNGO EI Transformer Lamination Single Phase Crgo Transformer Lamination Core

Worlshop:

EI 192 CRNGO EI Transformer Lamination Single Phase Crgo Transformer Lamination Core

FAQ:

1. Q: Can I get some samples?

A: Yes, sample order is available for quality checking and market test.

1-10kg of sample is free.

2. Q: What's the delivery time?

A: Sample order needs 2-3 days. Formal order needs 8-15 days.

3. Q: What's your payment terms?

A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.

4. Q: Do you have the prodcts in stock?

A: Yes, we will keep some general ones in stock.

5. Q: Can I mix different models in one container?

A: Yes, different models can be mixed up.
